4.8 Mechanical Tests
Environmental
Testing
Standard Parameter
Vibration,
sinusodial
IEC 60068-2-6 Frequency Range 10 - 2000 Hz
Amplitude underneath
crossover frequencies
1.5 mm
Acceleration 10 g
Test duration / Axis 150 min
Vibration, broad
band
IEC 60068-2-64 Frequency range
VCXG (.XC / .PTP) / VCXU
VCXG.I (.PTP) / .XT
20 - 1000 Hz
5 - 2000 Hz
Acceleration RMS 10 g
Test duration / Axis 300 min
Shock IEC 60068-2-27 Puls time 11 ms / 6 ms
Acceleration 50 g / 100 g
Number of shocks per
direction and axis
10
Bump IEC60068-2-29 Pulse Time 2 ms
Acceleration 100 g
Number of bumps per
direction and axis
5000

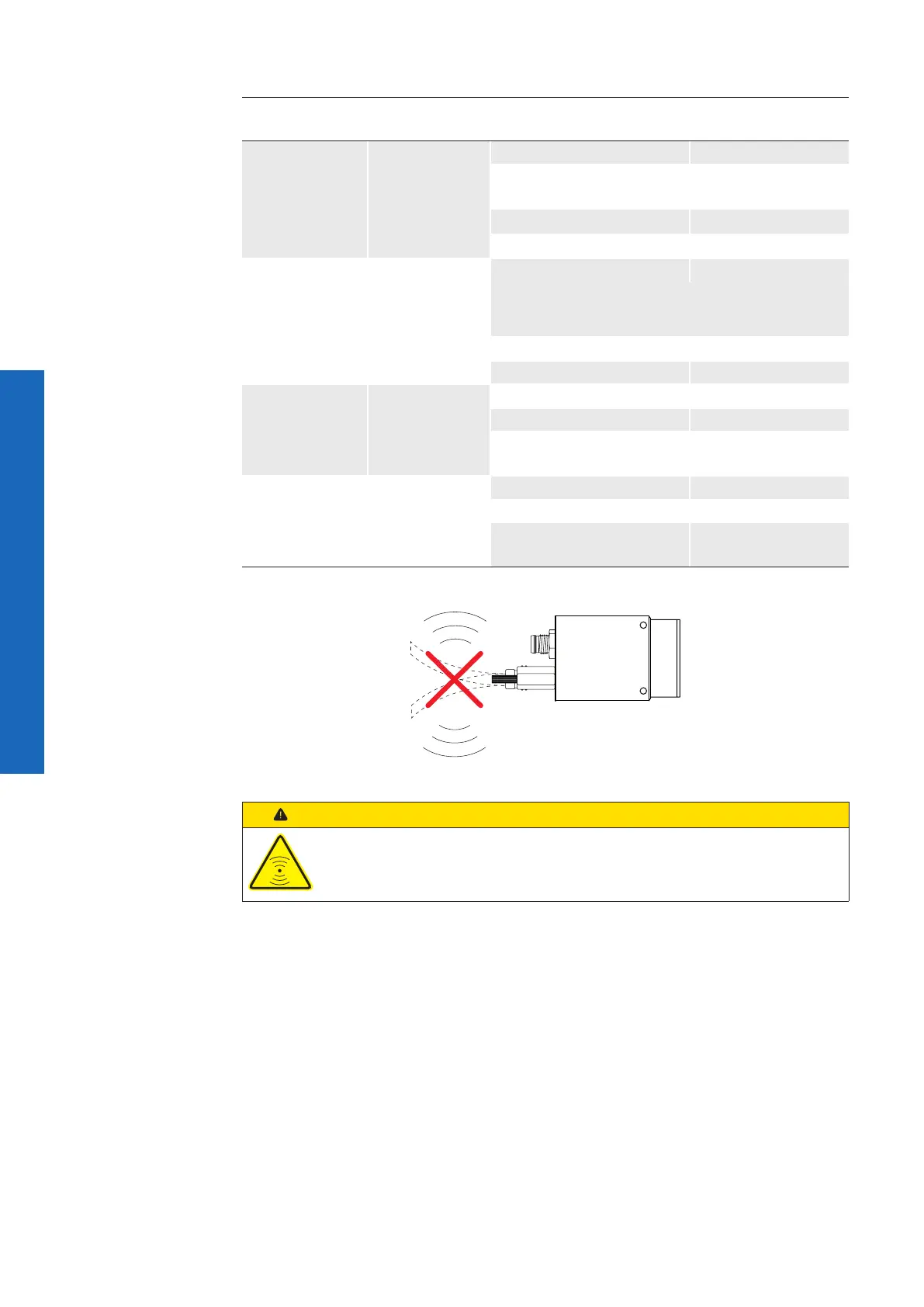

Vibrations
Caution!
Vibration that is not decoupled can damage the ports on the camera.
Cables have to be xed in a way that vibrations are not transmitted into the
camera.
