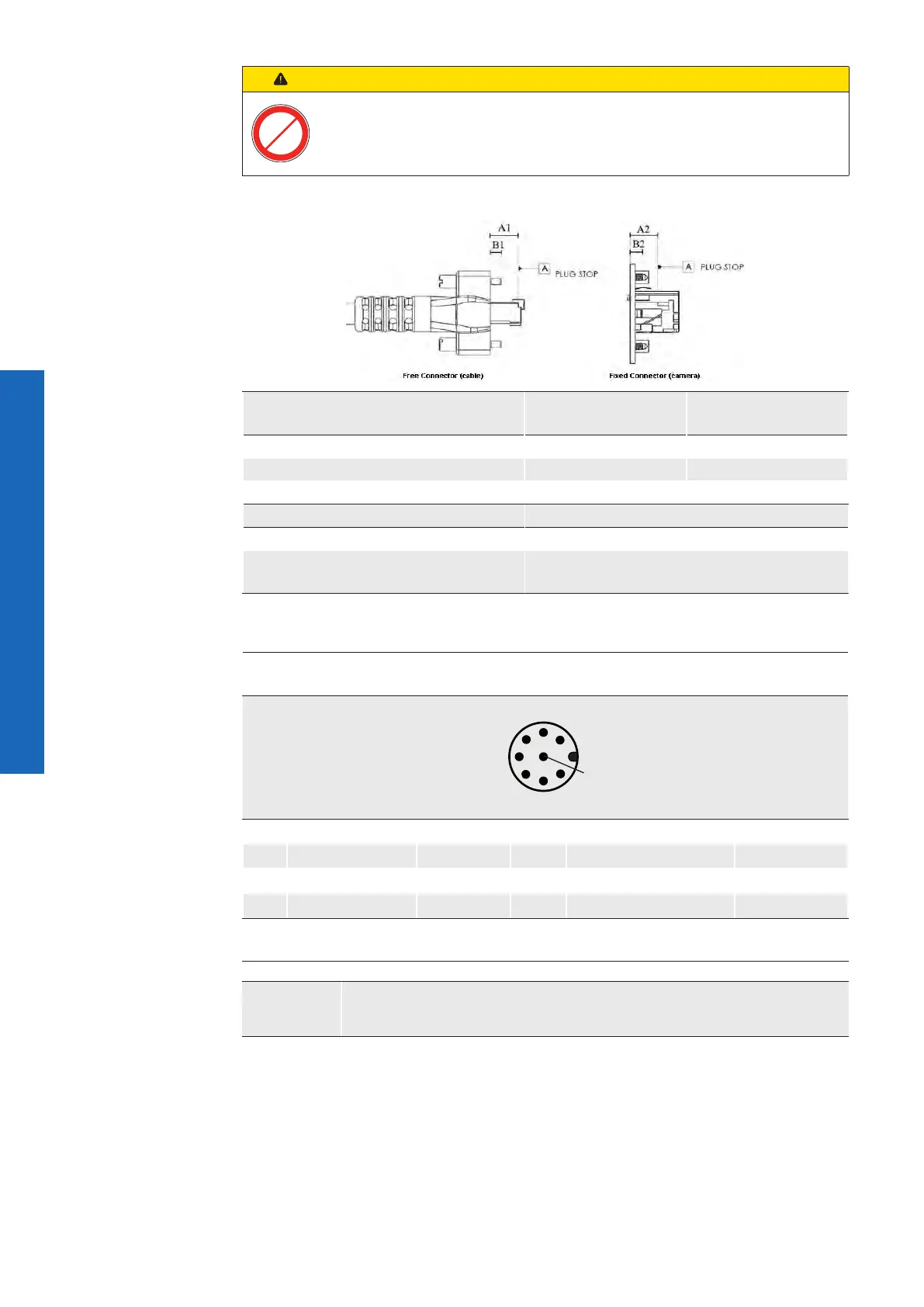

Caution!
The camera is equipped with a TYPE090 xed connector. Using a Free Con-
nector (cable) other than TYPE090 could damage the Fixed Connector.
Only use cables with a TYPE090 Free Connector.
Dimension - Free Connector (cable) TYPE090 TYPE110
Do not use!
From overmold to plug stop (A1) 9.0 mm (-0.50 + 0.00) 11.0 mm (-0.47 + 0.00)
From overmold to tip of thumbscrews (B1) 4.25 mm (-1.00 + 0.25) 4.25 mm (-1.00 + 0.25)
Dimension – Fixed Connector (camera) TYPE090
From contact point to plug stop (A2) 9.0 mm (-0.00 + 1.00)
From contact point to bottom of thumb-
screw thread (B2)
4.5 mm (-0.00 + 1)
5.1.2 Power Supply and IOs
Power Supply / Digital-IOs (on camera side)
wire colors of the connecting cable (ordered separately)
8
5
7
3
1
4
2
6
1 GPIO (Line2) white
5 Power V
CC
OUT1
grey
2 Power V
CC
brown
6 OUT1 (Line3)
pink
3 IN1 (Line0)
green
7 GND (Power, GPIO)
blue
4 GND IN1
yellow
8 GPIO (Line1)
red
Power Supply
Power V
CC
12 V ... 24 V (± 20 % ) (Power consumption: max. 4.2 W)
"The TYPE090 connec-
tor is recommended for
new designs."
(GigE Vision
®
Mechani-
cal Supplement v1.0)
