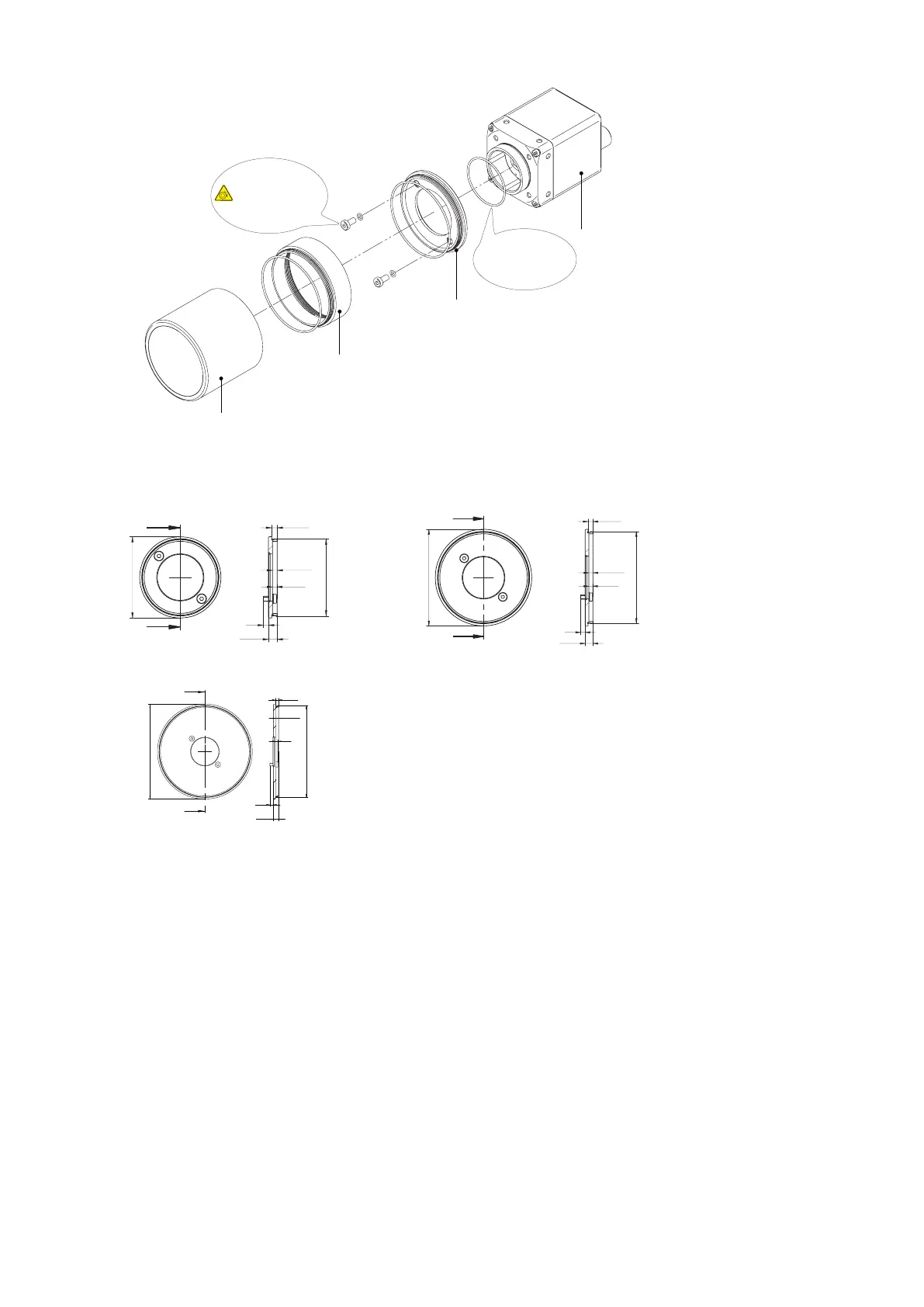

Modular tube system (ordered separately)
Tube
Tube Adapter
Camera
Tube Modul
The peak torque while
tightening the
screws is 0.9 Nm.
Use a torque wrench!
Recommended grease
for easier installation of
the sealing rings:
ELKALUB GLS 867
Tube Adapter
Art. No.: 11185373
A
A
49,5Ø
A-A
5,25
2,75
2,5
3
3,25
M47 x 0,75
M 47
Art. No.: 11185377
A
A
Ø56
A-A
5,25
2,75
2,5
3
3,25
M62 x 0,75
M 62
95Ø
A-A
5,25
2,75
2
3,5
3,25
M92 x 0,75
A
A
Art. No.: 11704311
M 92
