Get mapped value feature - 101

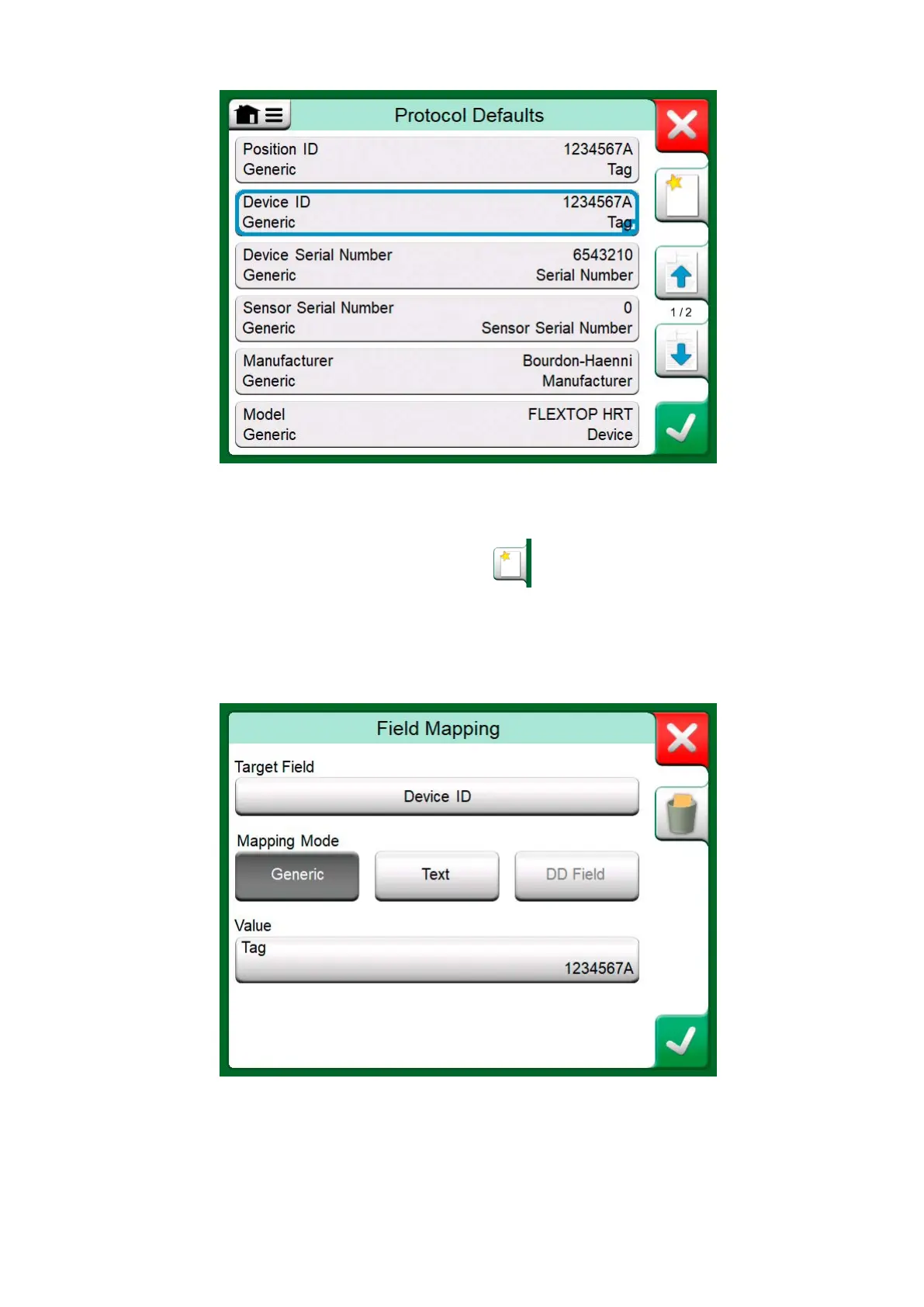

Figure 93: Sample of default mappings for HART protocol
Tap on one of the buttons to edit the mapping. You may also add new
mappings using the New button ( ). New mappings are defined
similarly as existing mappings are edited.
Creating a new mapping or editing an existing mapping is done in a
window like in Figure 94: Sample of default mappings for HART protocol.
Figure 94: Sample of default mappings for HART protocol
