Options - 35

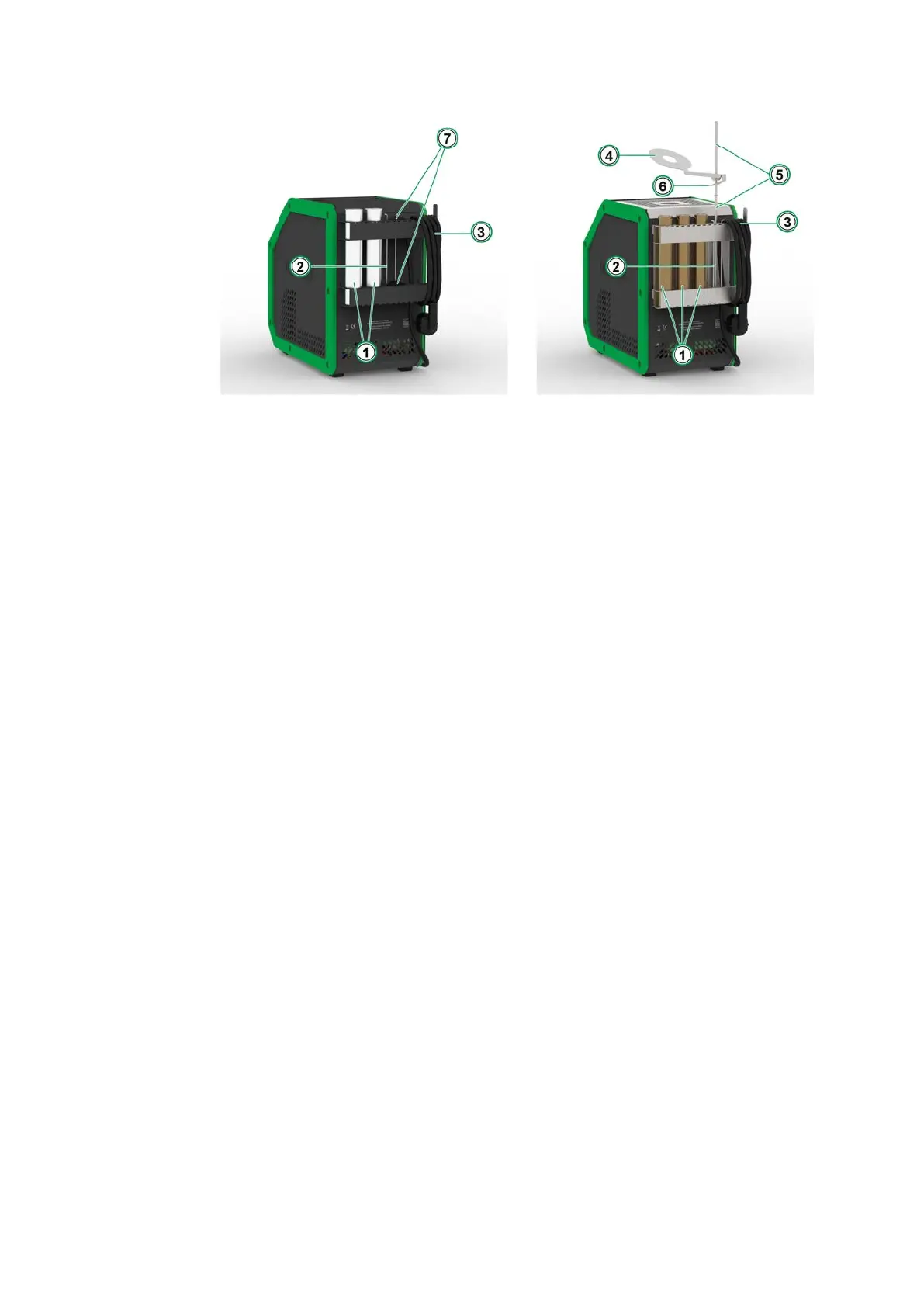

Figure 20: Accessory Holder Kit, fully equipped (MC6-T150 on the
left, MC6-T660 on the right)
Legend:
1. Cut-outs designed to store additional inserts.
2. Insert removal tool.
3. Mains cord holder.
4. Heat Shield.
5. Heat Shield Holder.
6. Heat Shield Tongue.
7. Cut-outs for storing insert insulations (MC6-T150 model only).
Assembly
The Accessory Holder Kit delivered separately includes the tool needed
for the assembly (Torx T20).
To assemble the Accessory Holder Kit, loosen two panel screws (A
in Figure 21: MC6-T660 Transportation position). Slide the Accessory
Holder Kit into place and tighten forementioned screws back. Follow the
same steps in reverse order to detach the Accessory Holder Kit from the
device.
