36 - General description

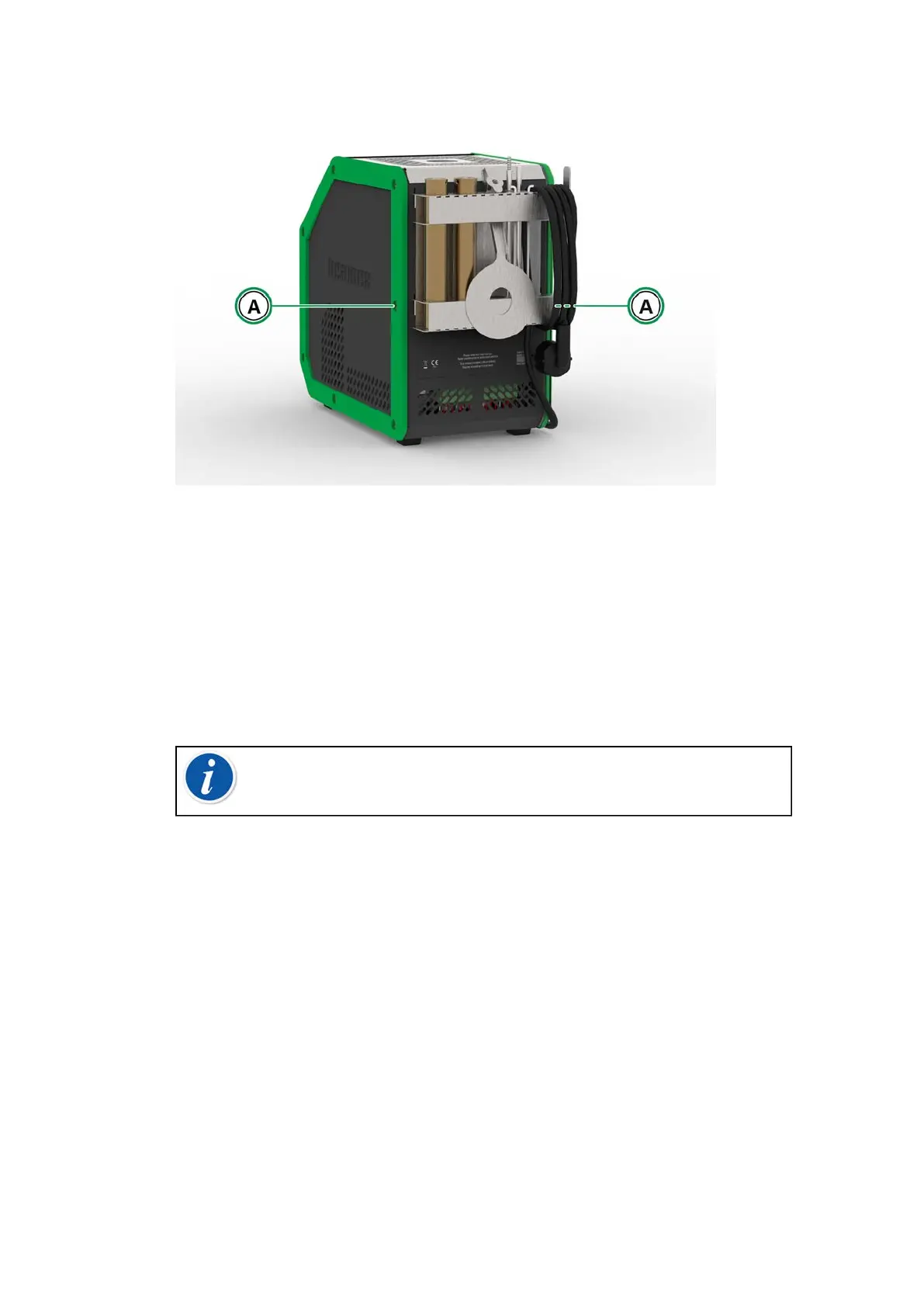

Figure 21: MC6-T660 Transportation position
To install the Heat Shield (MC6-T660 model only), first connect the two
parts of the Heat Shield Holder by twisting them together, then twist the
whole Heat Shield Holder in place (there is a right side threaded hole in
the bottom part of the Accessory Holder Kit). Slide the Heat Shield on
top of the Heat Shield Holder by gently pressing the Heat Shield Tongue
(6 in Figure 20: Accessory Holder Kit, fully equipped (MC6-T150 on the
left, MC6-T660 on the right)). Adjust the Heat Shield position to achieve
the desirable heat protection for your sensor.
Note: When moving around the factory, it is recommended to
place the accessories into the Transportation position, as
shown in Figure 21: MC6-T660 Transportation position.
