BEAMEX MC6-T - Page 81

Calibrating Instruments - 81

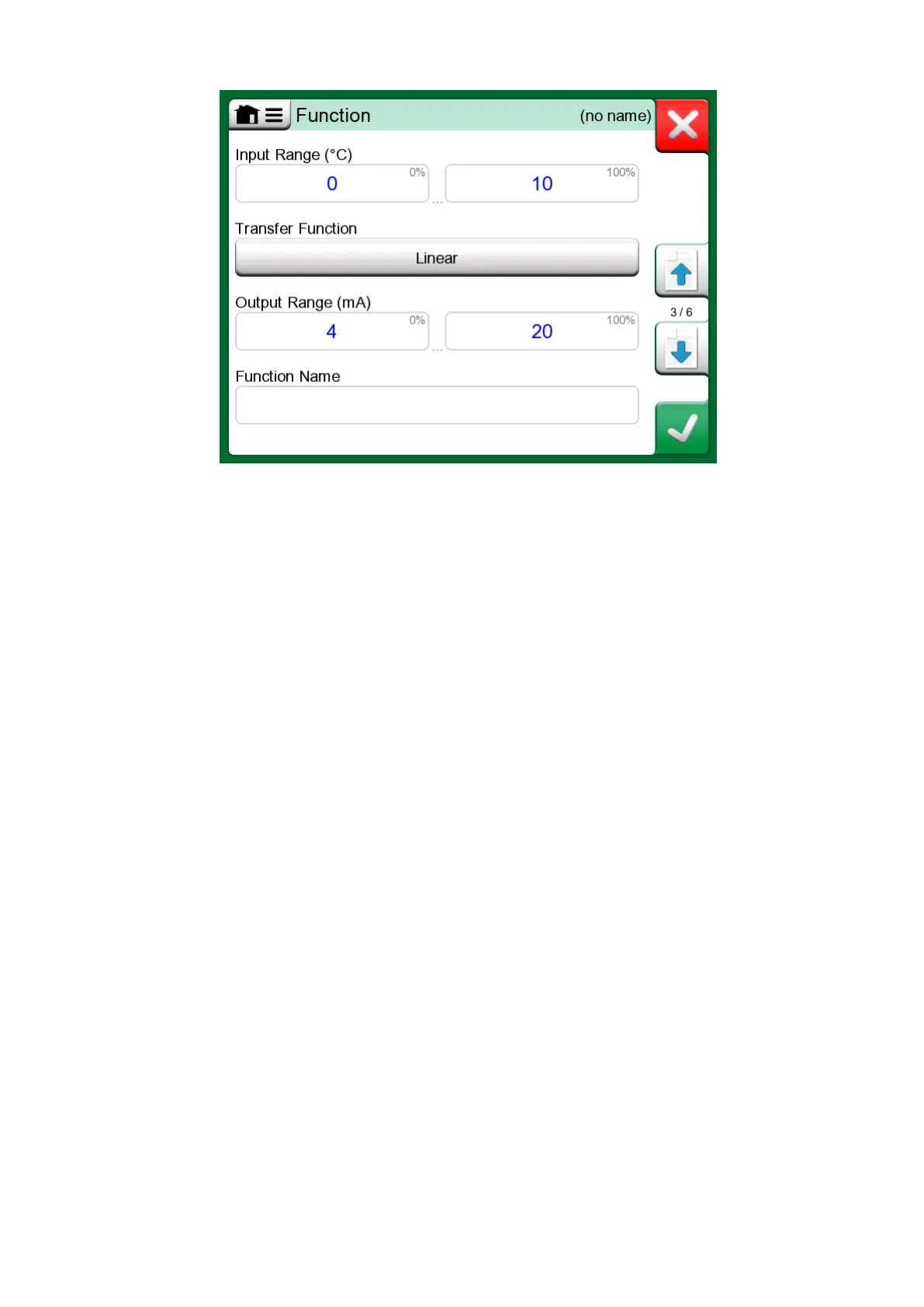

Figure 67: Creating new instrument - configuration, page 3
Fourth page of the creating new instrument configuration data
(Procedure) describes parameters:
• Calibration Points (Predefined) - define own calibration steps (number
of steps, step size and percentage) or select one of the predefined sets;
• Repeat Format - defines way of advancing for calibration points;
• Max Point Deviation (%) - specifies how much the saved calibration
point can differ from the nominal calibration point;
• Point Delay (s) - defines how long the device will wait before accepting
the point (automatic acceptance checked);
• Points are Input / Output - specifies if the calibration points are
calculated form input or from output;
• Stability Check - instrument checks the signal stability before saving the
reading;
• Automatic Acceptance - accepts points automatically after considering
all preconditions (e.g. point delay, stability, etc.);
