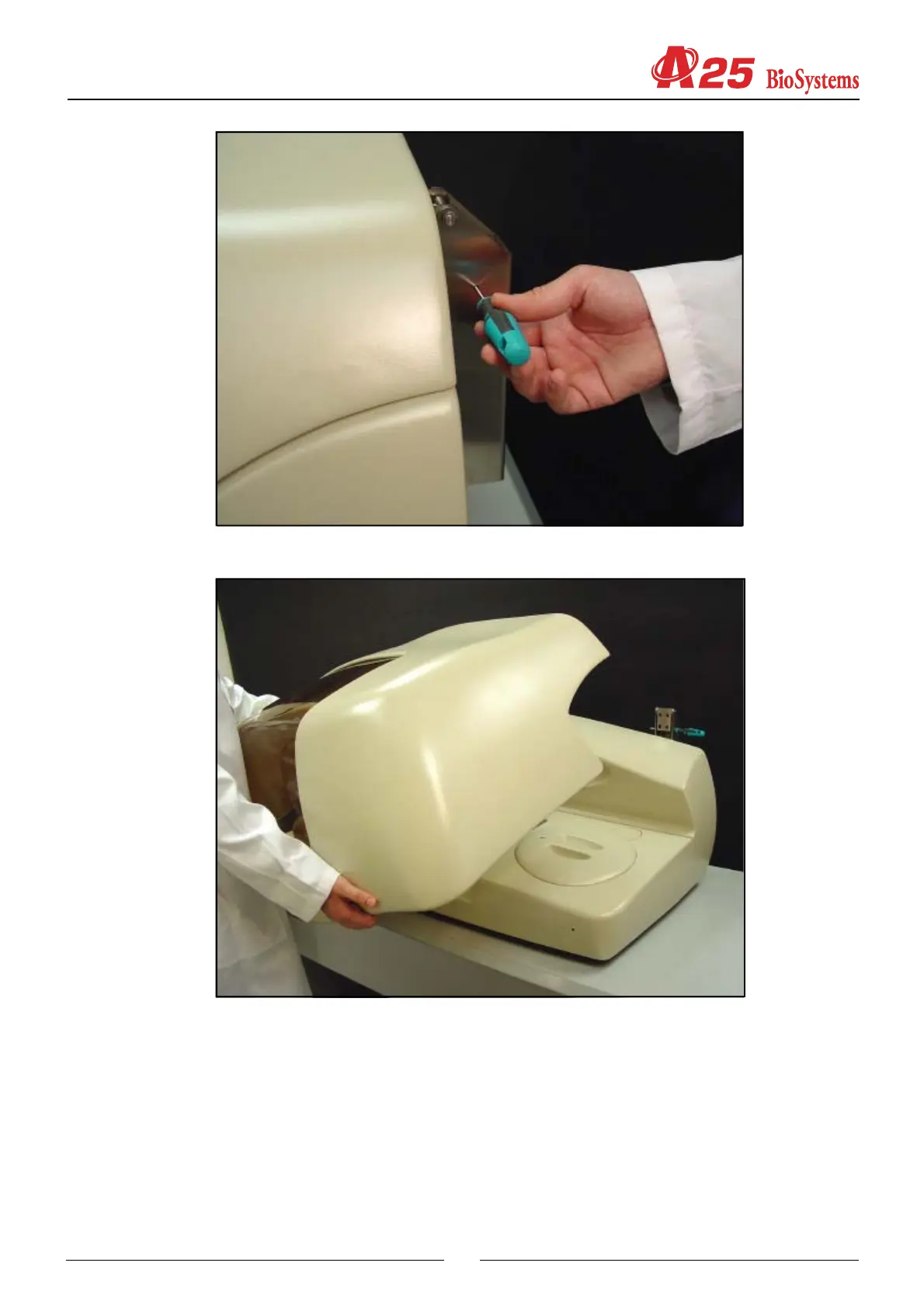

5.1.1.4. Removing the back housing
a
)
Remove the front housing.
b
)
Remove the main cover
.
c)
Manually move the operating arm as far as possible to the left.
d
)
Remove the screws that hold the housing in position from the bottom of the base and the back screw
.
e
)
Remove the rubber grommet that holds the container tubes.
f
)
Remove the housing by pulling it upwards and tilting it slightly forwards.
