The metallic cover (1) supports the central fans (3) protected by the grills (2).
2.2.5. Main cover hinges

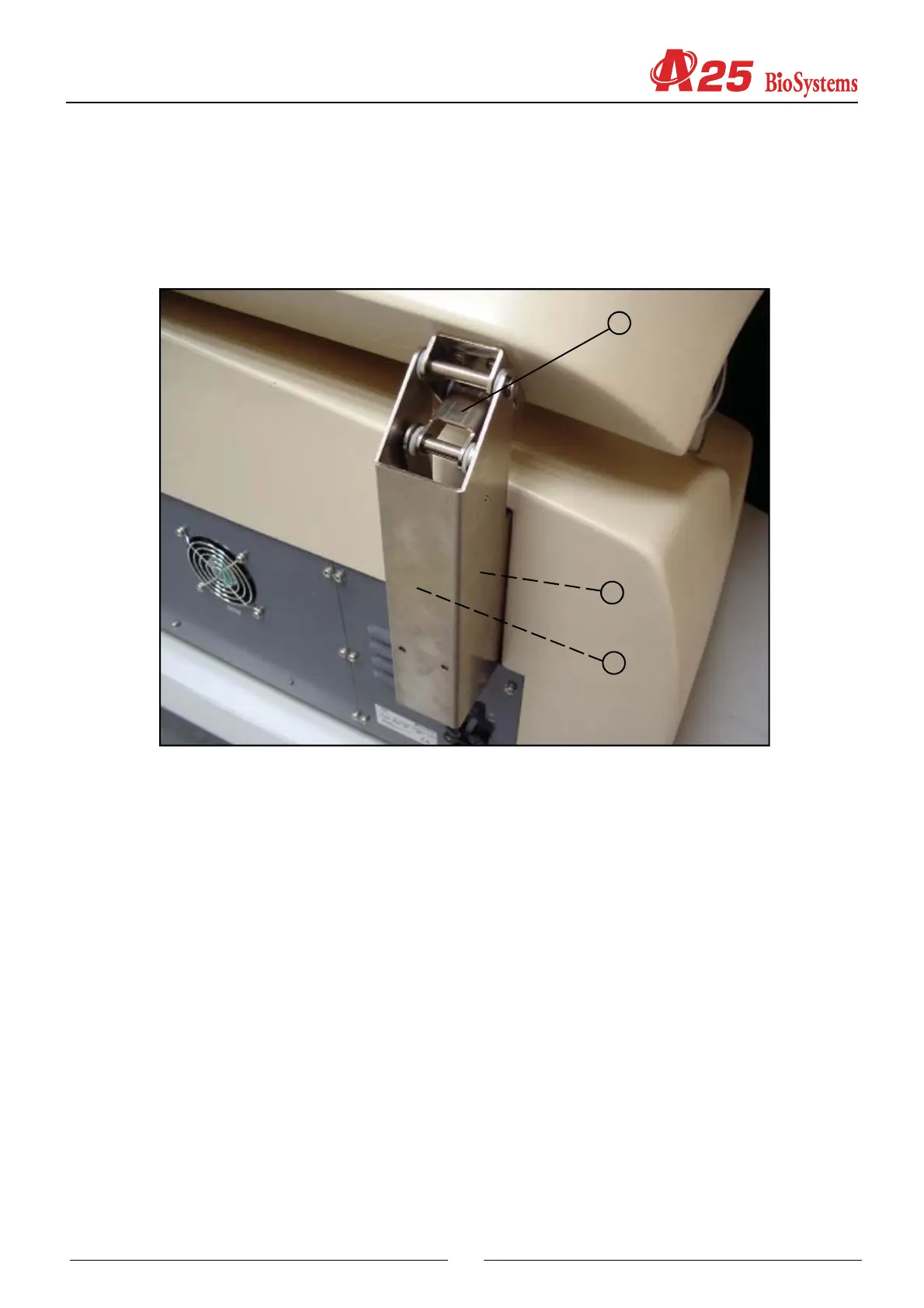

(1) HYDRO-PNEUMATIC SPRING
(2) ARTICULATED STEEL STRUCTURE
(3) COVER OPEN PHOTODETECTOR (on right-hand hinge only)
The two hinges enabling the raising of the main cover of the analyzer consist of an articulated steel structure (2) operated
by a hydro-pneumatic spring (1). The right-hand hinge includes a photodetector (3) to detect whether or not the cover of
the analyzer is open or closed.
2.2.6. Base
(1) CAST ALUMINIUM BASE
(2) CABLE GUIDE CHANNEL
(3) NEEDLE VERIFICATION BRACKET
(4) AUXILIARY DEVICES CONDUIT COVER
(5) FASTENING FOR AUXILIARY DEVICES
(6) CLAMP SUPPORT
(7) X CARRIAGE CHAIN TERMINAL
(8) FAN GRILL
(9) FRONT COVER OF THE ELECTRONICS
(10) MICROPROCESSOR BOARD
(11) POWER SUPPLY BOARD
(12) FRONT INDICATOR BOARD
(13) ADJUSTABLE LEG
(14) LEGS
