Service manual
122
i) If it is different, enter the wavelength of the new filter that has been installed.

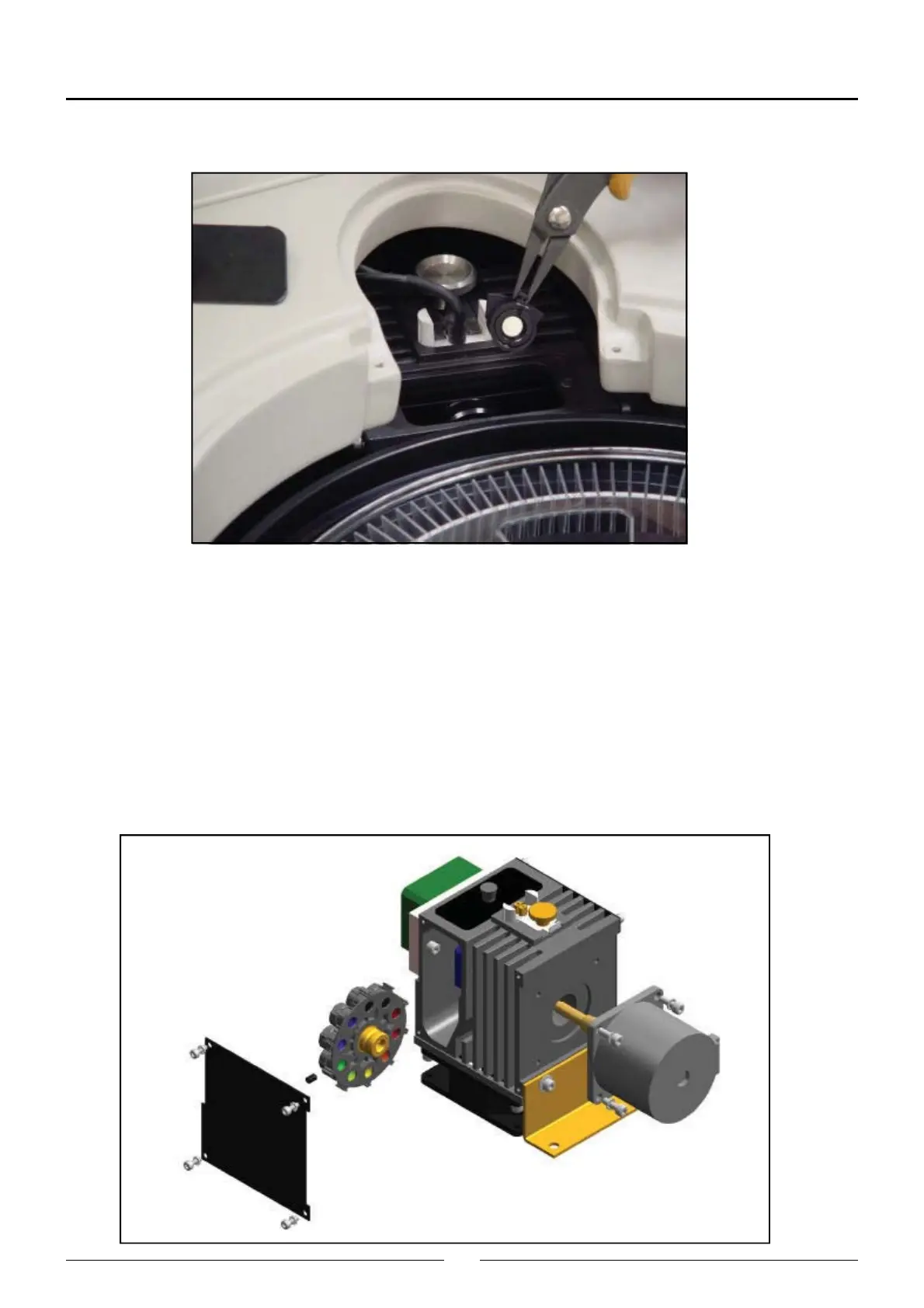

5.1.4.10. Configuration of the filter wheel
To change the filter wheel, it is not necessary to remove the rotor from the base.
a) Remove the front housing.
b) Remove the side cover of the lighting system.
c) Loosen the Allen bolts that holds the filter wheel in place.
d) Remove the motor. On removing the motor, joined to the wheel shaft, the wheel comes free.
e) Place the new filter wheel in position and introduce the motor with the shaft in position. The Allen bolt must coincide
with the machined area of the shaft. Put screwfastener on the bolt.
f) Fit the wheel to the shaft. Check that the rotor turns freely without mechanical interference.
g) Do the motor adjustments with the service program.
