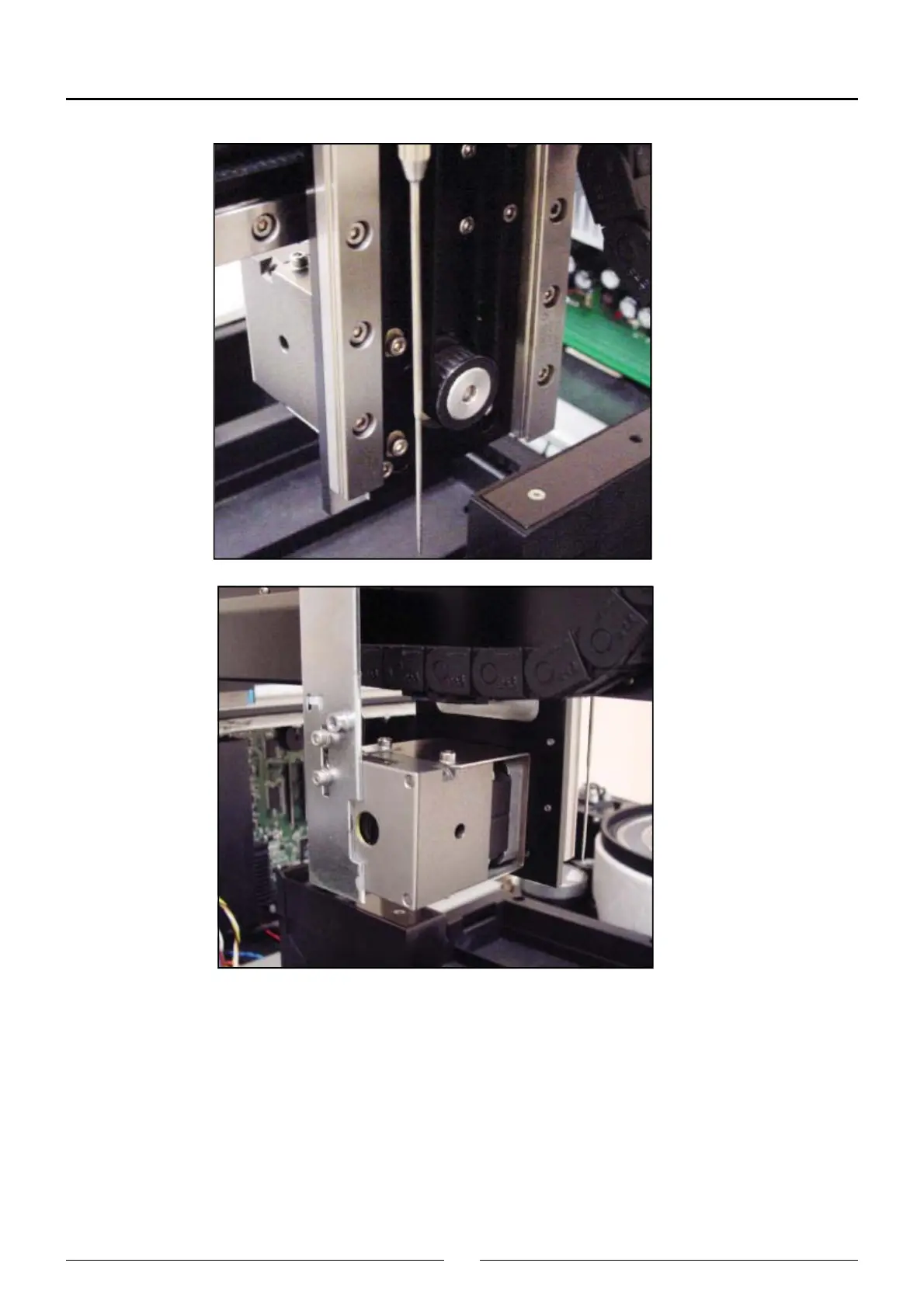

5.1.2.7. Changing the X motor belt
a) Remove all the analyzer housing.
b) Loosen the screws that hold the X motor in place and remove the belt from both pulleys.
c) Remove the belt fastening.
d) Remove the X belt fastening cap.
e) Change the belt for a new one.
f) Remount the belt fastening cap. Put screwfastener on the screw before tightening it.
g) Mount the belt fastening on the X carriage.
h) Put the belt on the pulleys, tighten it manually, displacing the motor and fasten it by tightening the 4 screws.
i) Do the motor test with the service program
