biosystems A25 User Manual

Service manual
104

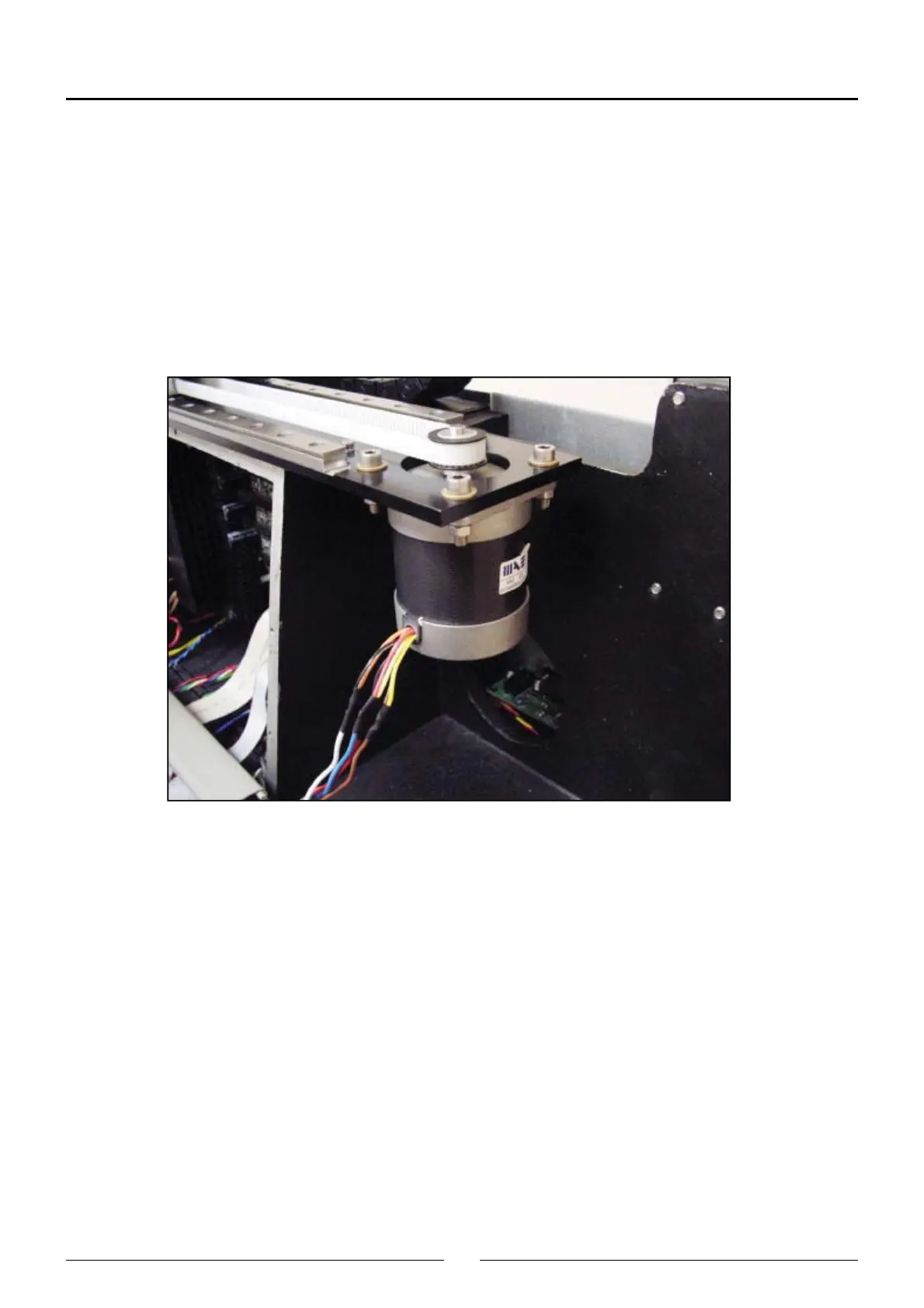

5.1.2.4. Changing the X motor
a) Remove all the analyzer housing.
b) Disconnect the motor cable from the microprocessor board.
c) Cut the clamps as necessary.
d) Remove the motor.
e) Change the motor (with pulley).
f) Mount the motor on the X guide without tightening the screws.
g) Connect the notched belt, tighten it manually displacing the motor and tighten the 4 screws that hold it in position.
h) Connect the motor cable and fasten it with clamps.
I) Do the adjuntments and test with the service program
5.1.2.5. Changing the Y motor
a) Remove all the analyzer housing.
b) Disconnect the motor cable from the microprocessor board.
c) Remove the motor.
d) Change the motor (with pulley).
e) Mount the motor on the Y guide without tightening the screws.
f) Connect the notched belt, tighten it manually displacing the motor and tighten the 4 screws that hold it in position.
g) Connect the motor cable.
h) Do the adjuntments and test with the service program
