The analyzer has two scales to control the level of the distilled water and waste containers by weight. Each of these
scales has a load cell (1) as a weighing component. One of the ends of the cell is fastened to the base of the instrument.
The support of the base (2) is screwed to the other free end. The base (3) is the stainless steel board on which the
containers stand. The base of the analyzer has 4 adjustable maximums (4) for regulating the maximum allowed deformation
of the load cell. The maximums prevent the cells from deteriorating if the user puts the containers on the scales in a
brusque manner.

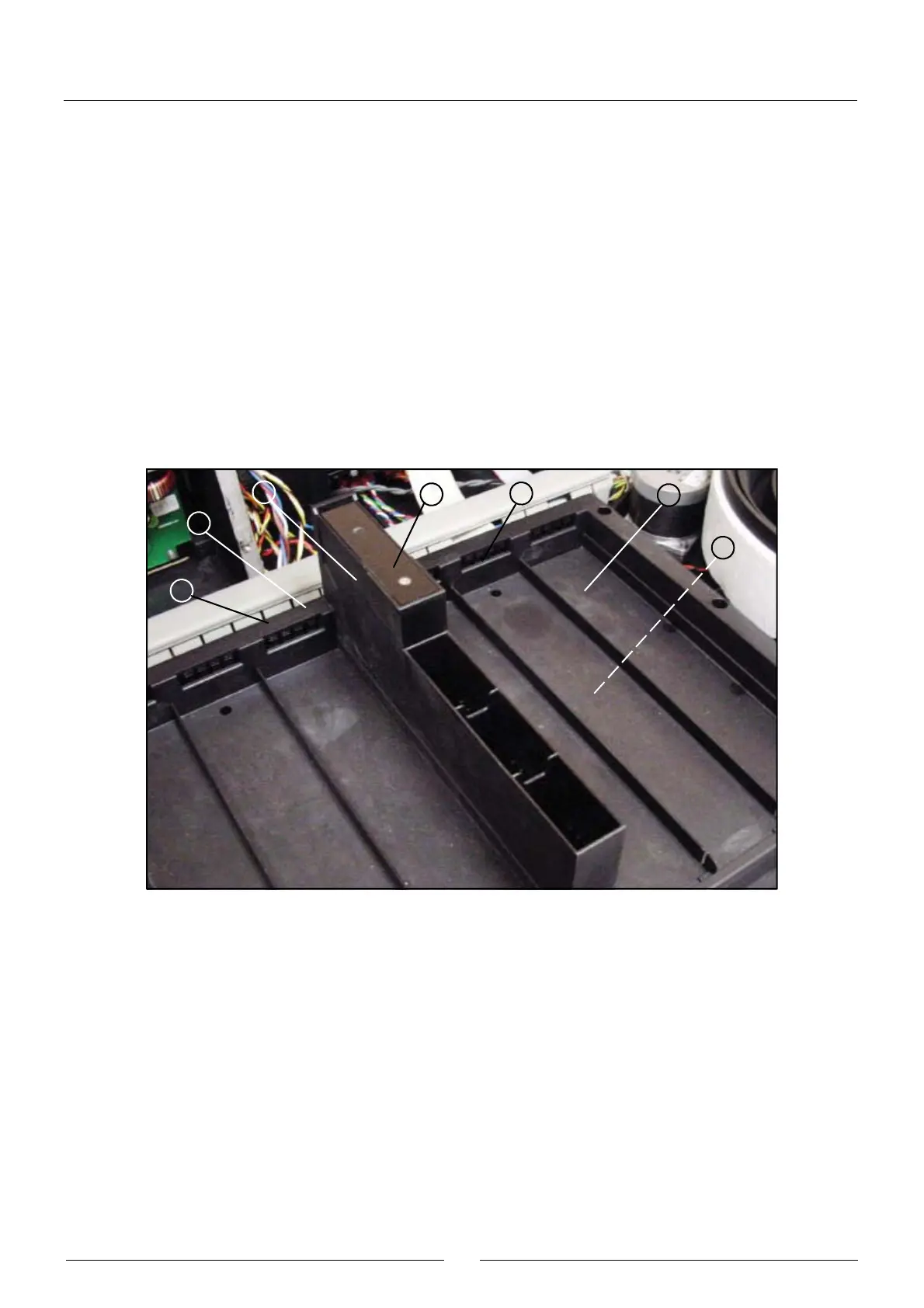

2.2.2.5. Racks tray with integrated washing station
(1) TRAY
(2) WASHING STATION
(3) WASHING STATION COVER
(4) LEVEL DETECTION SHEETING
(5) ELECTRONIC RACKS DETECTION BOARD
(6) WASHING WATER PVC TUBE
(7) WASTE EXTRACTION PVC TUBE
The plastic injection tray (1) is fastened directly to the base of the instrument. In the centre is the stainless steel washing
station (2), covered by the lid (3). The sheeting (4) enables the detection of the level of the dispensing needle. The
electronic board (5) detects the rack type placed in each of the 6 positions of the tray. The PVC tube (6) connects the
washing station to the flow volume limiter of the washing pump. The PVC tube (7) connects the washing station drain to
the waste extraction pump.
5
3
2
6
7
4
