31
CHANNEL to the instrument frame. The tubes (31) drain the rotor of any possible liquid spillage. The columns (32) fasten
the rotor to the base of the analyzer.

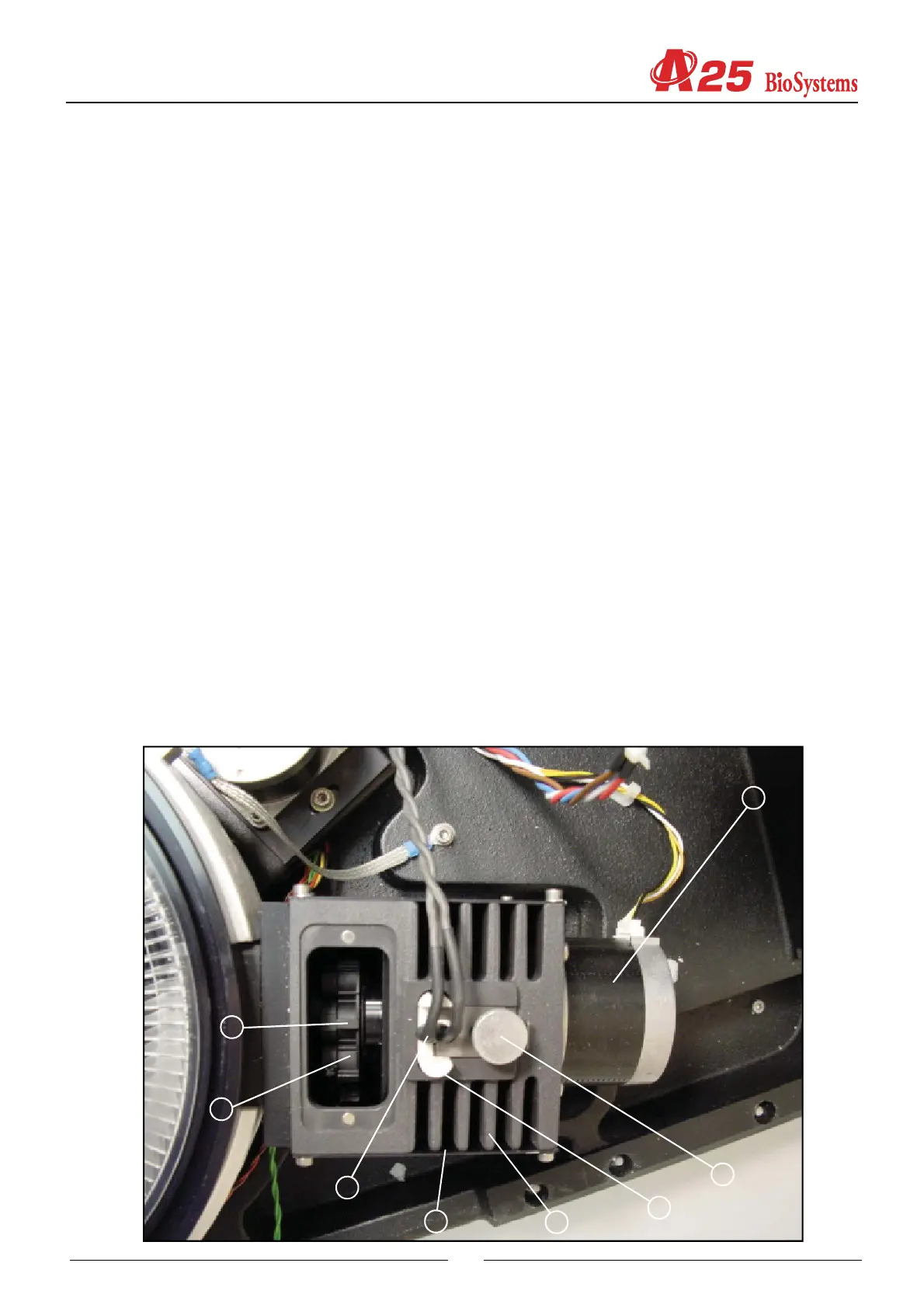

2.2.3.2. Lighting system
(1) BODY
(2) LAMP HOLDER
(3) HALOGEN LAMP
(4) LAMP HOLDER FASTENING
(5) FILTERWHEEL
(6) FILTER HOLDER
(7) FILTER HOLDER NUT
(8) FILTER COVER
(9) MATCHED INTERFERENTIAL FILTERS
(10) FILTERWHEEL SHAFT
(11) BEARING
(12) START PHOTODETECTOR
(13) MOTOR
(14) PCX LENS SUPPORT
(15) DIAPHRAGM
(16) PCX LENS
(17) PCX LENS NUT
(18) LCP129 LENS SUPPORT
(19) LCP129 LENS
(20) LCP129 LENS FASTENING
(21) LCP125 LENS SUPPORT
(22) SLOT BETWEEN LENSES
(23) LCP125 LENS
(24) LCP125 LENS FASTENING
(25) FILTERWHEEL WINDOW COVER
(26) SIDE COVERS
2
1
26
13
4
3
5
6
