119

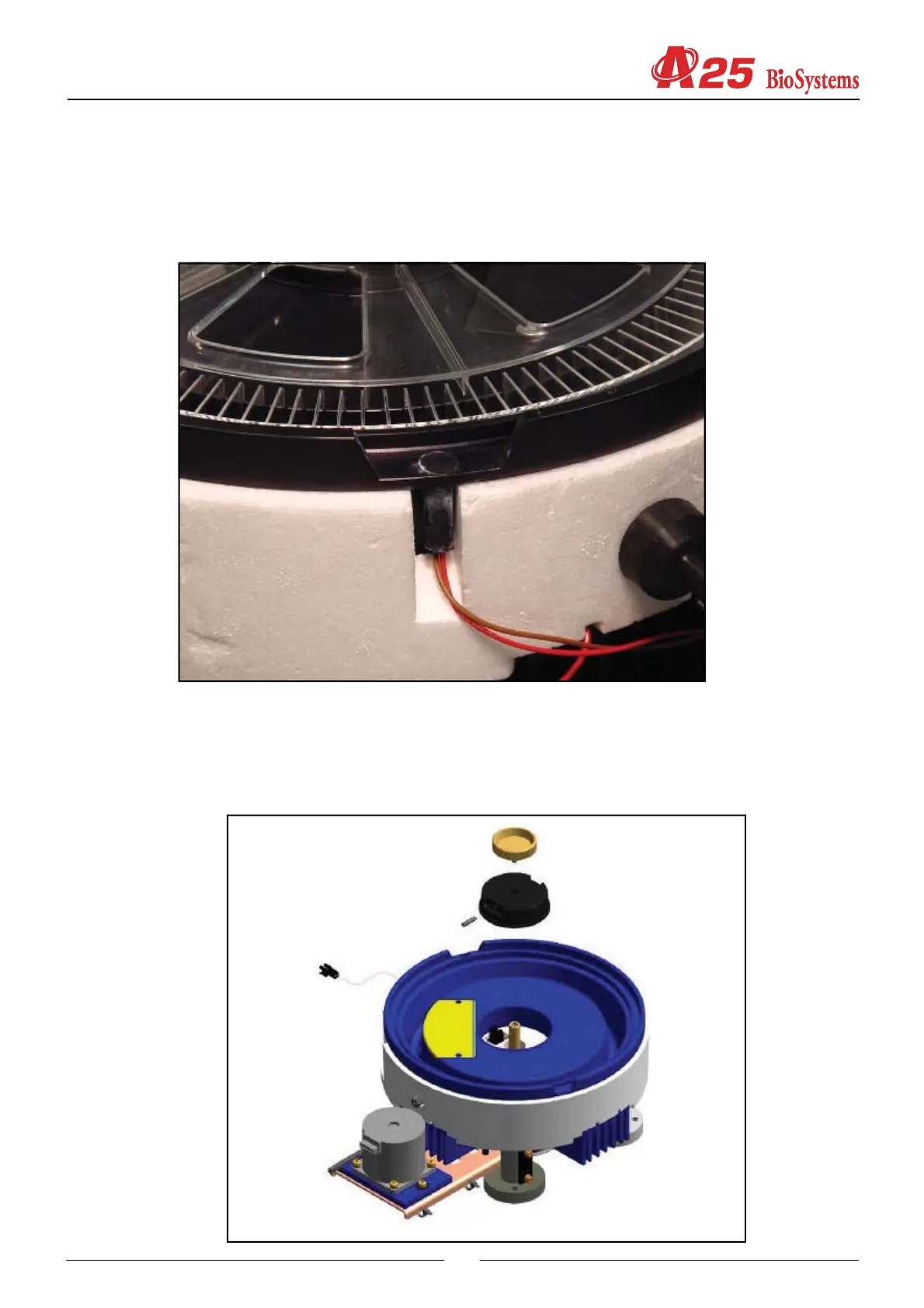

5.1.4.4. Changing the rotor cover detector
a) Remove the front housing.
b) Disconnect the detector to be replaced.
c) Remove it from its housing and take it out.
d) Clean the remnants of the original glue from the housing.
e) Place a little adhesive on the detector housing and then introduce the new detector.
5.1.4.5. Changing the rotor start photodetector
a) Loosen the Allen bolt on the rotor centerer and take it out by pulling upwards.
b) Remove the start photodetector board. Unsolder this board from the electrical hose and solder the new one.
c) Refit the system and check that the centerer turns freely. Fix the allen stud with threadlock glue.
