List Mode 35
Edit Step
Use the rotary knob to navigate the steps available.(select a row)
To edit parameters of the step, use the keys.(selects a column)
See gure 5.6 for the parameter each row edits.
Press to toggle enable/disable BOST and/or EOST.

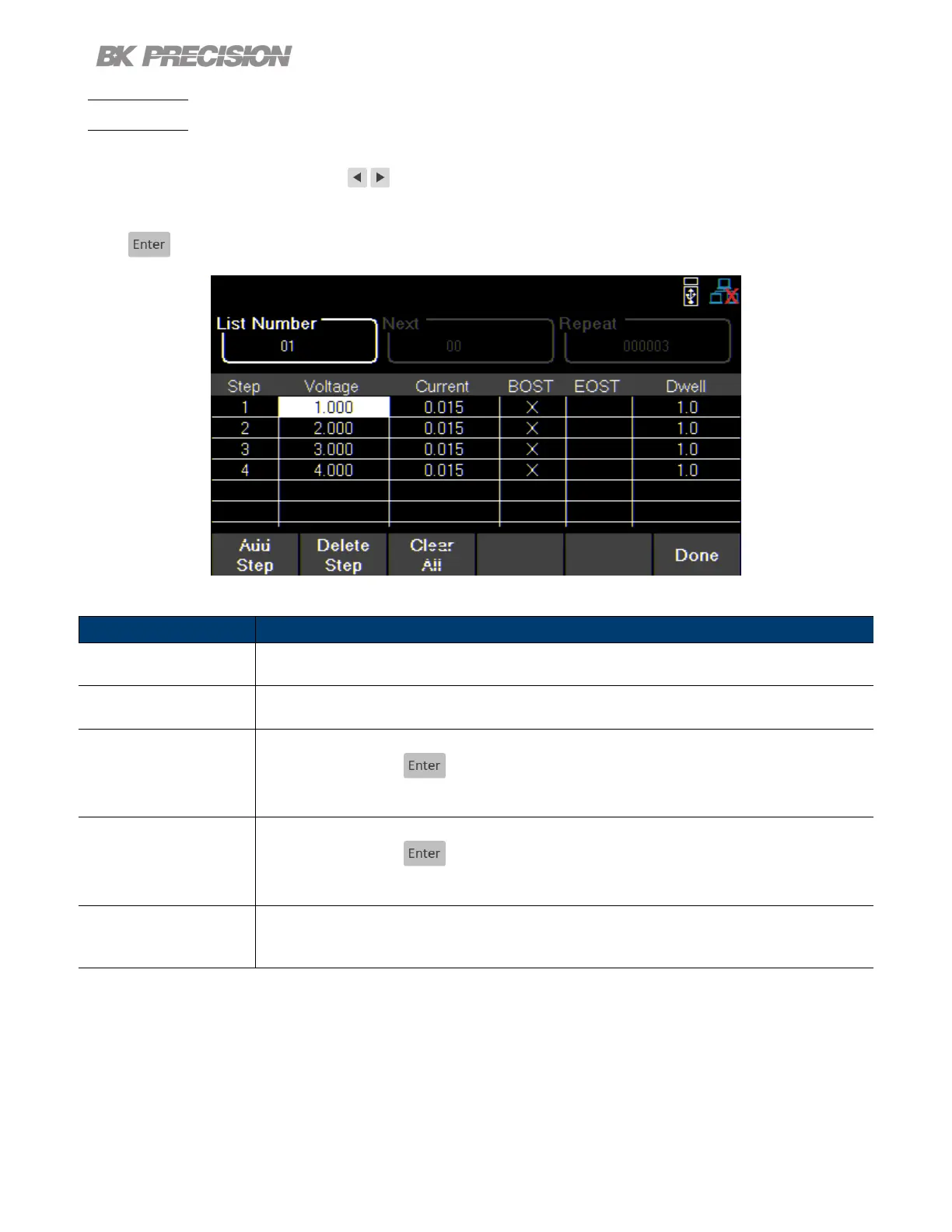

Figure 5.6 List Conguration
Step Parameters
Description
Voltage Set the Vset value.
Current Set the Iset value.
BOST
Press the knob or the button to enable/disable a trigger-out signal at the beginning of
the step (BOST).
EOST
Press the knob or the button to enable/disable a trigger-out signal at the end of the
step (EOST).
Dwell
Sets the dwell time of the selected step.
Table 5.1 Step Parameters
