Configuration Mode (ConF)
Range (output values): For analog inputs only:

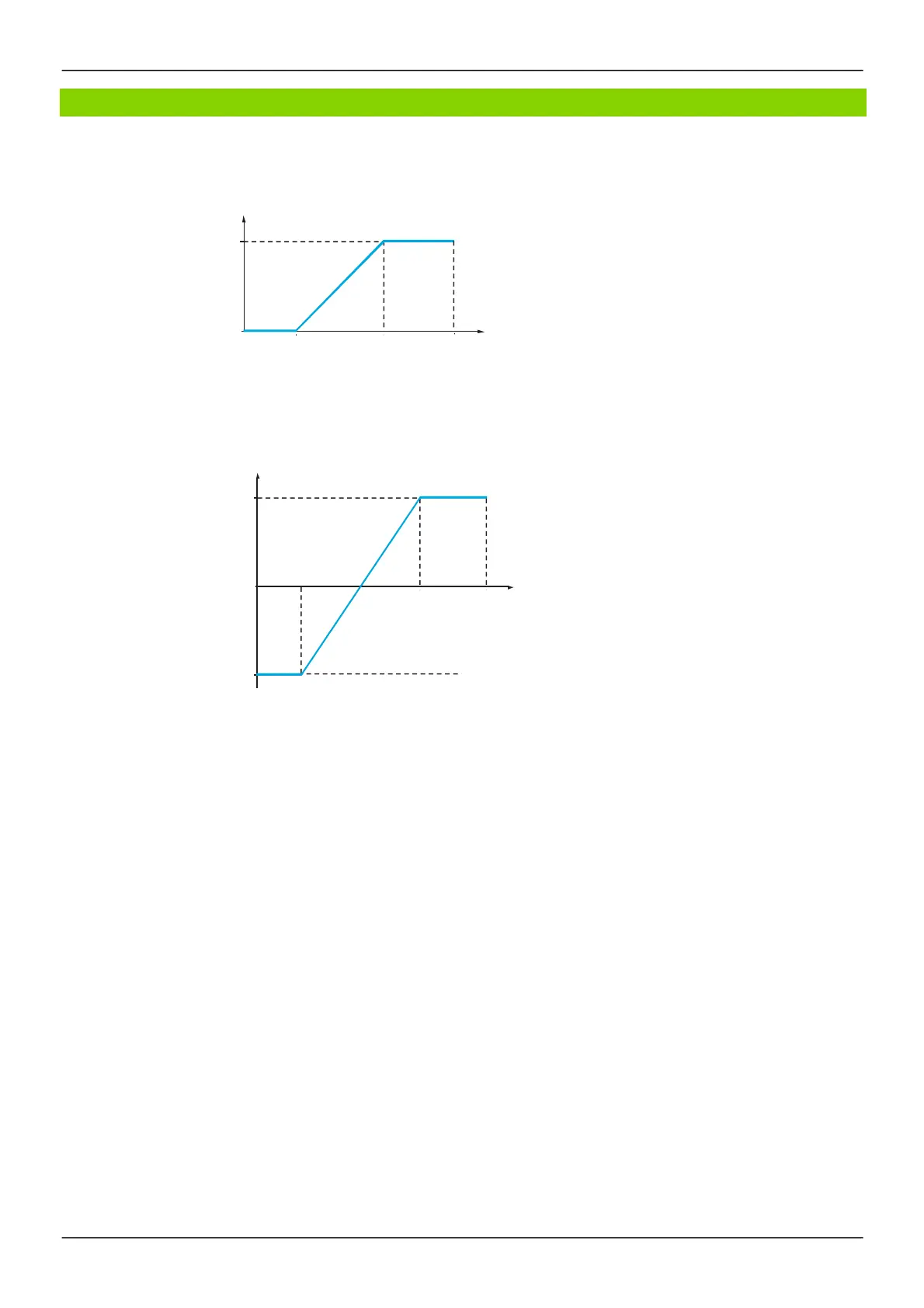

This param eter is us ed to configure the reference range to [0%
100%] or [-100%
+100%] in order to obtain
a bidirectional output from a unidirectional input.
Reference
100%
0%
[M in value] [M ax value]
Range 0
V
100%
20 mA or
10 V
Current or
voltage
input
Reference
100%
Current or
voltage
input
0%
- 100%
Range - 100%
+ 100%
Parameters described in this page can be accessed by:
DRI- > CONF > FULL > I_O-
[Min value]
[Max value]
20 mA
or 10 V
