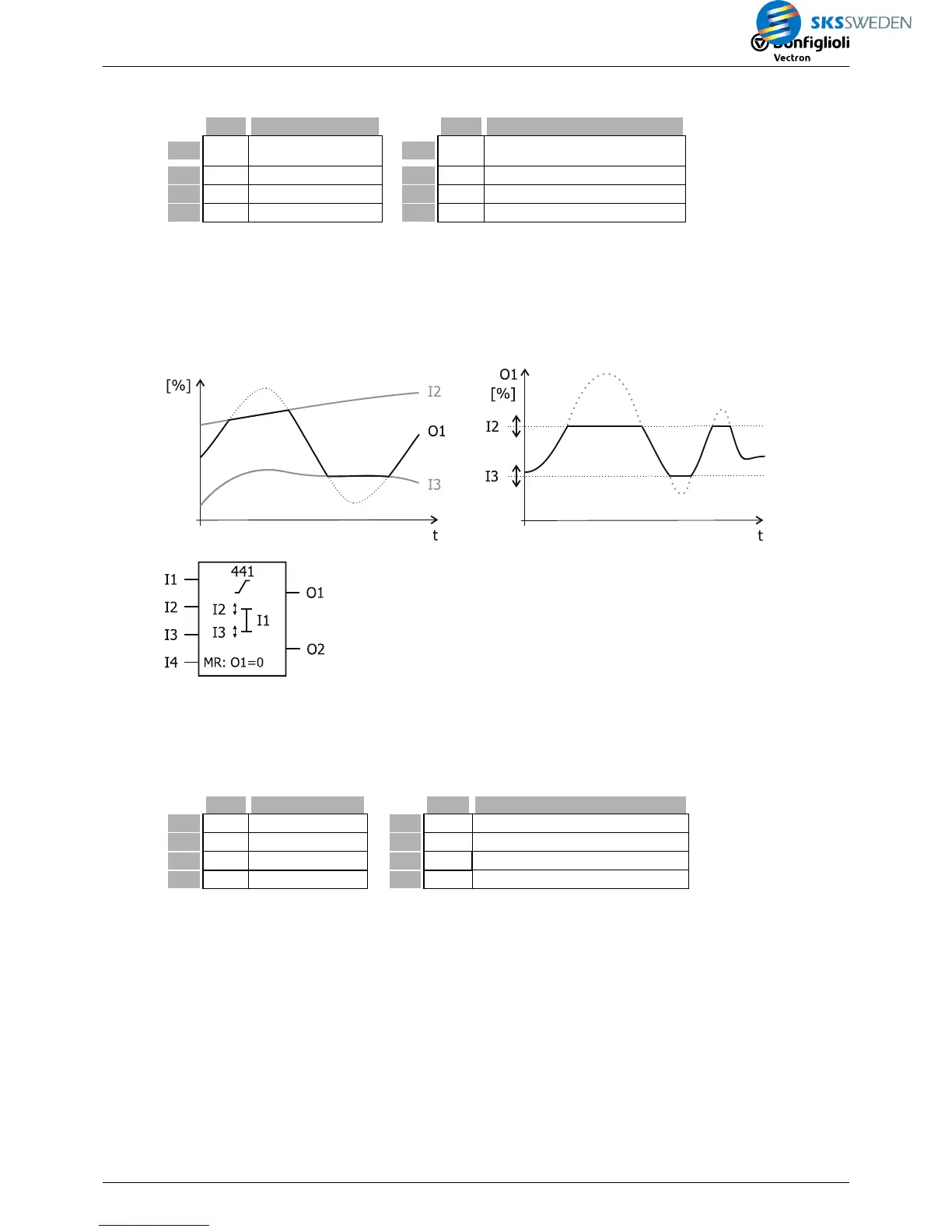

5.8.2 [441] Limiter (variable)
Type Function Type Function
I1 % input value 1
O1 %
b
b
2I
3I
1 IO 1 =
I2 % upper limit O2 % inverted output = -1
I3 % lower limit P1 - -
I4 b Master Reset P2 - -
Description:
The input value at I1 is limited to I1 (upper limit) and I2 (lower limit) and output.
b
b
2I
3I
1 IO 1 =
As long as status TRUE is present at I4 (Master Reset), the output value O1 is 0.
5.9 Counters
5.9.1 [450] Up/Down counter with analog output
Type Function Type Function
I1 b Up counter O1 % O1= counter I1 - counter I2
I2 b Down counter O2 % inverted output = -1
I3 b Master Set P1 i Steps up for 100.00%
I4 b Master Reset P2 i Steps down for 100.00%
Description:
−
Each positive edge at I1 increases the output value O1 by 100.00%/P1.
− Each positive edge at I2 reduces the output value O1 by 100.00%/P2.
− The output value is limited to the range 0.00% … 100.00%.
− Master Set (I3) sets the output to 100.00%. This input has priority over edges at I1 or I2.
− Master Reset (I4) sets the output to 0.00%. This input has priority over edges at I1, I2 and
Master Set I3.
