The input values and fixed values are selected according to the following table:
I3 I4 O1=
0 0 I1
1 0 I2
0 1 P1
1 1 P2
Note:
Percentages [%] have two decimals.
For example: Value 12345
IN
= 123.45% = 1.2345

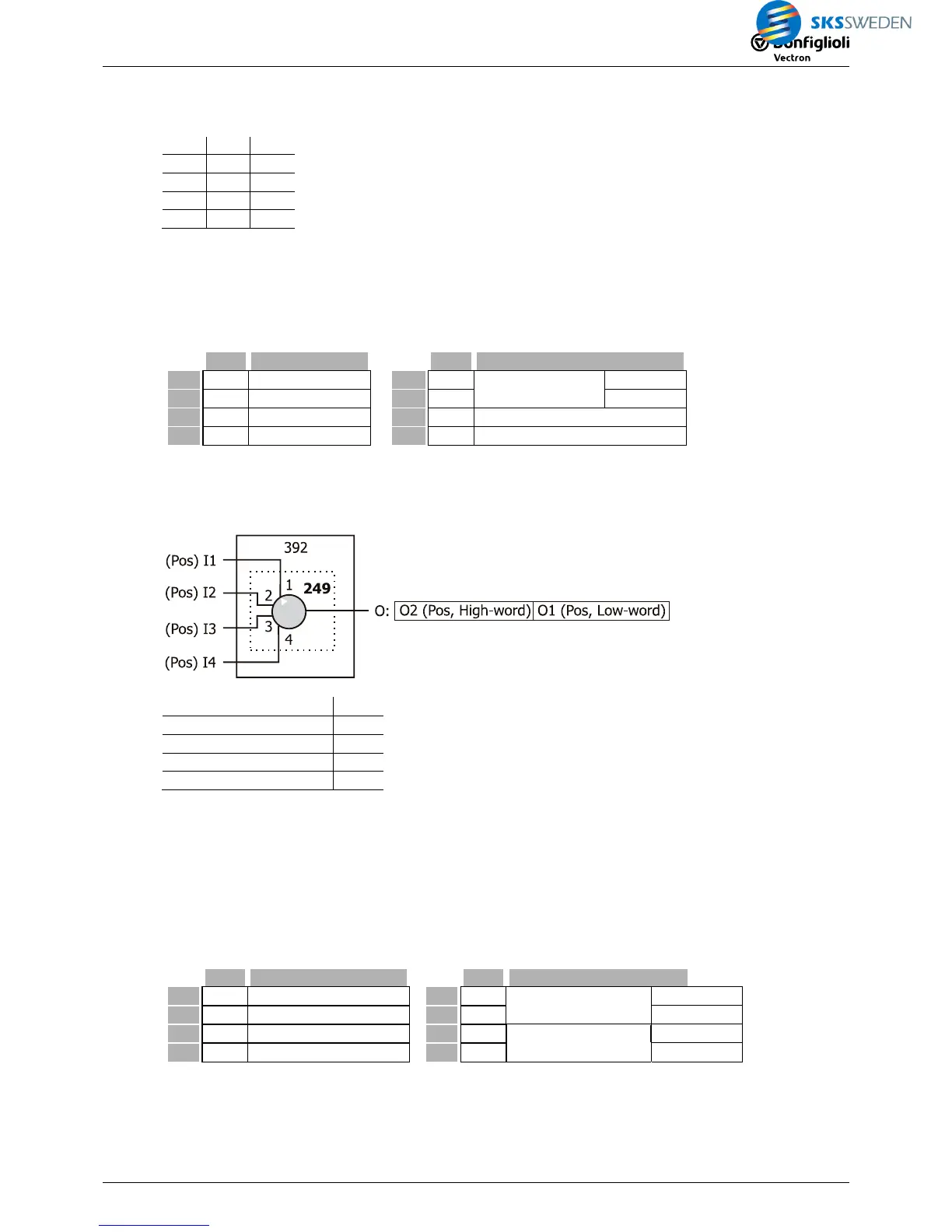

5.6.3 [392] MUX for position values (data set number), Multiplexer
Type Function Type Function
I1 Pos. input value 1 O1 Pos.
I1, I2, I3 or I4
Low word
I2 Pos. input value 2 O2 Pos. High word
I3 Pos. input value 3 P1 - -
I4 Pos. input value 4 P2 - -
Description:
Depending on the active data set (parameter
active data set 249), one of the input values is
output at the output.
Active data set 249
O=
1 I1
2 I2
3 I3
4 I4
O
wordLow|wordHighO1|2O −−==
Note:
Output value O2 is not the inverted value of O1.
The output can be combined with inputs for position values (Long).
The function can also be used for ramp settings in configurations x40.
The output has value 0 if an input combined with FALSE is selected by the active data set.
5.6.4 [393] Changeover switch for position values (Long)
Type Function Type Function
I1 Pos input value 1 O1 Pos
I1, I2 or (P2|P1)
Low word
I2 Pos input value 2 O2 Pos High word
I3 b Selection value 1 or 2 P1 Pos
Fixed value P
Low word
I4 b Selection of I or P P2 Pos High word
Description:
One of the values I1, I2, or P is output. Via I4 it is defined if an input value or the fixed value is
output. Via I3 it is defined if value 1 or 2 is output.
