2.2.8 Analog output block
Combining an analog function block output with a device function or an analog output (termin-
al):
− Drag a block "Analog Out" from the library to the function block output.
− Double-click the block "Analog Out". Select an output buffer.
Example:
Selected output
buffer
Signal source for de-
vice function
Example of device function
2 2502
AgilE:
Reference frequency source1 475 =
2502 – PLC output frequency 2
Signal source for analog
output (terminal)
Example of analog output (terminal)
1 61
AgilE:
Analog: Source MFO1A 553 =
61 – Abs. value PLC outp. percent 1

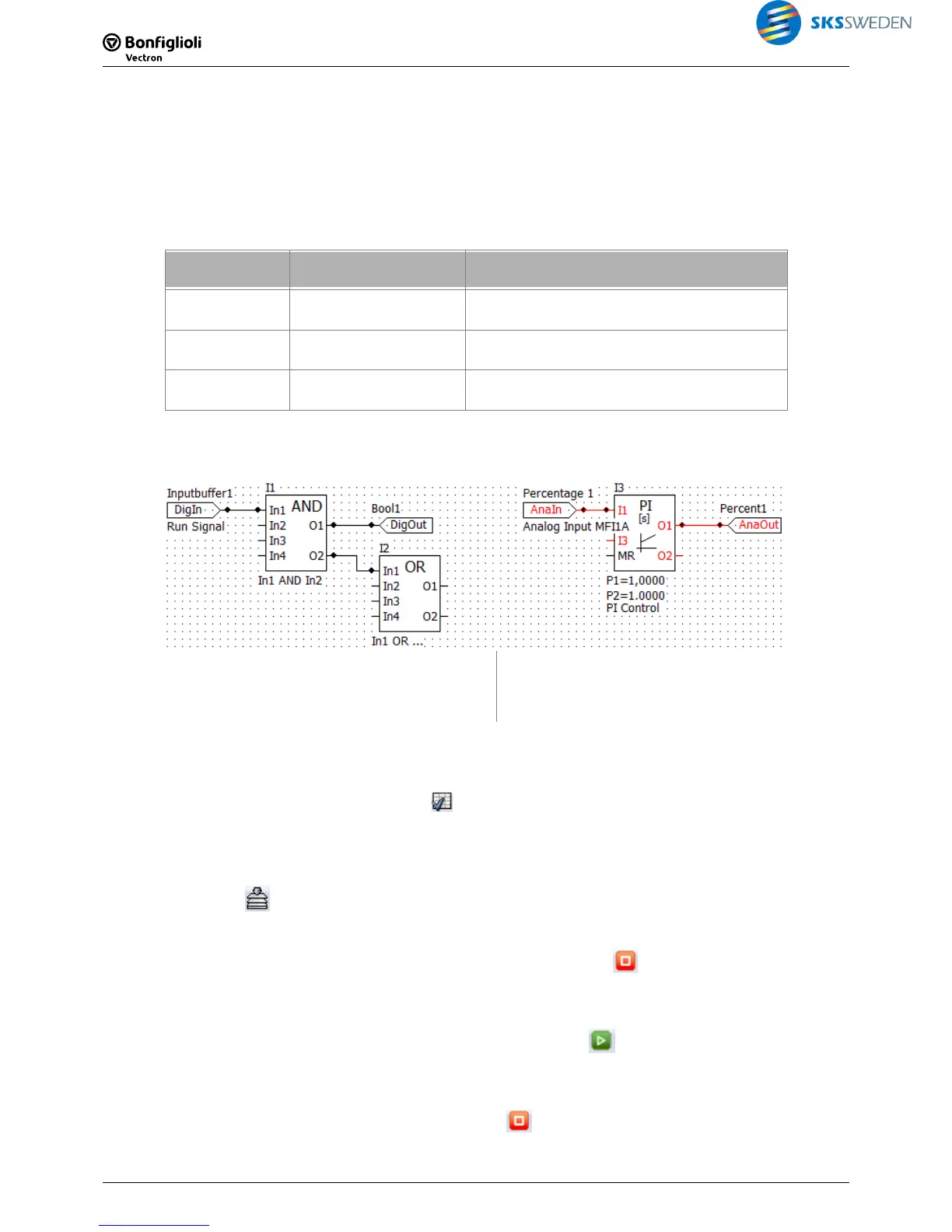

2.2.9 Example
Digital Analog
Run Signal as Input Signal Analogue input MFI1A as input value
(Percentage 1).
Output O1 via output buffer (Bool1). Output O1 via buffer Percentage 1 (Per-
cent1).
2.2.10 Syntax check
Start the syntax check by clicking button . In the syntax check window, click on the error
message in bottom area. The cause of the error is marked in the editor window.
2.2.11 Translation and download (to frequency inverter)
Click button to translate the function block program to parameter settings and download
them to the frequency inverter. Only if this function executed will the data in the frequency
inverter be changed. The syntax must be free from errors.
Before the translation and download, stop the PLC by clicking button
.
2.2.12 Starting the PLC
Run the function block opened in the editor by clicking on button .
2.2.13 Stopping the PLC
Stop the started function block by clicking on button .
