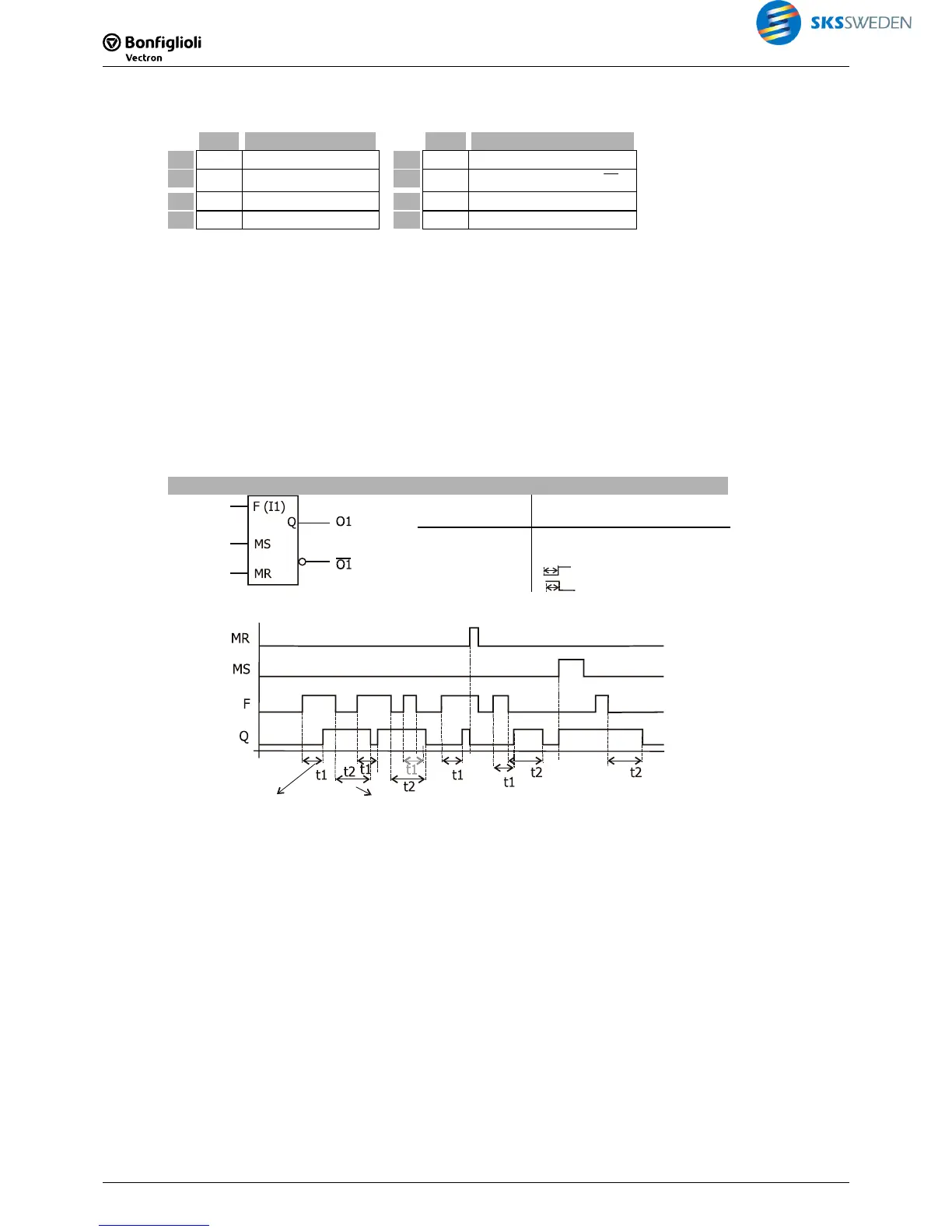

4.5.4 [150,151,152] Delay (non-retriggerable), Master
Type Function
Type Function
I1
b F, edge
O1
b output O1
I2
O2
b
negated output O2 =
1O
I3
b Master Set input
P1
t On delay t1
I4
b Master Reset input
P2
t
Off delay t2
150 [ms], 151 [s] or 152 [min]
Description:
The positive edge at input 1 is transferred to the output after delay t1 (P1), the negative edge
after delay t2 (P2). The delay time starts again with each edge.
TRUE at the Master Set input sets the output to TRUE. TRUE at the Master Reset input sets the
output to FALSE.
Via the output buffer, the output signal is globally available.
Master Set and Master Reset are connected parallel with the function and change the state of
the function as soon as the signal is present.
Delay (non-retriggerable), Master
F
MS
MR
O1
Q
State
x x 1 0 Off (Master)
x 1 0 1 On (Master)
0Æ1 0 0
t1
On delay t1
1Æ0
0 0
t2
Off delay t2
P1
(positive delay)
P2
(negative delay)
