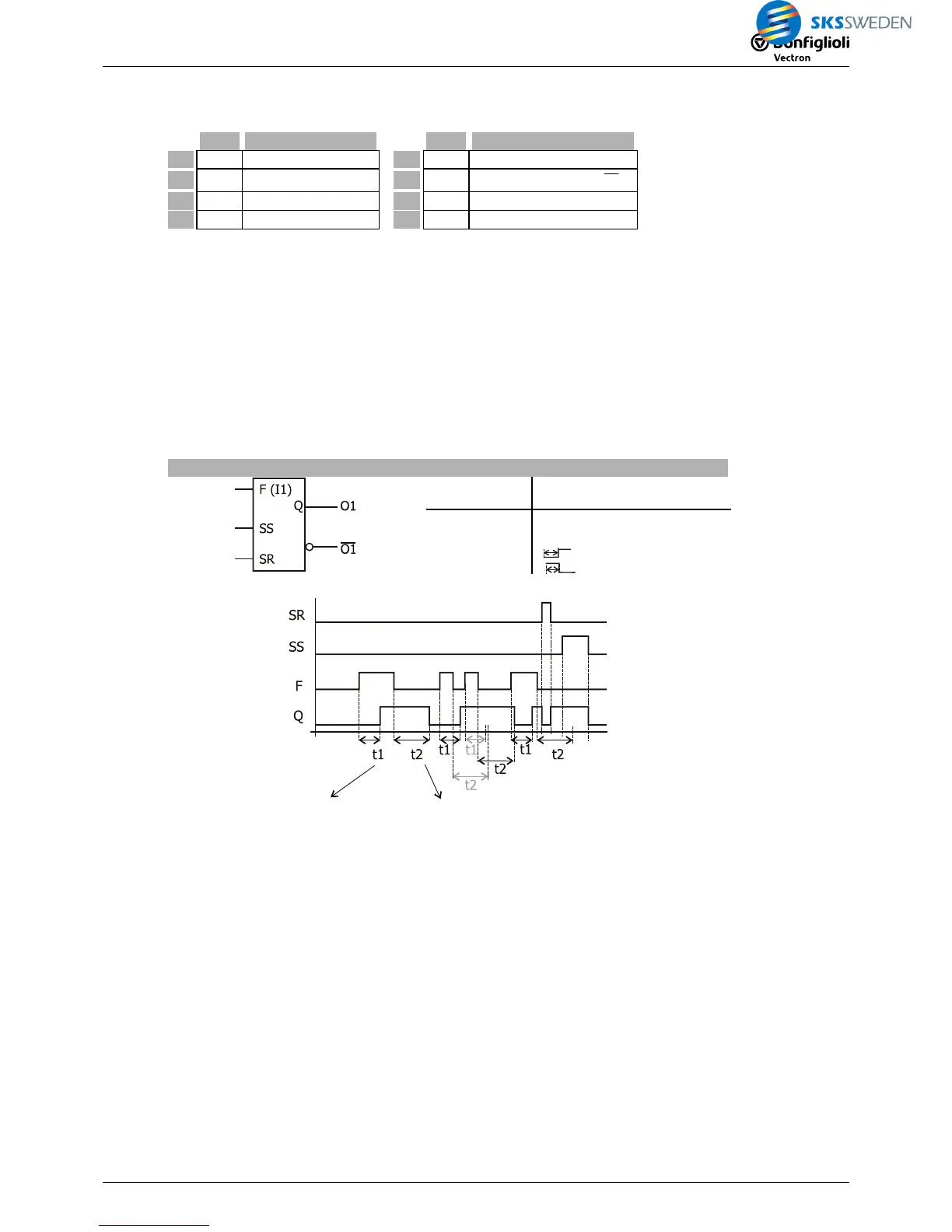

4.5.1 [40,41,42] Delay (retriggerable), Superior
Type Function
Type Function
I1
b F, edge
O1
b output O1
I2
O2
b
negated output O2 =
1O
I3
b Superior Set input
P1
t On delay t1
I4
b Superior Reset input
P2
t Off delay t2
Description:
The positive edge at input 1 is transferred to the output after delay t1, the negative edge after
delay t2. The delay time starts again with each edge.
TRUE at the Superior Set input sets the output to TRUE. TRUE at the Superior Reset input sets
the output to FALSE.
Via the output buffer, the output signal is globally available.
Inputs Superior Set and Superior Reset are connected in series with the function. Levels at in-
put I1 are processed internally. As soon as the Superior Set or Superior Reset is reset, the out-
put is switched to the internally saved value.
Delay Superior (retriggerable), Superior
F
SS
SR
O1
Q
State
x x 1 0 Off (Superior)
x 1 0 1 On (Superior)
0Æ1 0 0
t1
On delay t1
1Æ0
0 0
t2
Off delay t2
P1
(positive delay)
P2
(negative delay)
