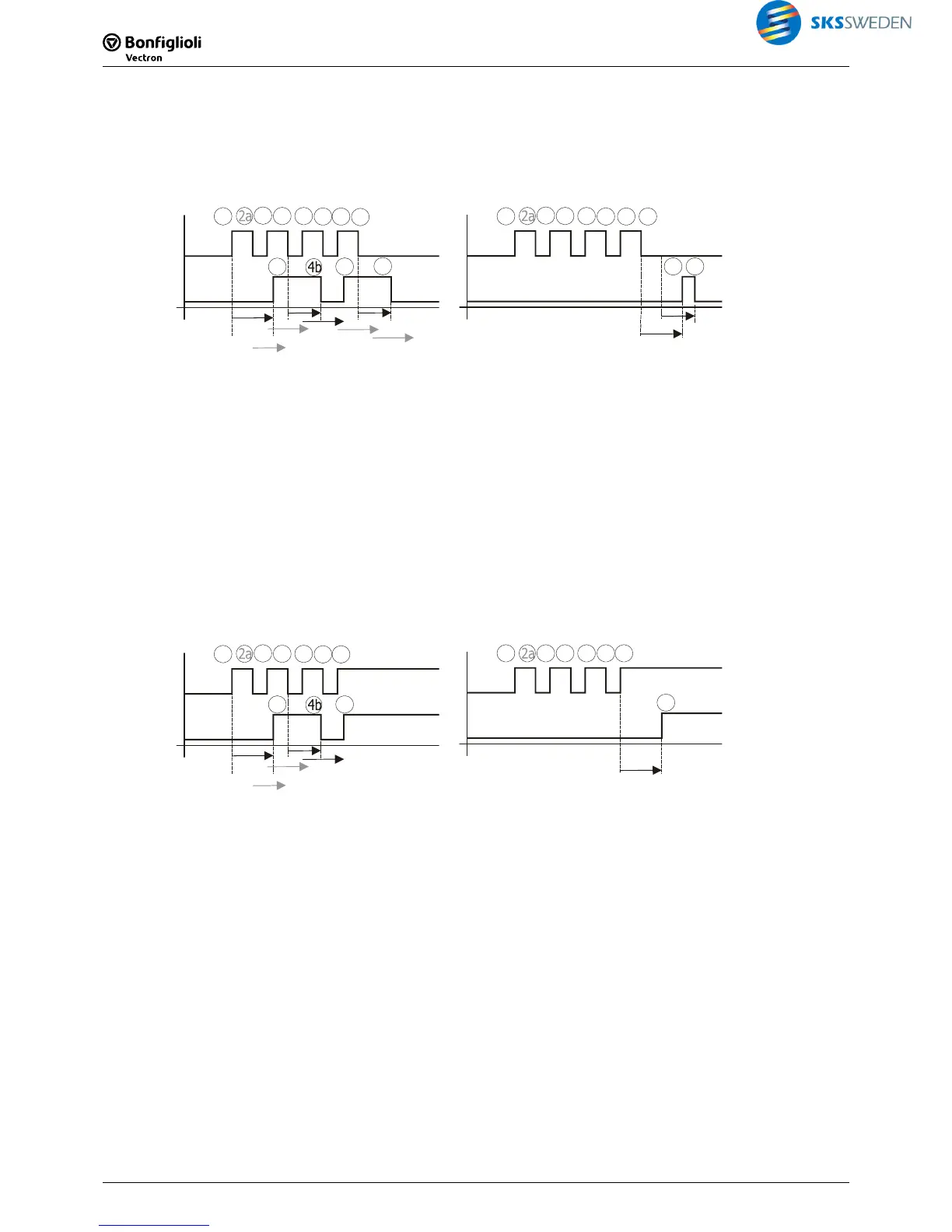

Example 3
4 consecutive square pulses
On times and delays as in example 2
non-retriggerable retriggerable
A
t1
t2
F
11a
t1
3a
4a
5a
6a 7a
8a
11b
8b
t1
t1
t1
t2
t2
5b
A
F
11a
t1
t2
3a
4a 5a
6a
7a
7b 8b
8a
1a starts timer t1
2a starts timer t2
3a stops execution of 2a
1b is output after time t1
4a starts timer t2
5a starts timer t1
4b is output after time t2
6a to 8b: repeated as from 2a
1a starts timer t1
2a starts timer t2
3a starts timer t1 again (retrigger)
4a starts timer t2 again (retrigger)
5a…10a restart timer t1 and t2
9b is output after t1 (referred to 9a)
Example 4
3 consecutive square pulse followed by positive edge
On times and delays as in example 2
non-retriggerable retriggerable
A
t1
t2
F
11a
3a
4a
5a
6a 7a
11b
t1
t1
t2
5b
A
F
1
1a
t1
3a
4a 5a
6a
7a
7b
Processing as in example 3. Edge 5a
switches output "High". Edges 6a and
7a are filtered out due to the quick
succession.
Processing as in example 3. The last posi-
tive edge (7a) maintains the output sig-
nals on "High" level.
