BONFIGLIOLI Agile Applications Manual

VPLC / PLC 8708/10
08/10 VPLC / PLC 87

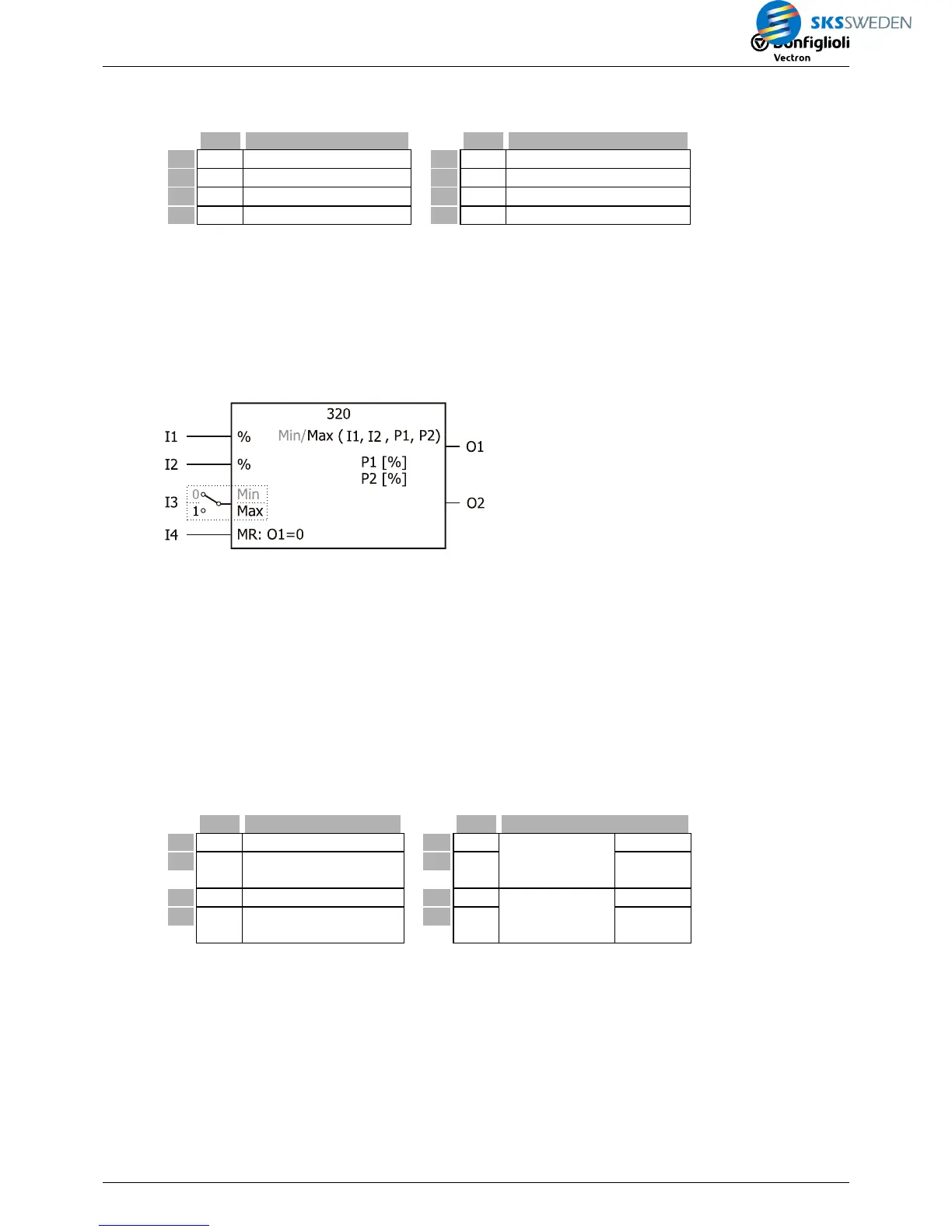

5.2.8 [320] Min/Max
Type Function Type Function
I1 % input value 1 O1 % Min or Max (I1;I2;P1;P2)
I2 % input value 2 O2 % O1 inverted
I3 b FALSE=Min/TRUE=Max P1 % Constant value P1
I4 b Master Reset P2 % Constant value P2
Description:
Based on variables I1 and I2 as well as the constants P1 and P2, the minimum or maximum
value is determined and output at O1.
The maximum value is output if I3 is TRUE.
The minimum value is output if I3 is FALSE.
I3 = FALSE: O1 = -O2 = Minimum (I1, I2, P1, P2)
I3 = TRUE: O1 = -O2 = Maximum (I1, I2, P1, P2)
Note:
P1 and P2 are not evaluated when the maximum or minimum value is determined if they are
set to 0.
I2 is not evaluated when the maximum or minimum value is determined if I2 is connected to
signal source "9 - Zero".
As long as status TRUE is present at I4 (Master Reset), the output value is FALSE.
Note:
Percentages [%] have two decimals.
For example: Value 12345
IN
= 123.45% = 1.2345
5.2.9 [321] Min / Max for position values (Long)
Type Function Type Function
I1 Pos input value 1 O1 Pos Min or Max
(I1;I2;P)
Low word
I2 Pos input value 2 O2 Pos High
word
I3 b FALSE=Min/TRUE=Max P1 Pos
Constant value
Low word
I4 b Master Reset P2 Pos High
word
Description:
Based on variables I1 and I2 as well as constant P, the minimum or maximum value is deter-
mined and output.
The maximum value is output if I3 is TRUE.
The minimum value is output if I3 is FALSE.
I3 = FALSE: O = Minimum (I1, I2, P)
I3 = TRUE: O = Maximum (I1, I2, P)
with O1, P1: Low word
O2, P2 High word
