3.2.6 Controlling an analog output via the output buffer
The outputs of the analog instructions can be output via analog outputs once they have been
defined as general (global) signal sources.
VPLC, AnaOut VPlus
Analog range 553 (ACU)
Analog:
Source MF01A 553 (AGL)
Buffer percent
Buffer number 1
61 – Abs. value PLC outp. percent 1
161 – PLC outp. percent 1
Buffer percent
Buffer number 2
62 – Abs. value PLC outp. percent 2
162 – PLC outp. percent 2

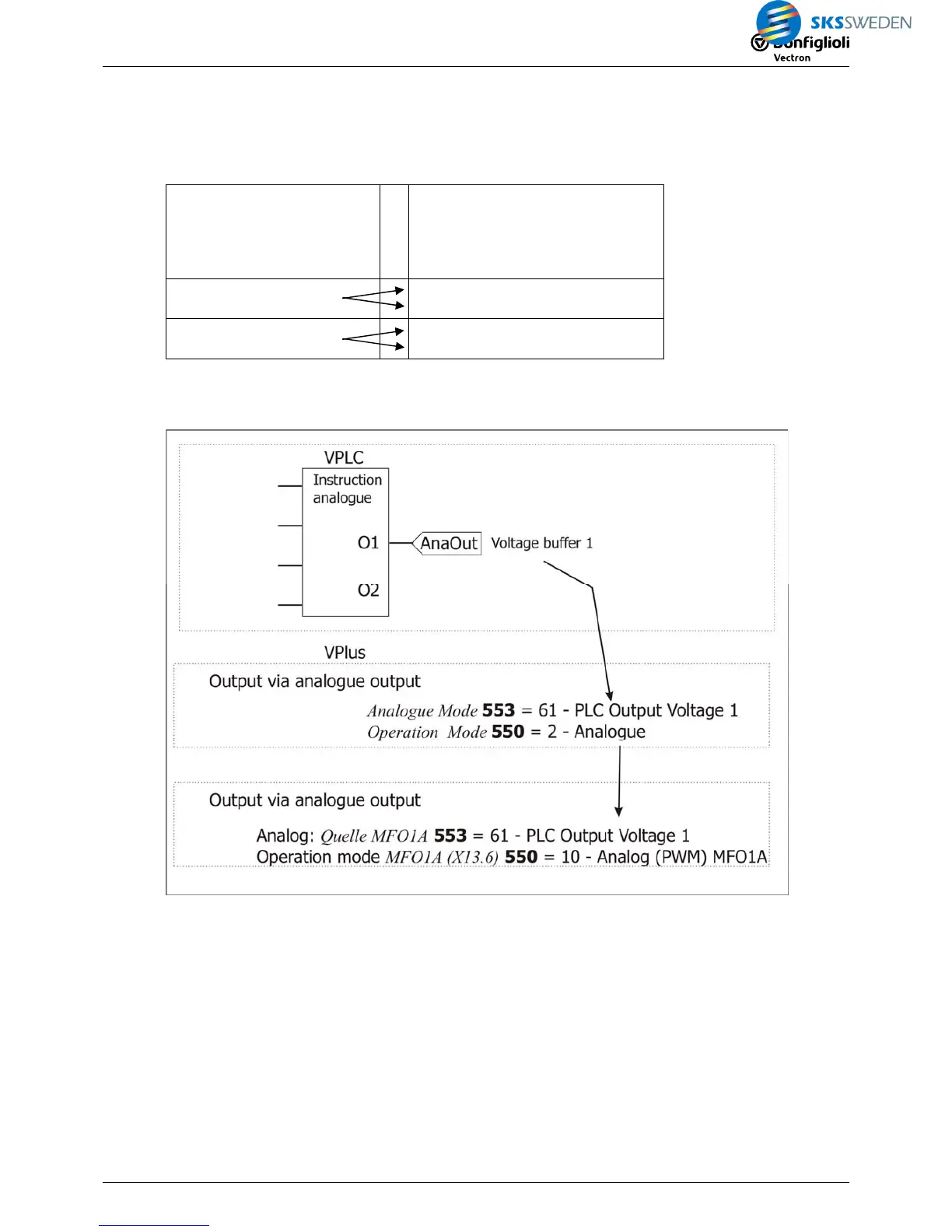

Example: The output signal of an instruction is to be output via analog output MFO1A of the
device.
