VPLC / PLC 5908/10
08/10 VPLC / PLC 59

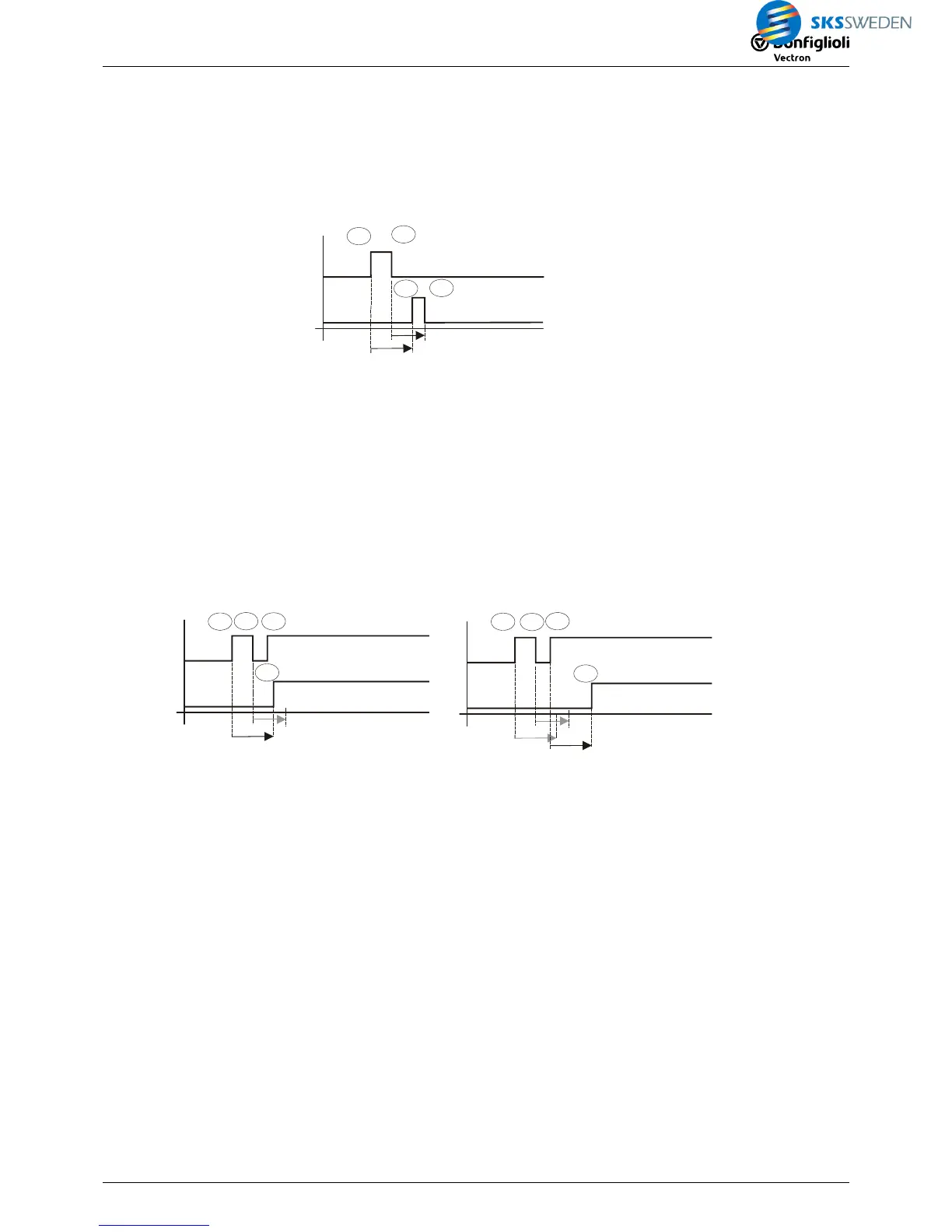

Example 1
1 square pulse
On time input (F): 500 ms
Delay, positive edge: 1000 ms
Delay, negative edge: 800 ms
non-retriggerable retriggerable
Input
A
t1
t2
F
11a
2a
11b
2b
Output
Edge 1a starts timer t1
Edge 2a starts timer t2
Edge 1b is output after a delay of t1 (referred to 1a)
Edge 2b is output after a delay of t2 (referred to 2a)
Example 2
1 square pulse followed by positive edge
On time input (F): 500 ms
Off time input (F): 350 ms
Delay, positive edge: 1000 ms
Delay, negative edge: 800 ms
non-retriggerable retriggerable
A
t1
t2
F
11a
2a
11b
3a
A
t1
t2
F
11a
2a
3a
3b
t1
1a starts timer t1
2a starts timer t2
1b is output after t1
3a (continuous signal) stops execution of
2a
1a starts timer t1
2a starts timer t2
3a starts timer t1 again (retrigger)
3b is output after t1 (referred to 3a)
