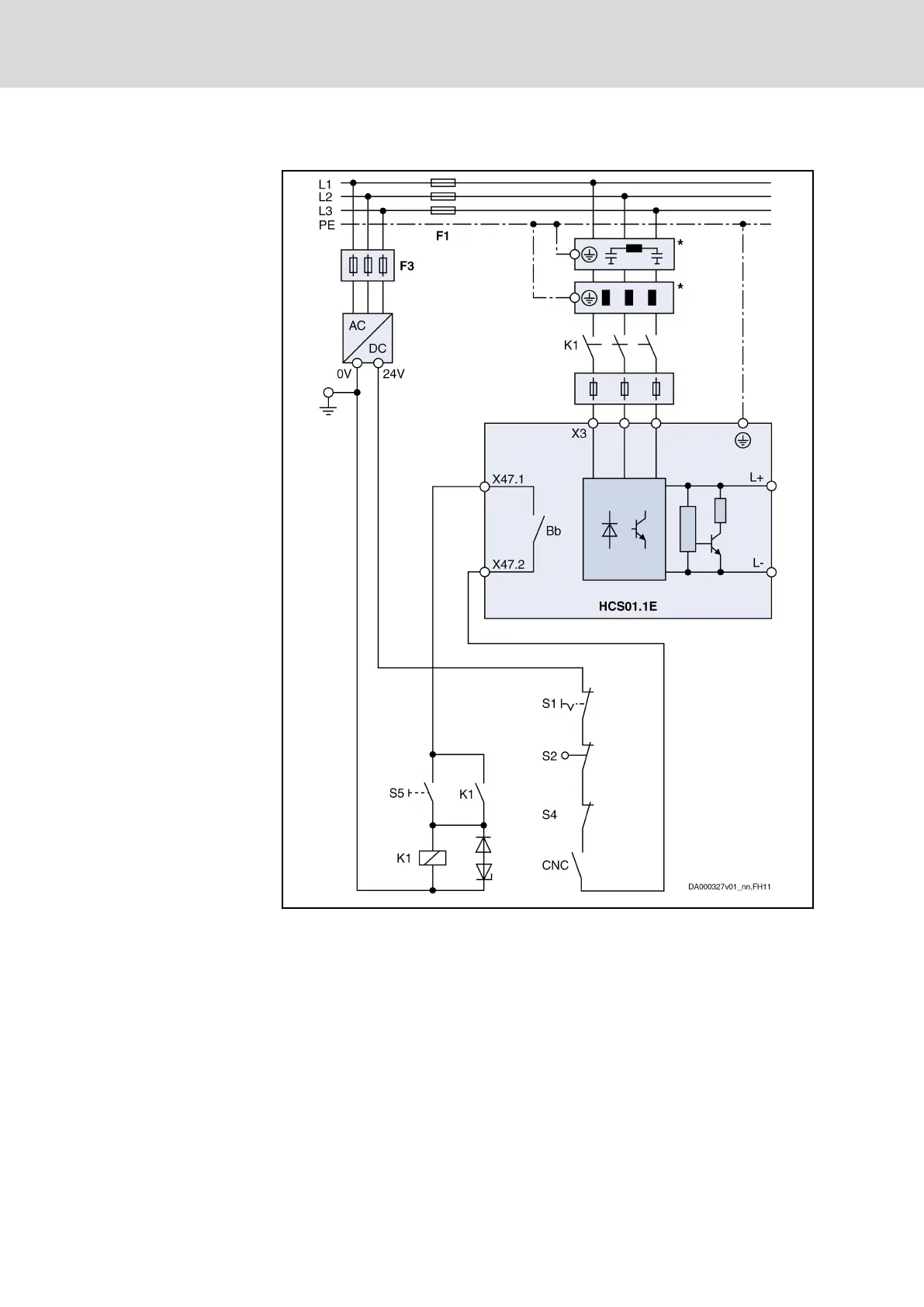

Control Circuit for the Mains Connection
* Optional
Bb Bb relay contact (see chapter "X47, Bb relay contact, module
bus" on page 149)
CNC Lag error message of control unit
F1 Fuse of power supply
F3 Fuse of 24V power supply unit
K1 External mains contactor
S1 Emergency stop
S2 Axis end position
S4 Power Off
S5 Power On
Fig. 4-29: Control Circuit for the Mains Connection
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P104/341
Rexroth IndraDrive CsDrive Systems with HCS01
Combining the individual components
