8.2.5 SUP-E02-MSM-BATTERYBOX battery box
Use
The "SUP-E02-MSM-BATTERYBOX" battery box is a set of accessories
used to operate MSM motors with absolute value encoder (M5) and to back‐
up the encoder data in case voltage is switched off.
Dimensions
Type L
SUP-E02-MSM-BATTERYBOX-NNNN 250 mm
SUP-E02-MSM-BATTERYBOX-L010 1000 mm
SUP-E02-MSM-BATTERYBOX-L030 3000 mm
Tab. 8-8: Dimensions
Scope of supply
Battery box incl. battery.
The battery box is supplied in operational condition.
Battery:
● Type: PRM1-03V6-2600C-D2-LITH-ZNR-50
● 3.6 V; 2600 mAh; lithium
● Lifetime: up to 10 years, depending on load and ambient temperature
● Replacement battery: R911369925 (SUP-E02-MSM-BATTERY)
Parts:
1 Housing screw (M
A
0.7 Nm)
2 Housing cover
3 Battery
4 Housing
5 Battery connector

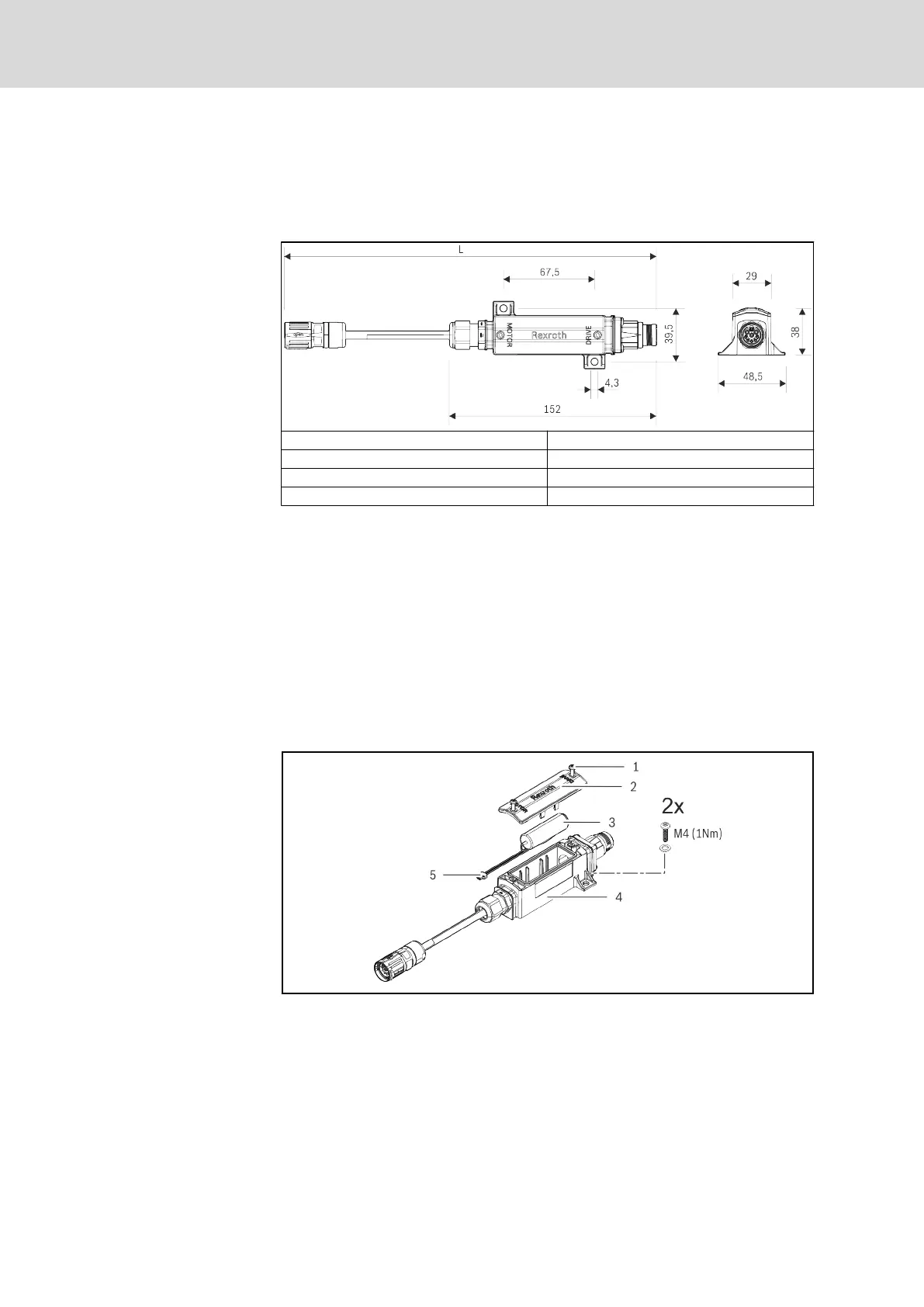

Fig. 8-21: Battery box parts
Mounting
To fasten the battery box, use mounting screws 2 × M4 with washer and
screw lock. Mounting screws are not contained in the scope of supply and
have to be adjusted to the assembly situation.
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P266/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
