Bosch Rexroth IndraDrive CsDrive System with HCS01 - X3, Mains Connection HCS01.1 E-W0054-X-03

X3, mains connection HCS01.1E-W0054-x-03

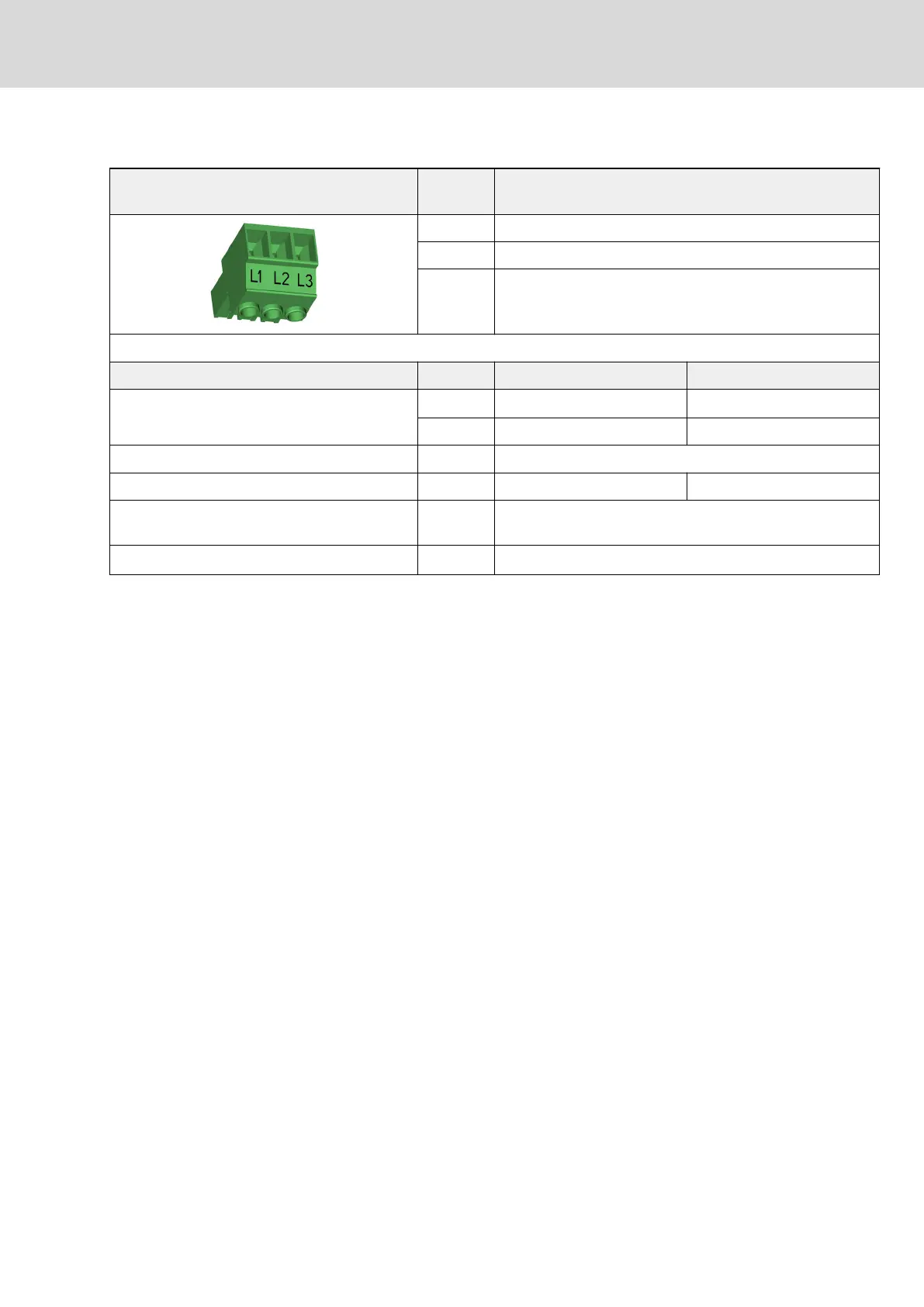

View Identifica‐
tion
Function
L1 Connection to mains power supply (L1)
L2 Connection to mains power supply (L2)
L3 Connection to mains power supply (L3)
Terminal block Unit min. max.
Connection cable
Stranded wire
mm
2
0.75 10.0
AWG 18 8
Stripped length mm 14
Tightening torque Nm 1.5 1.7
Occurring current load and minimum required
connection cross section
See technical data of device used (I
LN
and A
LN
)
Occurring voltage load See technical data of device used (U
LN
or U
LN_nom
)
Tab. 6-3: Function, pin assignment, properties
