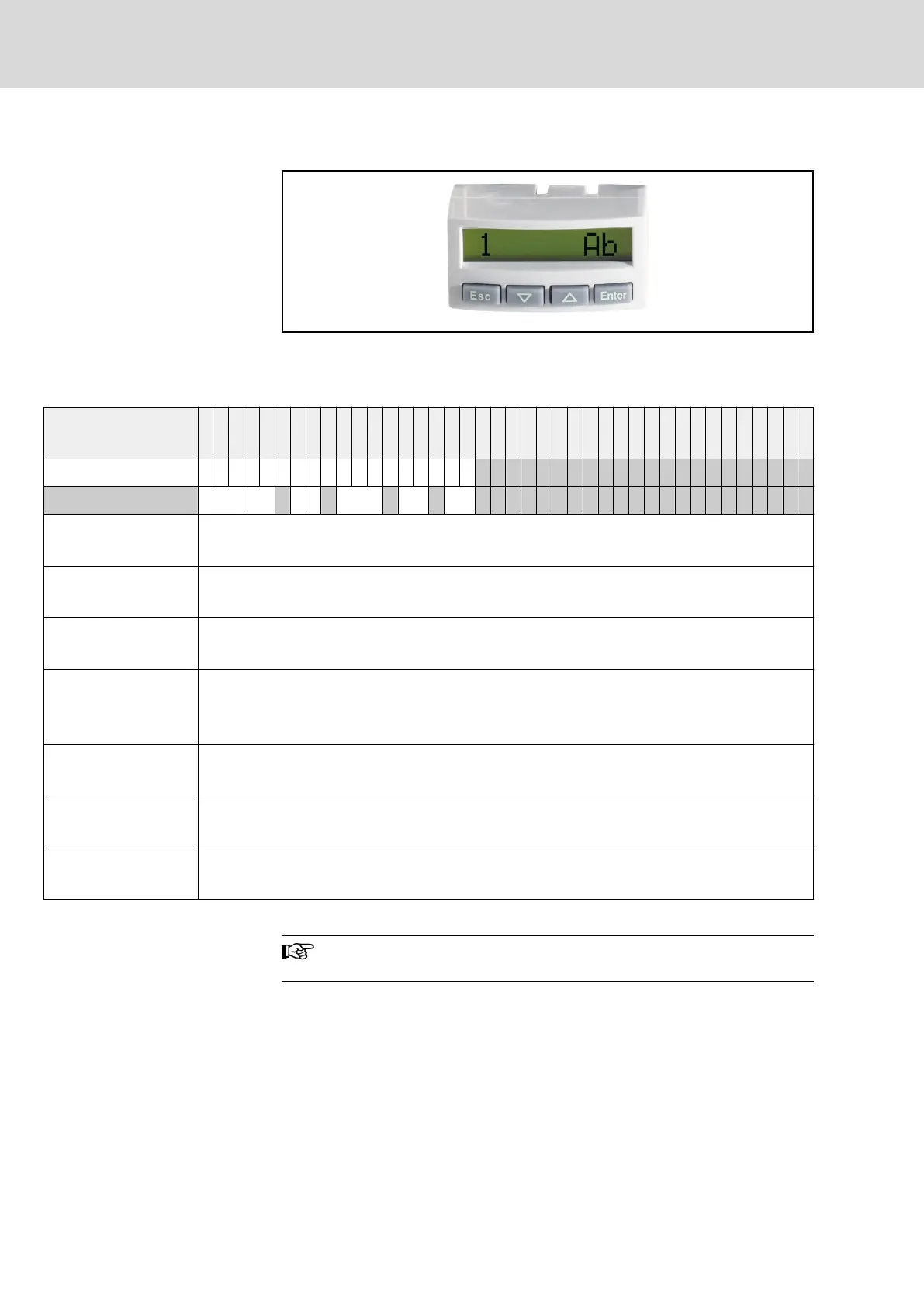

HAP01 control panel
View
Fig. 1-2: HAP01 control panel
Type code
Short type designation 1 2 3 4 5 6 7 8 9
1
0 1 2 3 4 5 6 7 8 9
2
0 1 2 3 4 5 6 7 8 9
3
0 1 2 3 4 5 6 7 8 9
4
0
Example: H A P 0 1 . 1 N - 0 1 8 - N N - F W
① ② ③④ ⑤ ⑥ ⑦
① Product:
HAP = Control panel
② Series:
01 = 01
③ Design:
1 = 1
④ Additional option:
A = ADVANCED control panel with memory card slot
N = Standard control panel without memory card slot
⑤ Memory size:
018 = 18 MB (example)
⑥ Other design:
NN = None
⑦ Firmware:
FW = Firmware must be ordered as a separate subposition
Tab. 1-9: HAP01 type code
The figure illustrates the basic structure of the type code. Our
sales representative will assist you with the versions available.
