8.3.5 DC bus capacitor units HLC
Type code

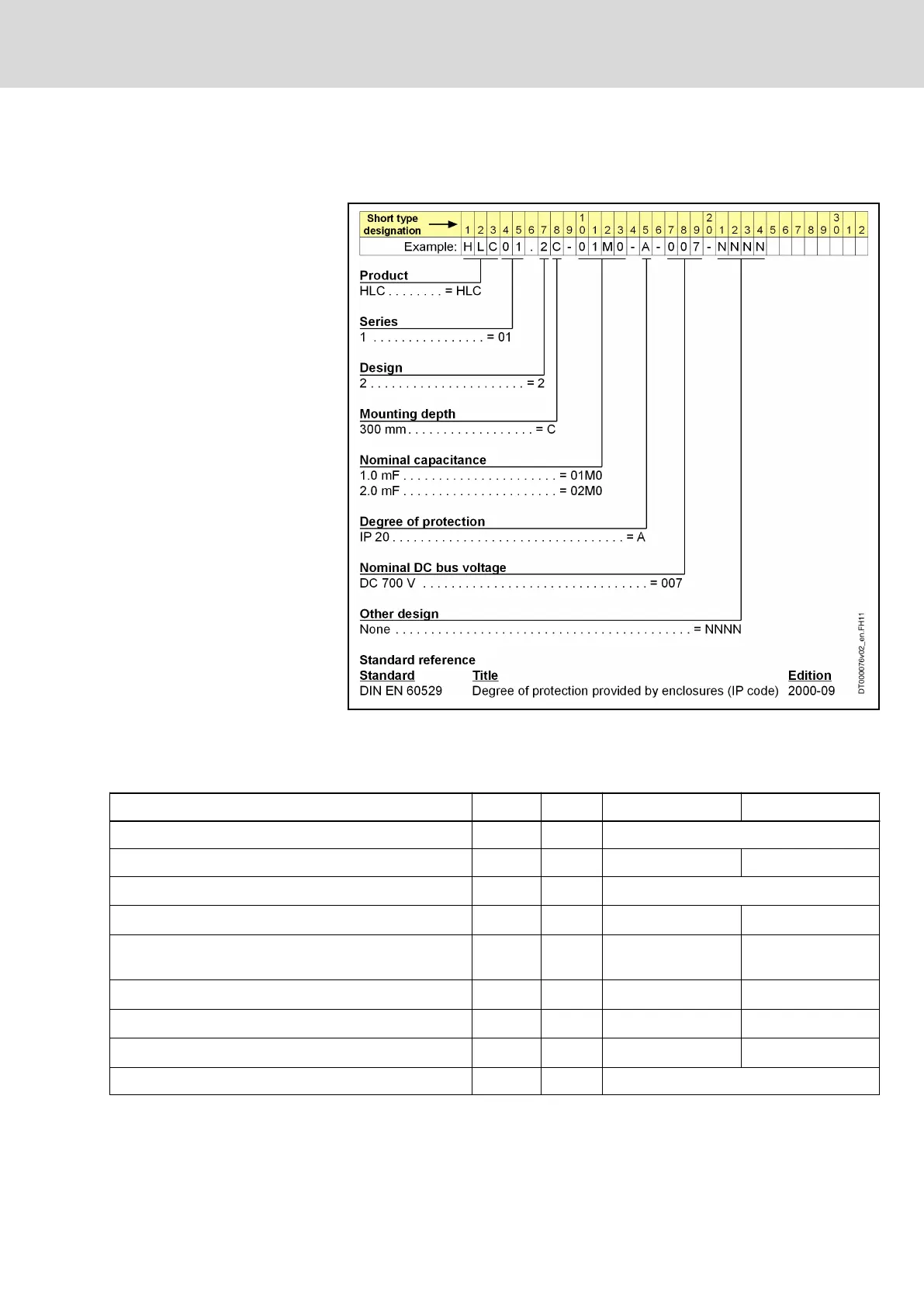

Fig. 8-58: Type code
Technical data
Technical data
Description Symbol Unit HLC01.2C-01M0 HLC01.2C-02M0
Allowed mounting position G1
Mass m kg 2.2 2.7
Allowed input voltage U
DC
V DC 254 … 750
DC bus capacitance C
DC
mF 1 ±20% 2 ±20%
Power dissipation at continuous current and continuous
DC bus power respectively (UL)
P
Diss_cont
W 4.10 5.28
Maximum discharge time from U
R_DC_On
to DC 50 V t
entl_ZK
sec 238 378
Allowed input current at L+ L- I
max(rms)
A 15 30
Insulation resistance (at DC 500 V) R
is
Mohm > 10 > 10
Cooling Natural convection
Tab. 8-37: HLC - technical data
