7.1.6 Sx - Safe Motion, Safe Motion Bus
Display elements
H25 Bicolor LED: Safety technology status
H26 Bicolor LED: Connection status
X41, X42, X43 Not available for "Safe Motion Bus" option

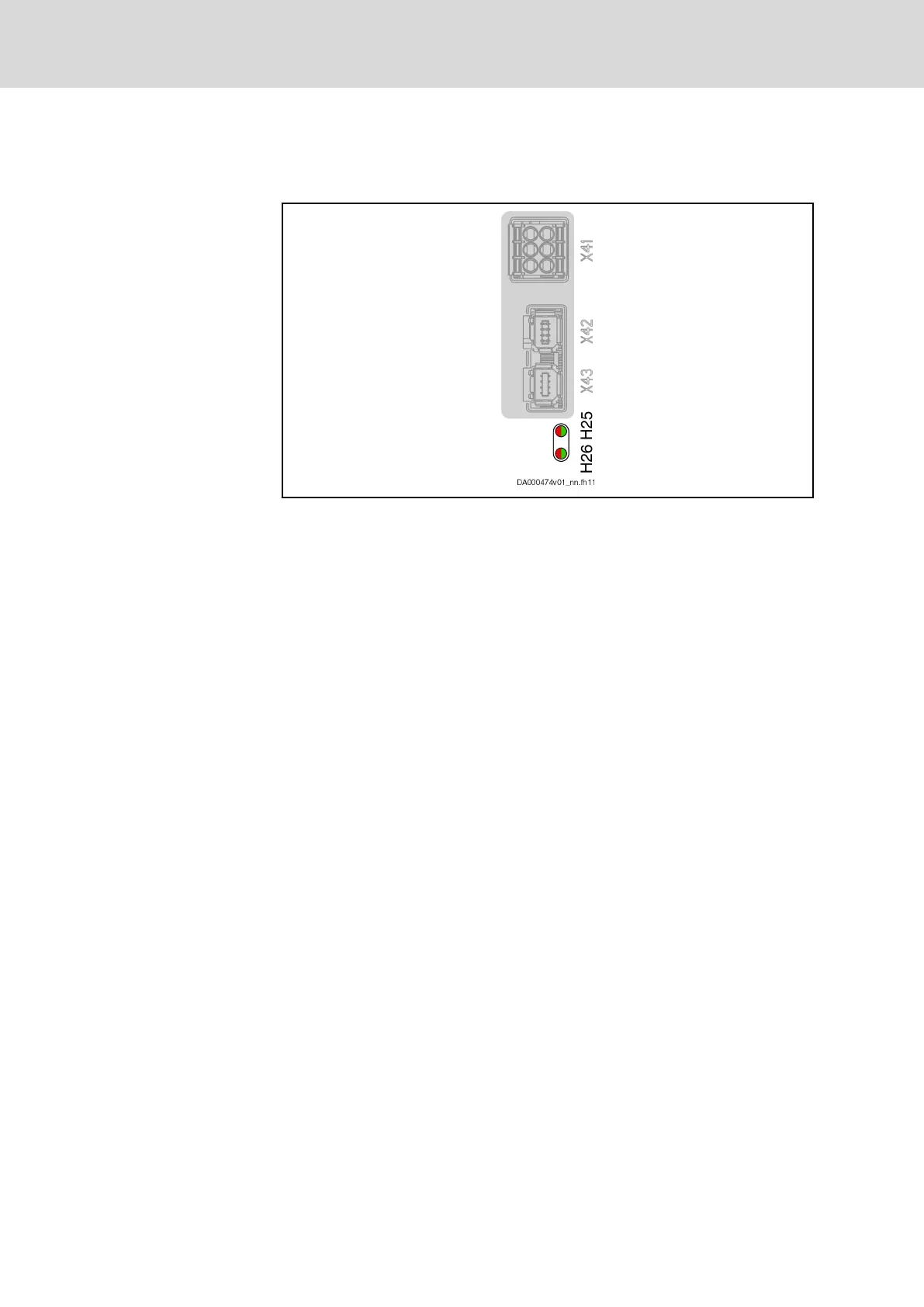

Fig. 7-25: Safe Motion, display elements
