8.2.12 Snap-on ferrite (HAS05.1-015)
Use
The accessory HAS05.1-015-NNN-NN (snap-on ferrite) ensures that
Class C3 of the EMC Directive EN 61800-3 is complied with for braking resis‐
tors installed outside of the control cabinet.
The snap-on ferrite is designed for the following components:
■ HCS01.1E-W0018 + HLR01.2N-01K0-N68R0-E-007
■ HCS01.1E-W0028 + HLR01.2N-01K0-N68R0-E-007
■ HCS01.1E-W0054 + HLR01.2N-01K0-N28R0-E-007

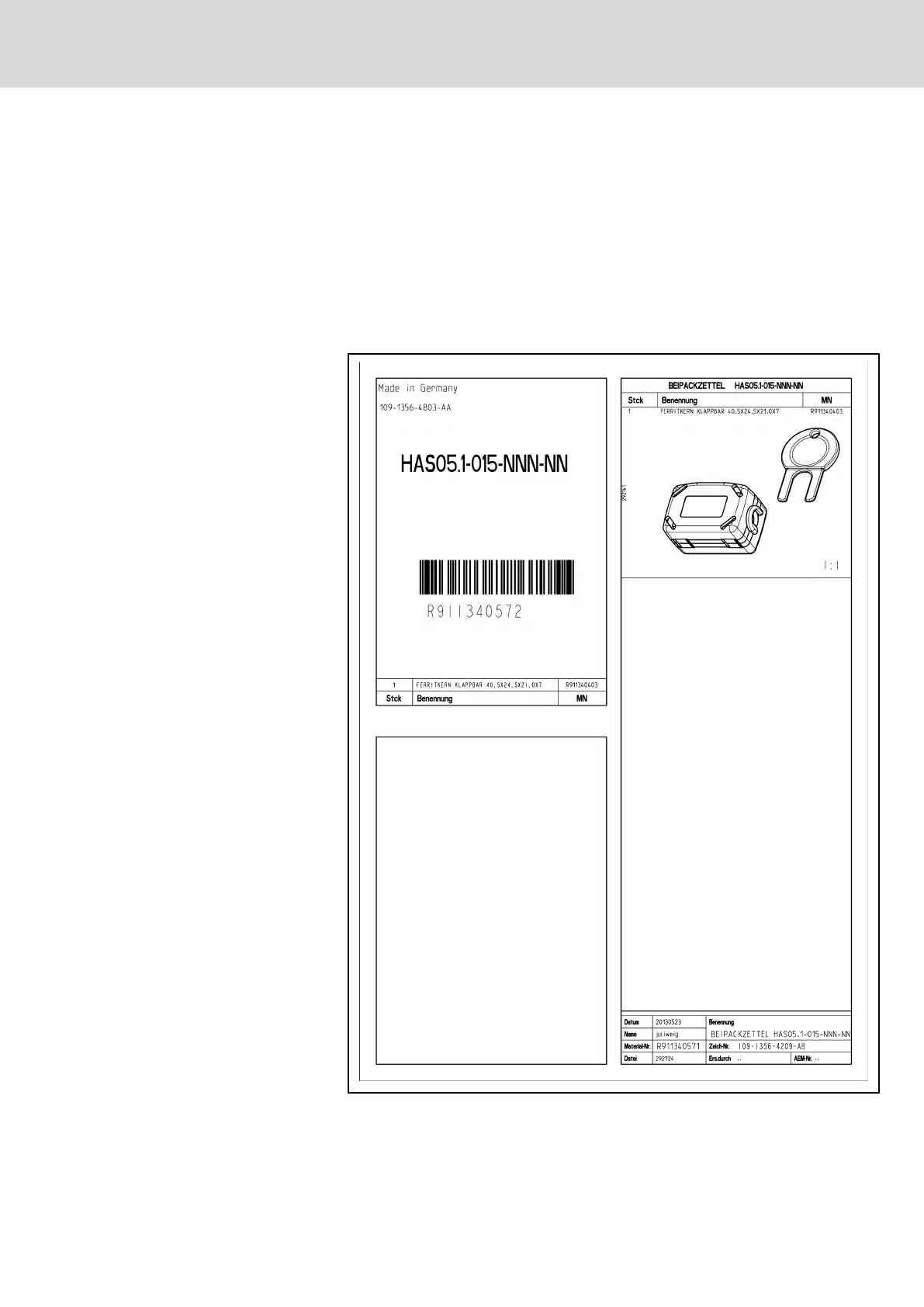

Product insert
Fig. 8-39: Product insert
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 287/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
