HIPERFACE® (12 V supply voltage)
See the connection diagram for how to connect the encoder system.

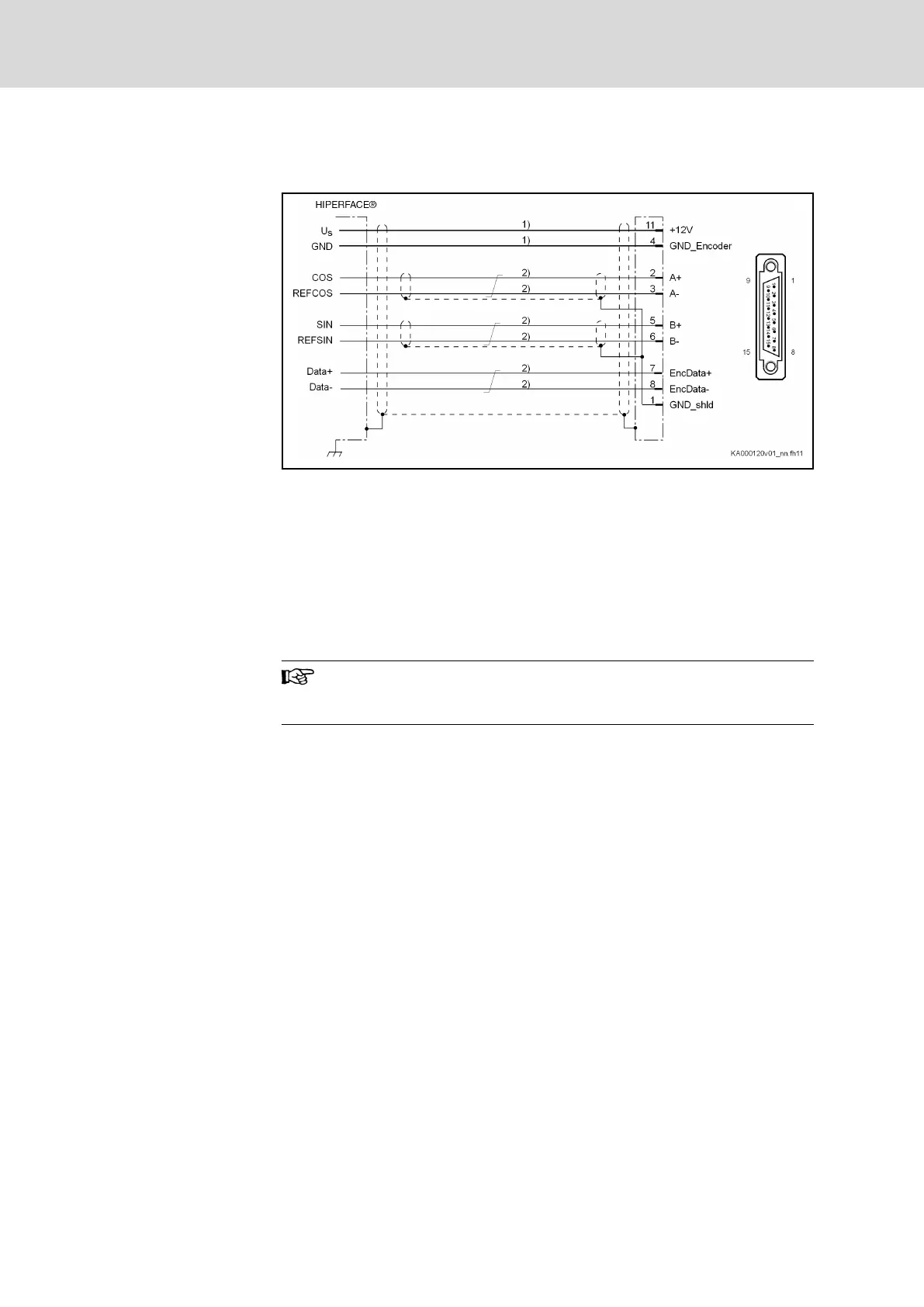

Connection diagram
1) Line cross section ≥ 0.5 mm²; observe allowed encoder cable
length
2) Line cross section ≥ 0.14 mm²
Fig. 7-3: HIPERFACE® encoder system connection diagram
Power supply
The HIPERFACE® encoder system needs a supply voltage of 12 V. This
supply voltage is made available via the EC interface.
Technical specification of the power supply: See chapter "12 V power supply"
on page 195
Please observe that the third-party encoder used has to be suited
for the voltage available at the EC interface as the encoder supply
voltage.
Cable length
The maximum possible cable length depends on several factors: See chapter
"Encoder cable length" on page 197
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P184/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
