7.1.11 Relay contacts
Relay Contact Type 2

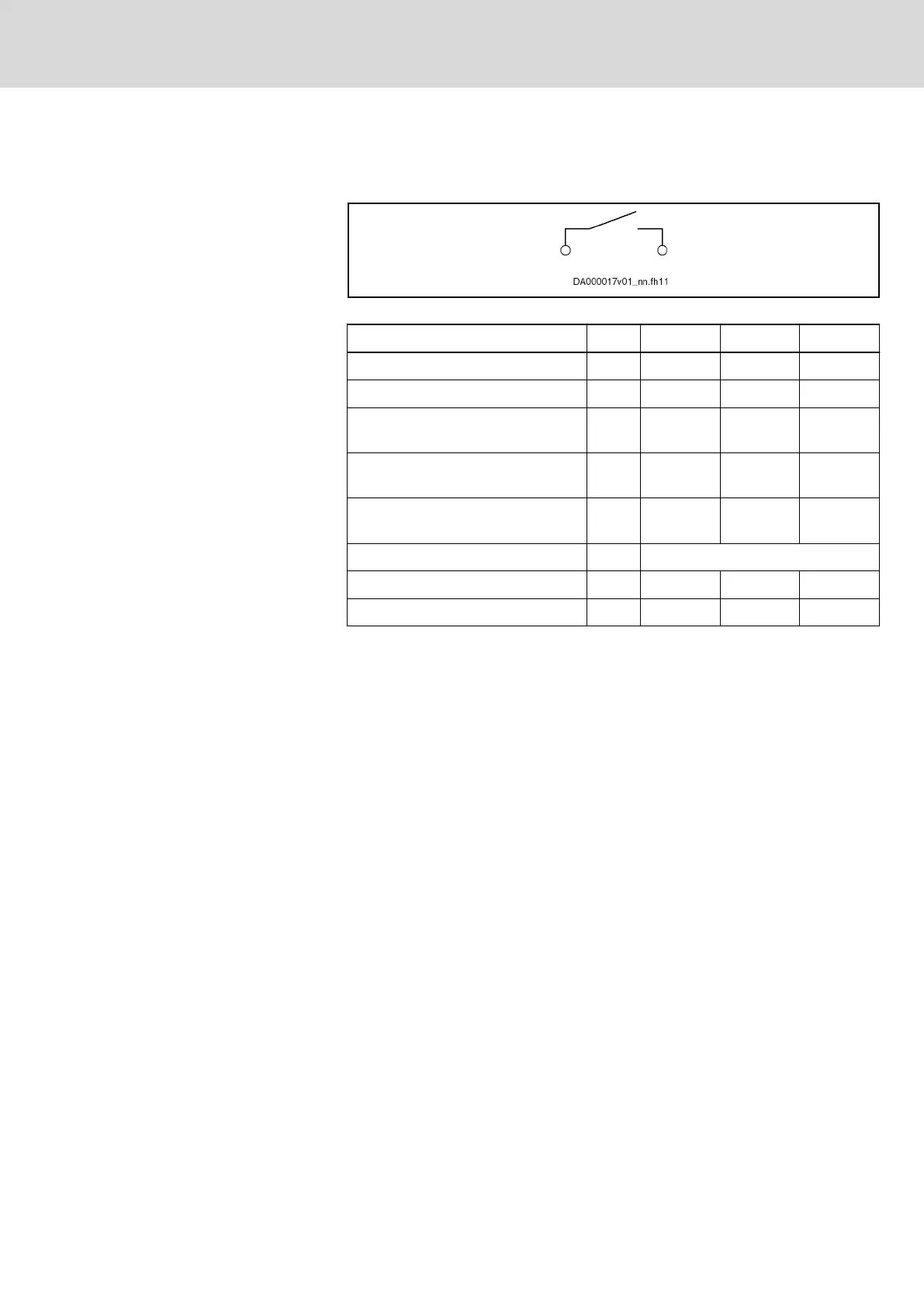

Fig. 7-34: Relay contact
Data Unit Min. Typ. Max.
Current carrying capacity mA 10 1000
Voltage load capacity V 30
Contact resistance at minimum cur‐
rent
mΩ 1000
Switching actions at max. time con‐
stant of load
1 × 10
6
Number of mechanical switching cy‐
cles
1 × 10
8
Time constant of load ms ohmic
Pick up delay ms 10
Drop out delay ms 10
Tab. 7-39: Relay Contacts Type 2
