Shield connection
Shield connection plates
Special plates are used for shield connection of cables that are connected to
the device. The plates are part of the HAS09 accessories and are screwed to
the device.
A Control line shield connection
B Motor cable shield connection

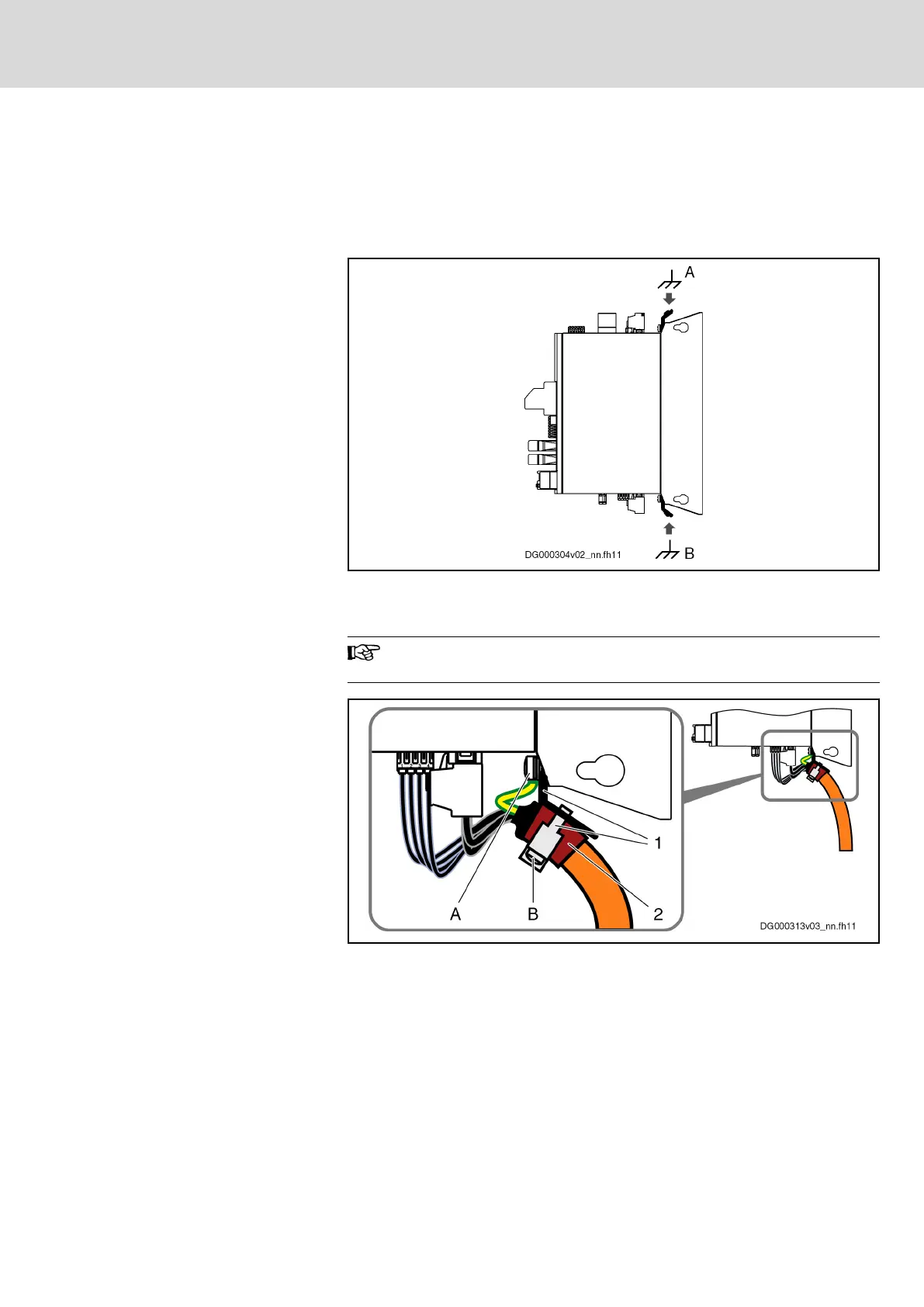

Fig. 6-11: Shield connection
The shield connection should not be used for strain relief of the
cables. Mount a separate strain relief near the drive controller.
Motor cable shield connection
1 Plates
2 Shield of motor cable
A Screw (M5×12 or M5×16); tightening torque: 5 Nm
B Screw (M5×30); tightening torque: 1 Nm
Fig. 6-12: Motor cable shield connection
