ADVANCED Control Panel HAP01.1A
For a detailed description of the control panel, see the documen‐
tation "Application Manual, Functions" of the firmware used.

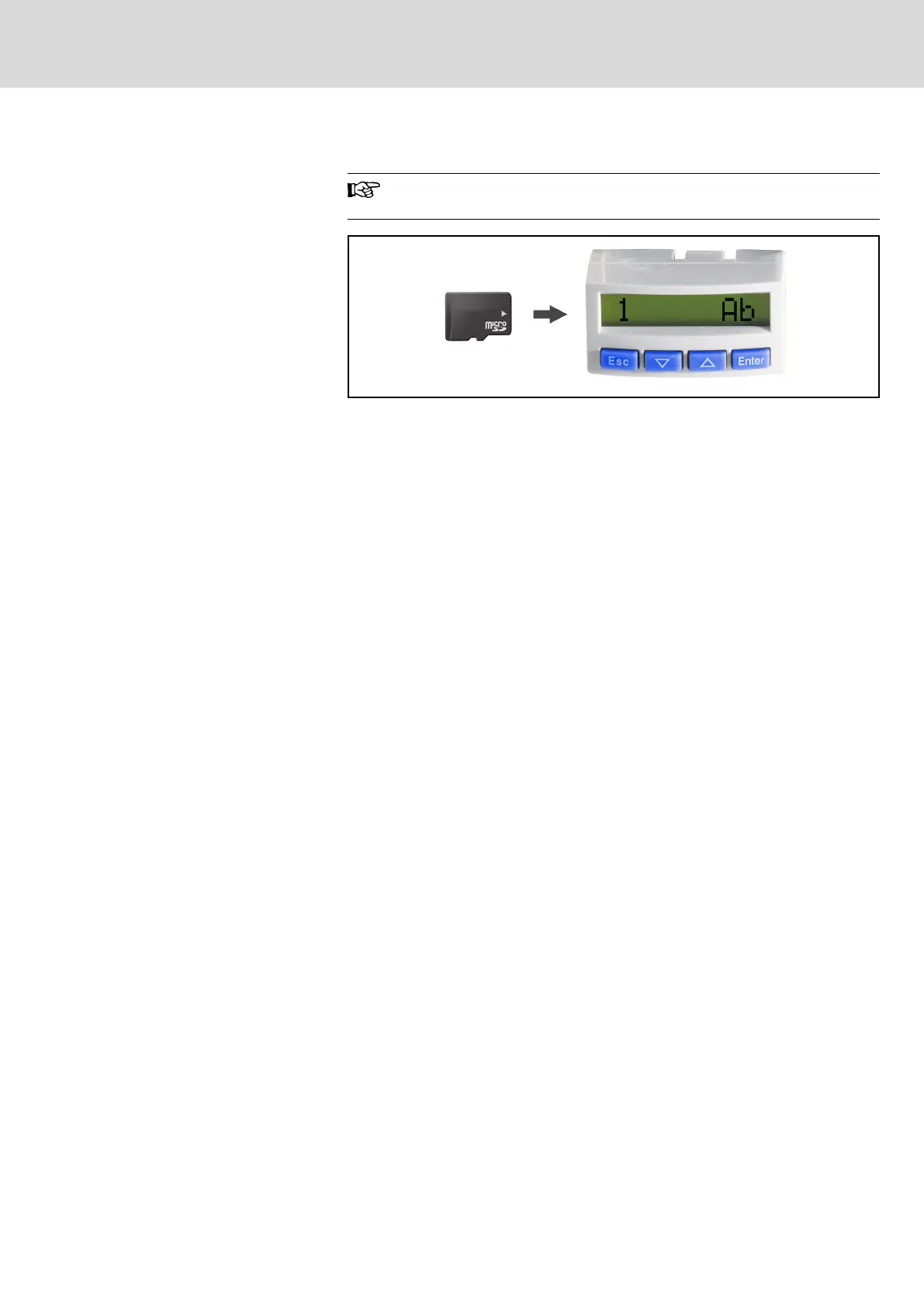

Fig. 7-36: ADVANCED Control Panel HAP01.1A
Description
The ADVANCED control panel HAP01.1A
● has a slot for a microSD memory card (PFM04.1)
● has a single-line display
● is suited for hot plug
● can be used as programming module
● The display shows operating states, command and error diagnoses and
pending warnings.
● Using the four keys, the commissioning engineer or service technician
can have extended diagnoses displayed and trigger simple commands.
● Memory:
– 2 MB (data, flash memory)
– 16 MB (code, flash memory)
– 32 kB (retain data, FRAM memory)
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 231/341
Rexroth IndraDrive CsDrive Systems with HCS01
Technical data of the components
