8.3.4 External braking resistors HLR
Types

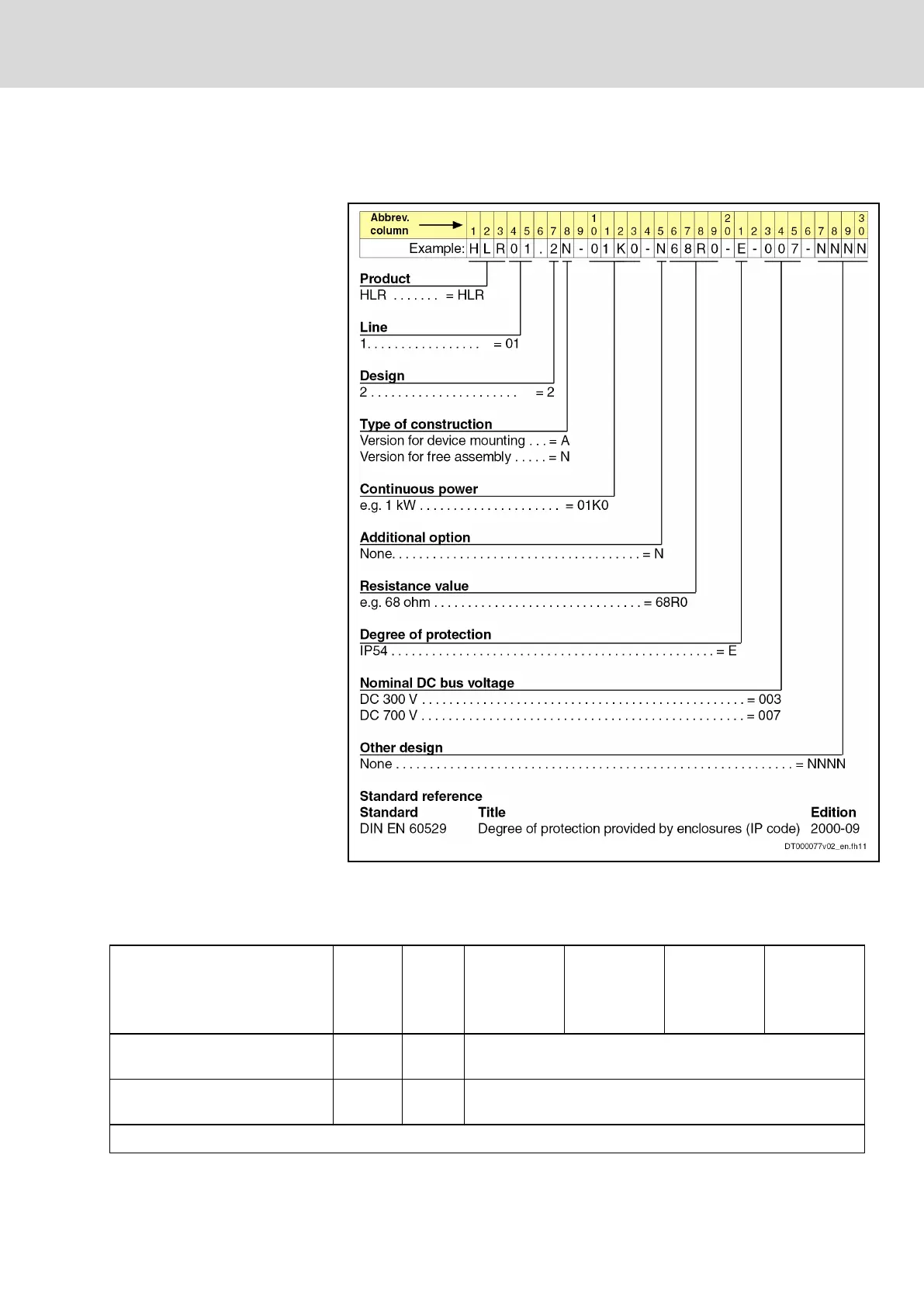

Fig. 8-50: Type code
Data
Technical data - currents, voltages, power
Description Symbol Unit
HLR01.2N-01
K0-N28R0-
E-007-NNNN
Preliminary
HLR01.2N-01
K0-N68R0-
E-007-NNNN
Preliminary
HLR01.2N-0K
06-N100R-
E-003-NNNN
HLR01.2N-0K
06-N180R-
E-007-NNNN
Degree of protection according to
IEC 60529
IP IP54
Ambient temperature range for
operation with nominal data
T
a_work
°C 0...40
Last modification: 2014-05-26
