HLR01.2N-0K06-N100R, ...-N180R dimensions

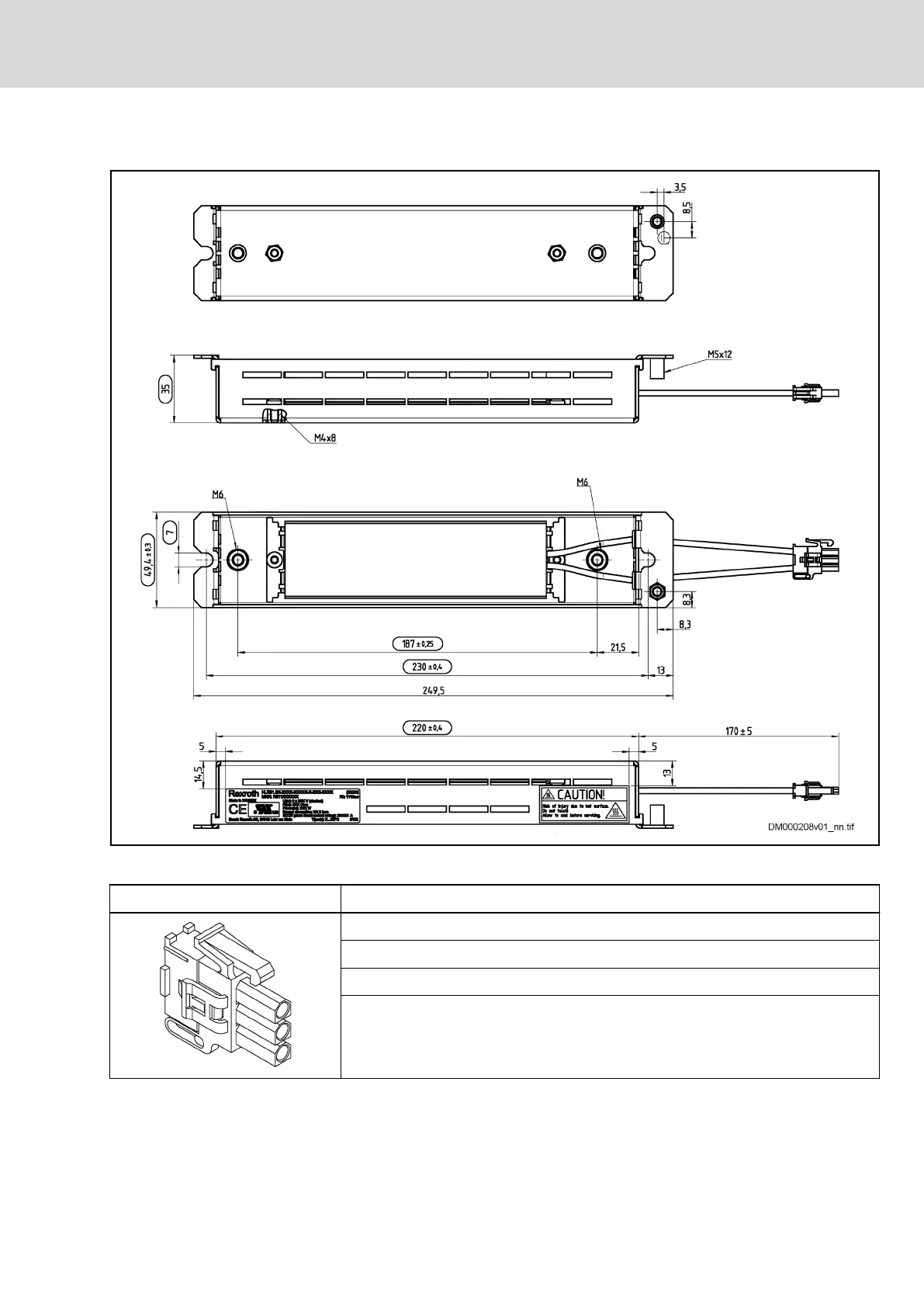

Fig. 8-54: Dimensions
Connector Data
Manufacturer: TE connectivity Ltd.
Type: Mini-Universal MATE-N-LOK 2
Number: 794186-1
Contacts (female):
● Number: 794223-1
● Connection cross section: 0.5 … 1.4 mm
2
(16 … 20 AWG)
Tab. 8-34: Connector
