Dimensions (with upright mount‐
ing)
A Minimum mounting clearance

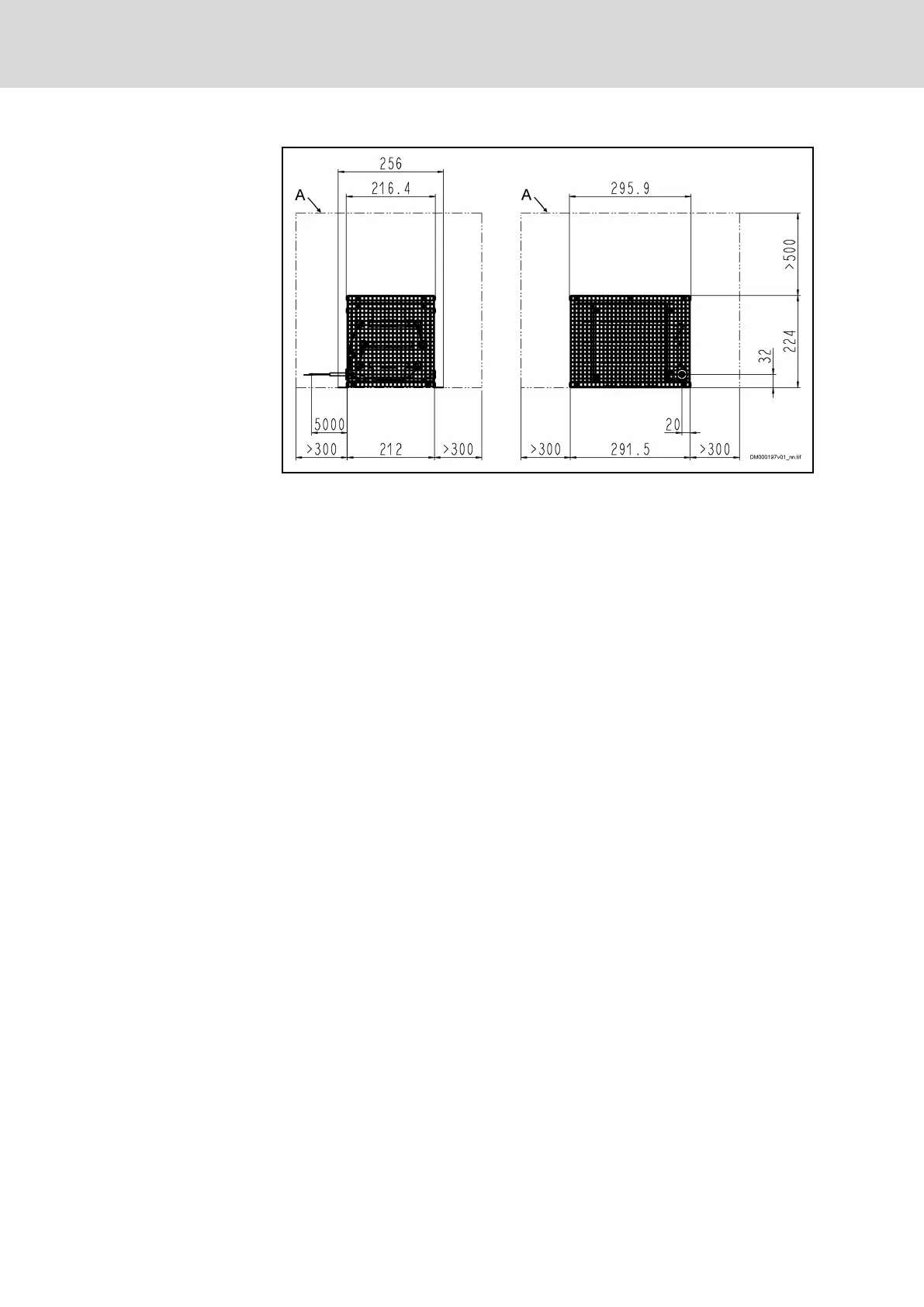

Fig. 8-53: Dimensions (with upright mounting on the floor)
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P304/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
