Digital Outputs (Safety Technology L Options)
The digital outputs are compatible with digital inputs of types 1, 2 and 3
(IEC 61131).

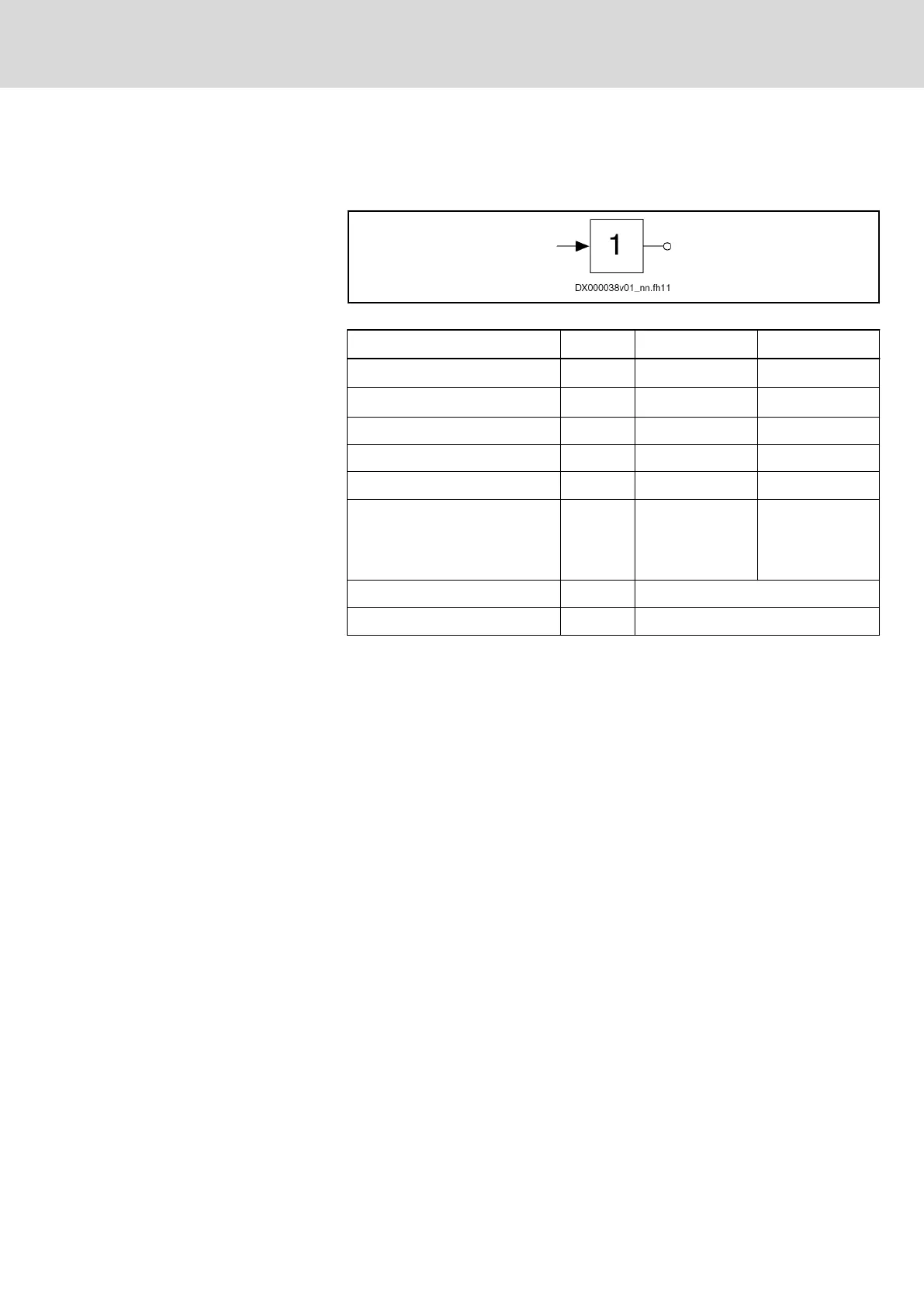

Fig. 7-31: Symbol
Data Unit Min. Max.
Supply voltage (U
ext
) V 19,2 30
Current consumption (I
ext
) mA 700
Output voltage ON V 18,2 30
Output voltage OFF V 5
Output current ON mA 350
Allowed energy content of con‐
nected inductive loads, e.g. re‐
lay coils; only allowed as single
pulse
mJ 400
Short circuit protection Available
Overload protection Available
Tab. 7-33: Digital Outputs (Safety Technology L Options)
