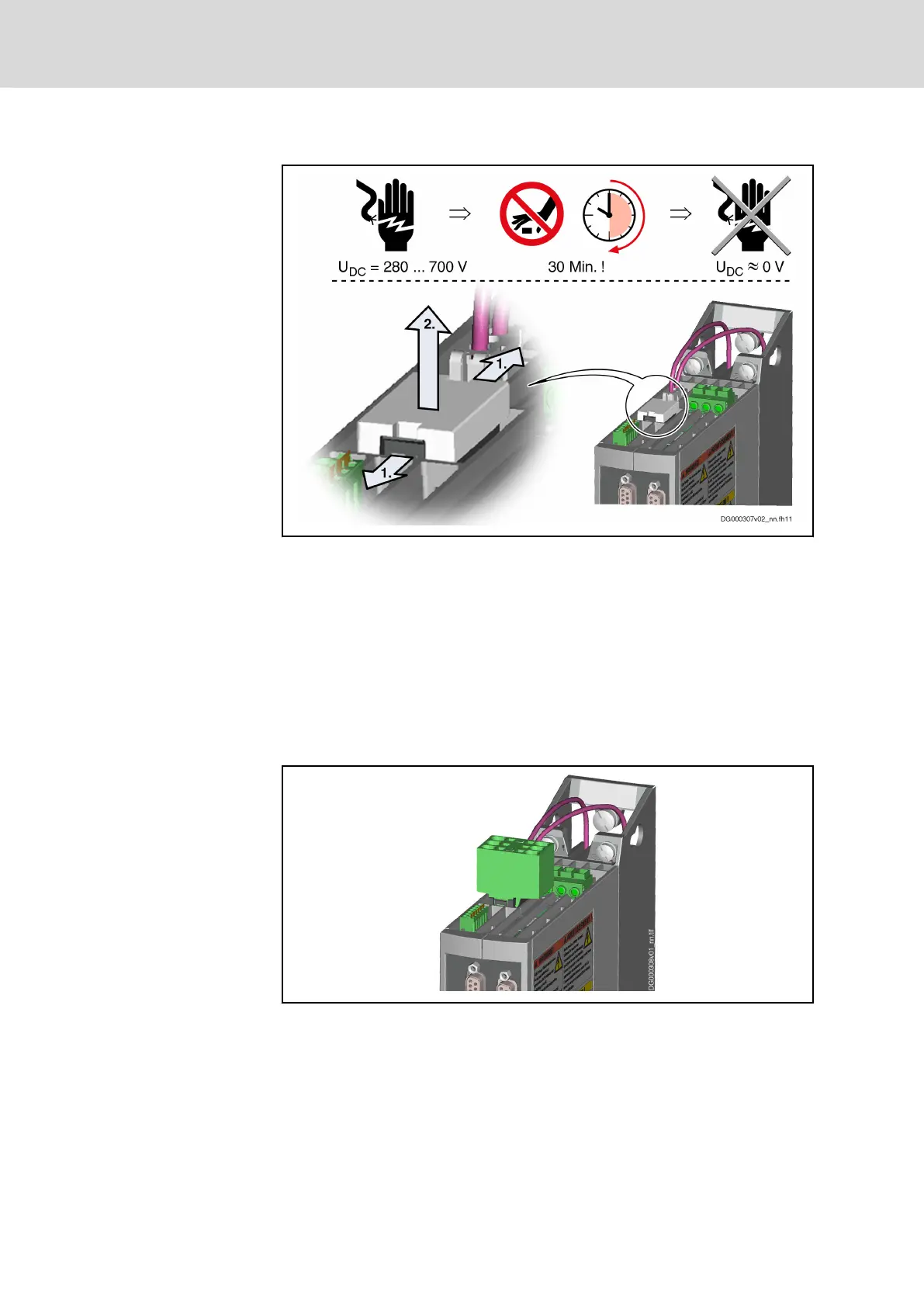

How to Remove the Touch Guard:
U
DC
DC bus voltage
30 Min. ! Before accessing the device, wait at least 30 minutes after
switching off the supply voltages to allow discharging.
1. With a small screwdriver (blade width < 3 mm), push the fixing
device outwards and simultaneously lever out the touch guard.
2. Pull off touch guard.
3. Store the touch guard in a place where you can find it later on.
If you want to operate the device without DC bus connector,
you have to plug the touch guard on connection point X77
again.
Fig. 6-9: How to Remove the Touch Guard
Fig. 6-10: DC bus connector at device
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P152/341
Rexroth IndraDrive CsDrive Systems with HCS01
Mounting and installation
