Dimensions

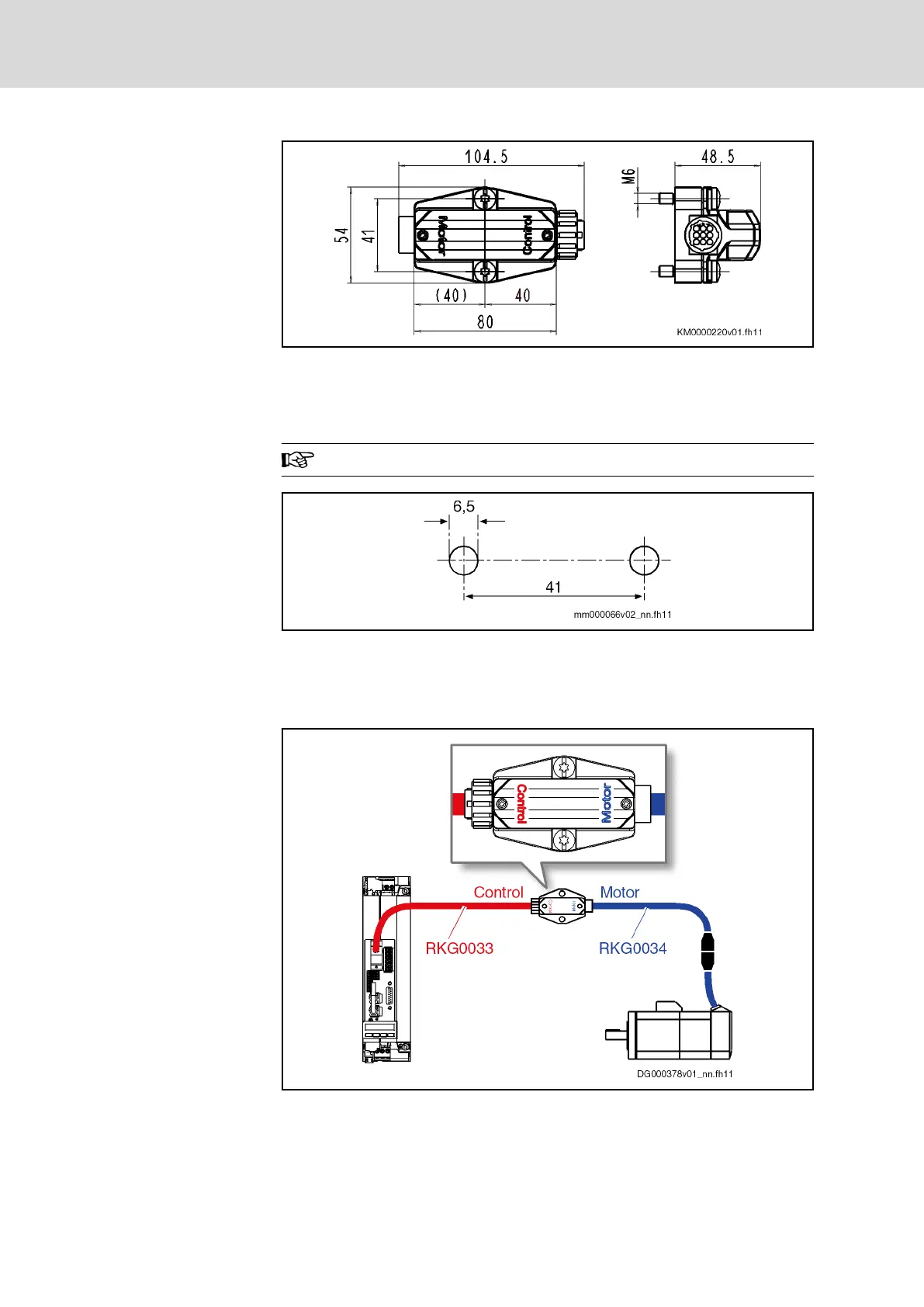

Fig. 8-14: Dimensions
Weight
120 g
Mounting
Install the battery box in the immediate vicinity of the motor.
Fig. 8-15: Drilling diagram for battery box
● Assembly screws: M6×30
● Tightening torque M
A
: 3 Nm
Cabling
RKG0033 Encoder cable
RKG0034 Extension cable (optional)
Fig. 8-16: Cabling of battery box
