Battery Type: ER6C, 3.6 V; 1800 mA, lithium
Lifetime: Depends on load and ambient temperature
A Standby mode using battery with a battery current of 90 µA
I
Batt
Battery current
L
Batt
Battery lifetime in years
t
on
Drive controller On time
t
off
Drive controller Off time

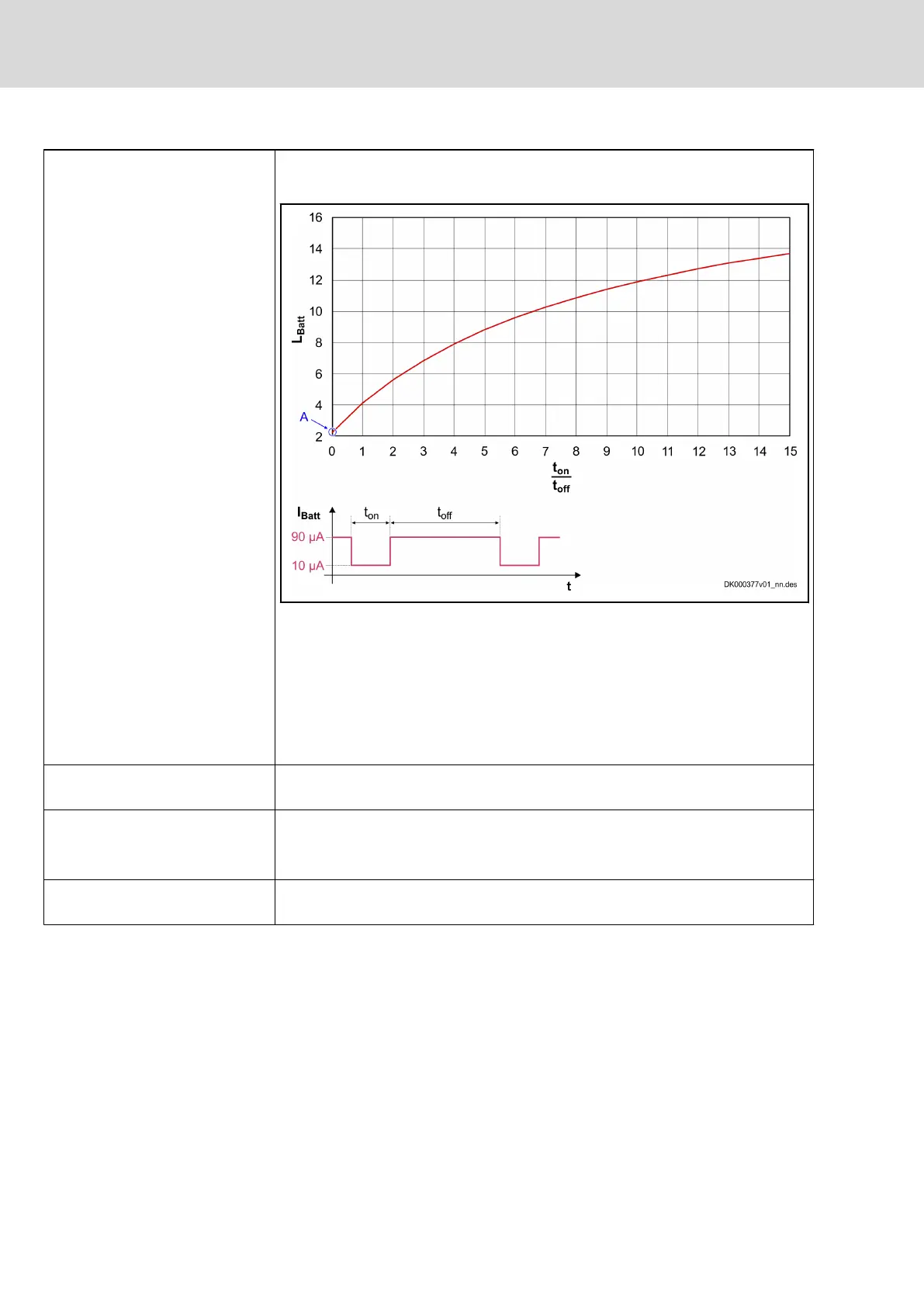

Fig. 8-18: Battery lifetime depending on load
Example: With a relation t
on
/t
off
= 5 (every day, drive controller is on for 20 hours and
off for 4 hours), the battery lifetime is approx. 9 years.
Refresh resistor 10 ohm; the refresh resistor is used to prepare the battery before the battery is used
in the battery box "SUP-E01-MSM-BATTERYBOX".
Documentation
(DOZ-SUPPL*-SUP-E03-DKC-
MA01-D5-P)
Information in 5 languages on the refresh procedure of the battery and on how to
connect the battery and the base load resistor.
Base load resistor The base load resistor (500 kOhm) is only relevant to EcoDrive Cs drive controllers
(when they are operated without the SUP-E01-MSM-BATTERYBOX battery box).
Tab. 8-6: SUP-E03-DKC*CS-BATTRY - content
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P262/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
