Refresh
Before using a new battery, you always have to carry out the so-called "re‐
fresh" procedure:
A Refresh resistor
B Mating connector
C Connector
D Battery

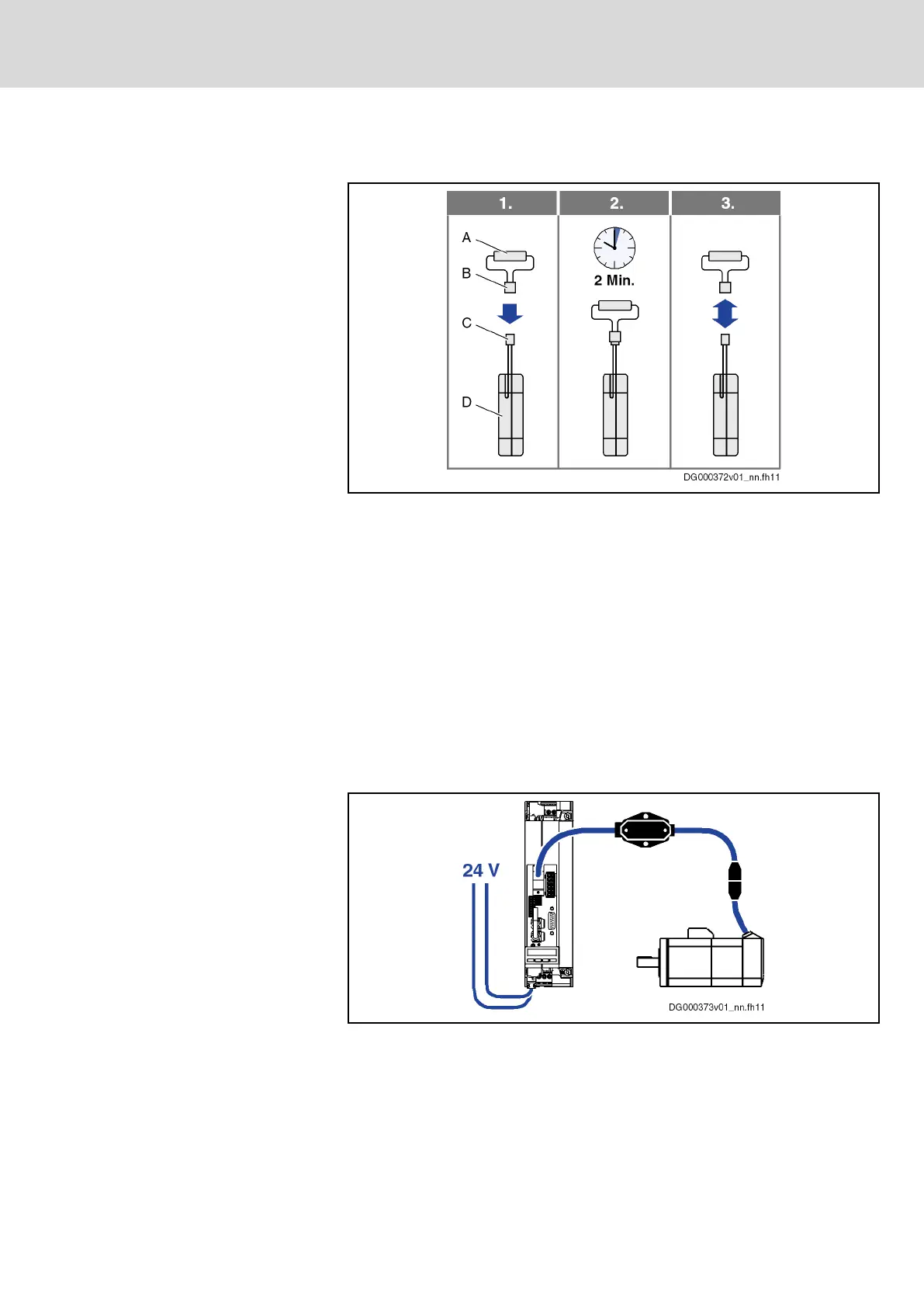

Fig. 8-19: Battery refresh procedure
1. Connect connector of battery to mating connector at refresh resistor.
2. Wait 2 minutes.
3. Disconnect connector from mating connector.
Replacing the battery
To maintain the absolute value encoder position when the battery is replaced,
the following requirements have to be fulfilled:
● The control voltage at the drive controller has been switched on
● The encoder has been connected to the drive controller via the encoder
cable
Fig. 8-20: Control voltage switched on and encoder connected
DOK-INDRV*-HCS01******-PR05-EN-P Bosch Rexroth AG 263/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
