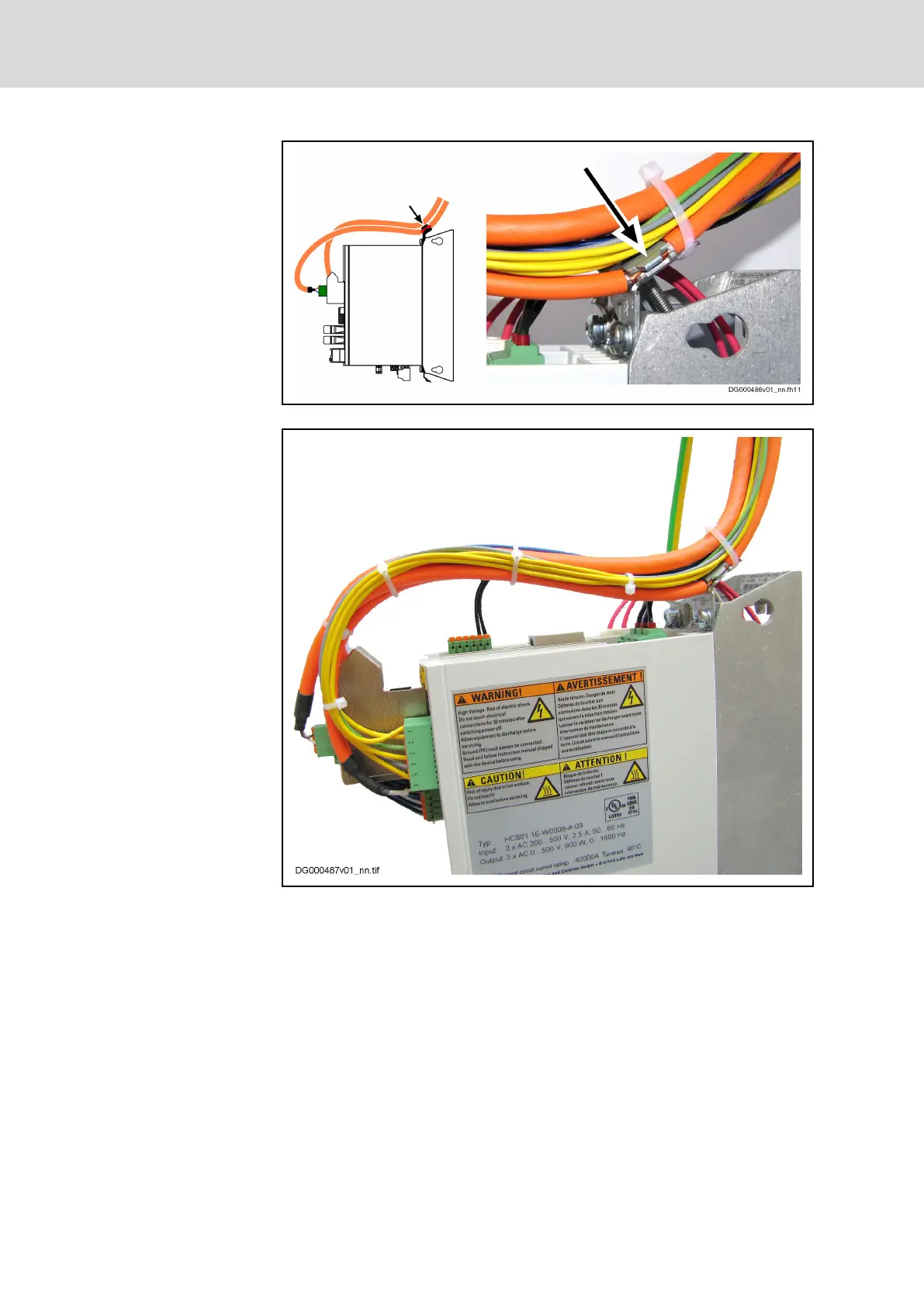

Fig. 8-25: Shield Connection of Shielded Lines at the Top of the Device
Fig. 8-26: Example of a complete wiring
Bosch Rexroth AG DOK-INDRV*-HCS01******-PR05-EN-P272/341
Rexroth IndraDrive CsDrive Systems with HCS01
Cables, accessories, additional components
