3.5 LUBRICATION

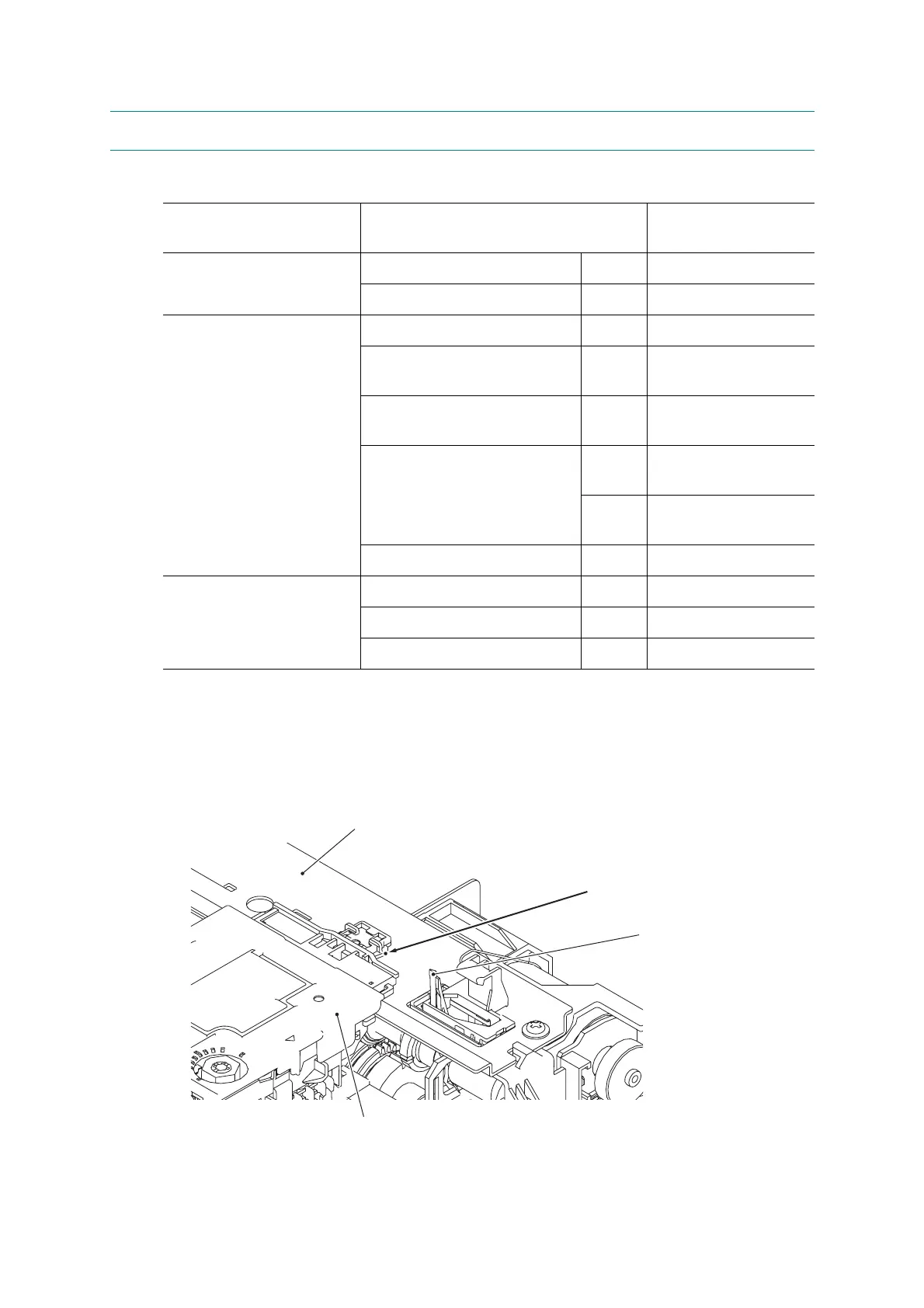

Apply the specified lubricants to the lubrication points as shown below.
 Head/carriage unit
Apply a 1.5 mm diameter ball of grease (Permalub BAN-5) to the lubrication point below.
Lubricant type
(Manufacturer)
Lubrication points
Lubricant amount
per point
Permalub BAN-5
(Nippon Koyu)
Head/carriage unit 1 1.5 mm diameter ball
Switching lever guide 1 3 mm diameter ball
FLOIL BG1319
(Kanto Kasei)
Leveller roller (LR) ASSY 2 1 mm diameter ball
CR guide rail (top face) 24 2 mm diameter ball
(Total of 98
±31 mg)
CR support chassis (top face) 24 2 mm diameter ball
(Total of 98
±31 mg)
CR support chassis
(inner side of rear upright edge)
30 2 mm diameter ball
(Total of 123
±38 mg)
(inner side of front upright edge) 30 2 mm diameter ball
(Total of 123
±38 mg)
CR guide rail (bottom face) 6 1 mm diameter ball
Molykote EM-30LP
(Dow Corning)
Platen 3 1 mm diameter ball
T1 paper pull-in roller L 2 1 mm diameter ball
T2 paper pull-in roller L 2 1 mm diameter ball
Switching leve
r
(3_115)
Head/carriage unit
CR guide rail
Apply grease here.
