Brother MFC-J6510DW

3-14
Confidential

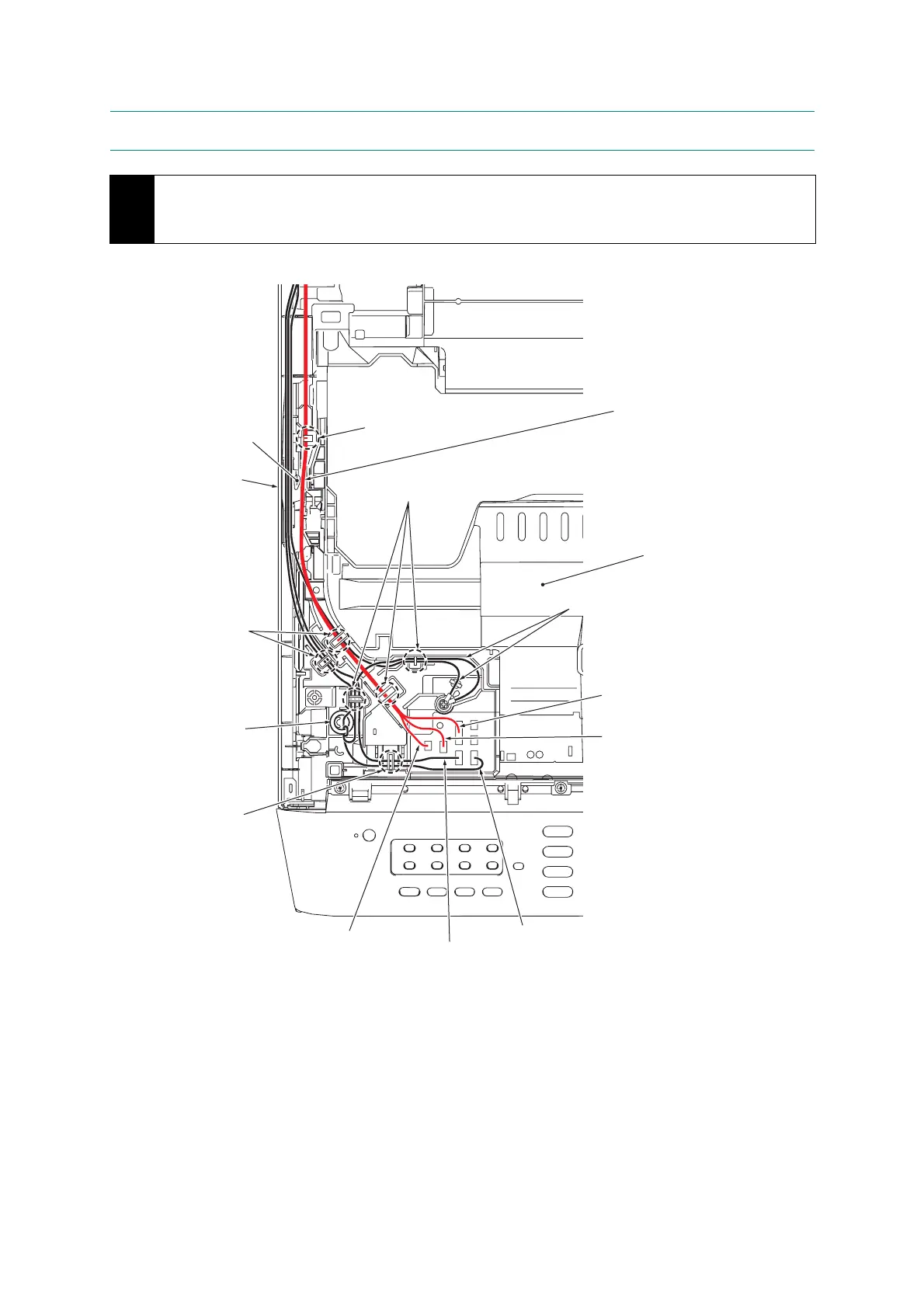

3.7 HARNESS ROUTING
1
Upper cover: ADF motor harness, CIS motor harness, Document detection/width & scanning position
(first side) sensors harness, Document scanning position sensor harness (second side)* and ADF cover
switch harness
(3_021)
Route the bundle of
t
he ADF motor harness
and its grounding wire,
t
he CIS motor harness,
and the loose grounding
w
ire on this left side.
Cable guide
Cable guides
Cable guides
Ferrite core
Cable guide
ADF cover sensor harness
CIS motor harness
ADF motor harness
* For duplex scanning models
Document scanning position
sensor harness (second side)*
Document detection/width &
scanning position (first side)
sensors harness
Grounding wires
Route the bundle of
the document detection/
width & scanning position
(first side) sensors harness,
the document scanning position
sensor harness (second side)*,
and the ADF cover sensor
harness on this right side.
Upper cover
Boss
