Brother MFC-J6510DW

2-3
Confidential
2.2 OVERVIEW

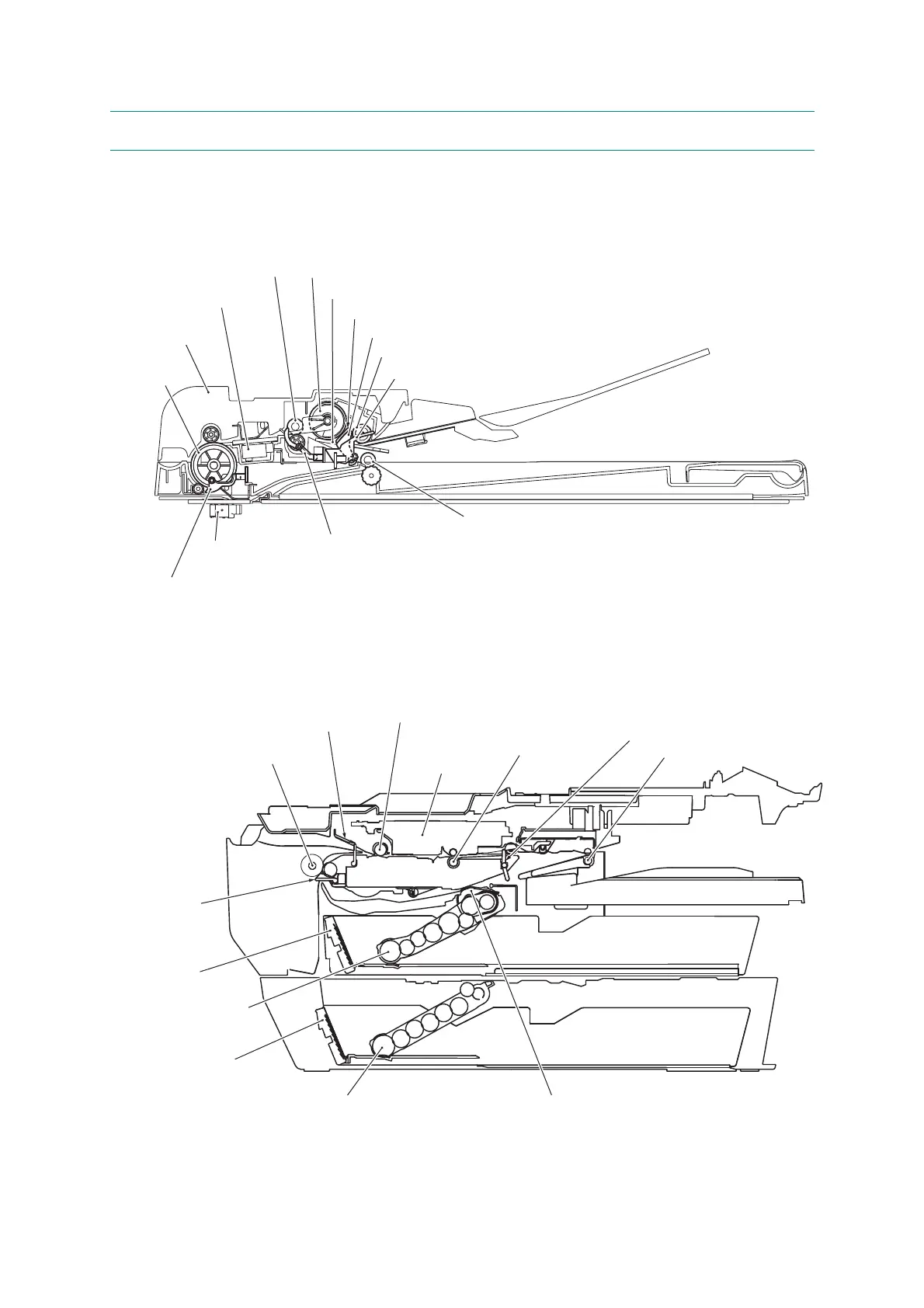

2.2.1 Cross-section Drawings and Components
 Document scanning and feeding mechanisms
 Printing and paper feeding mechanisms
Second side scanning
CIS unit
ADF cover
Document
feed roller 2
Document scanning position detection actuator
(for first side scanning)
First side scanning
CIS unit
Document scanning position detection actuator
(for second side scanning)
Document ejection roller
(Right)
(Left)
ADF cover switch actuator
Document detection actuator
Document pull-in roller
Document width detection actuator
Separation rubber
Document separation roller
Document feed roller 1
Paper feed
sensor actuator
T1 paper pull-in rollers
T1 bank ASSY
T2 bank ASSY
T2 paper pull-in rollers
DX roller
Platen
Head/carriage
unit
Intermediate roller
Switchback roller
Switchback paper detection actuato
r
Recording paper
ejection roller
Paper feed roller
Registration sensor actuator
(Rear)
(Front)
