Brother MFC-J6510DW

2-8
Confidential

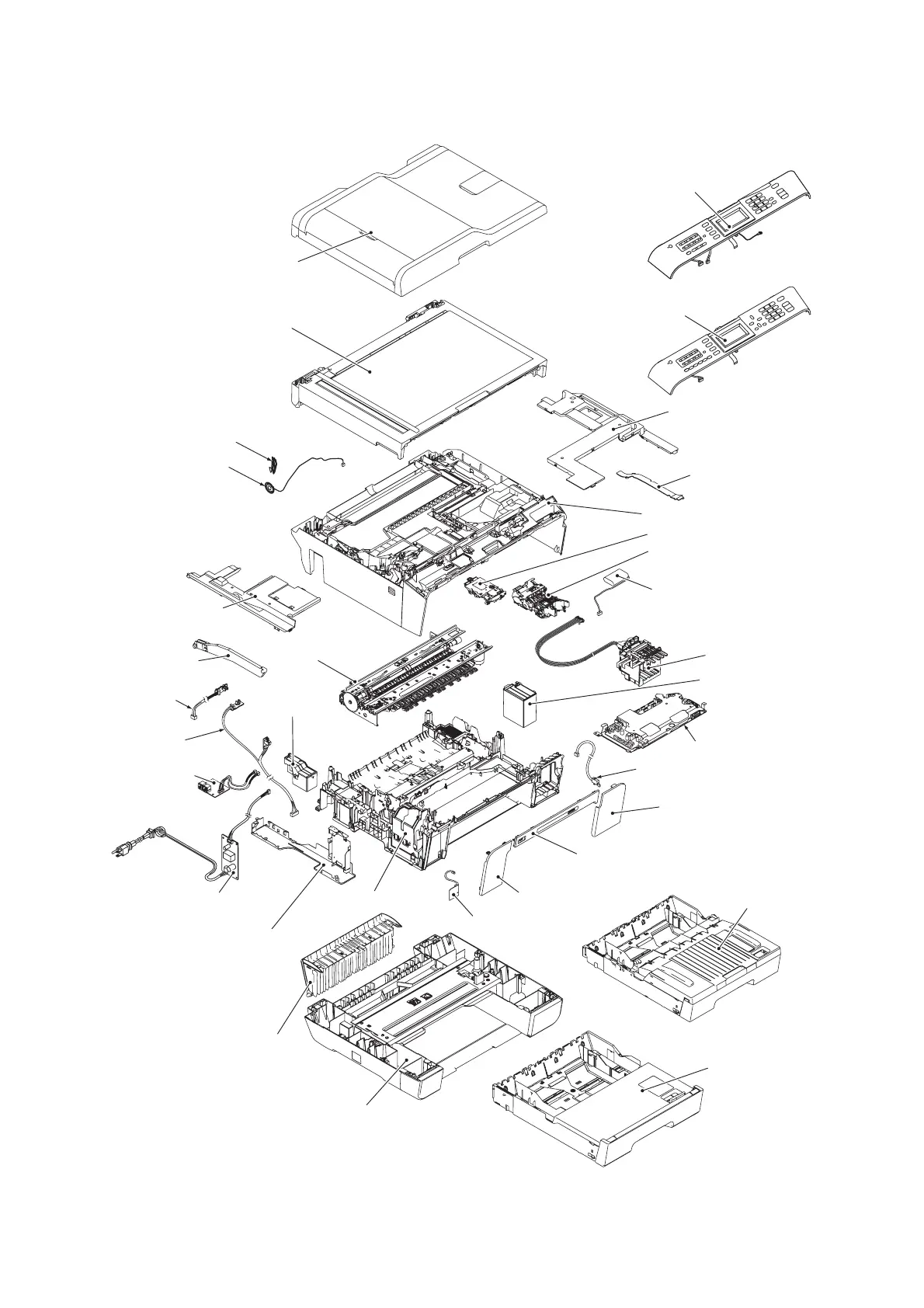

2.2.5 Components
* For models with paper tray #2
Control panel ASSY
with touch panel
(COMPONENTS)
ADF & document cover ASSY
Scanner cover
(Scanner unit)
Speaker spring
Speaker
Harness cover
Engine
unit
Scanner cover
support
Registration
sensor PCB
ASSY
PF encoder/
PF sensor
harness unit
MJ PCB ASSY
Flushing box
Power supply PCB
ASSY
Lower MJ/PS
shield
Lower cover
Jam clear cover
LT cover*
Paper tray #2
(Lower tray)*
Paper tray #1
Wireless LAN PCB
Front cover
Media module cover
Ink cartridge cover
Ink cartridge cover switch
Main PCB ASSY
Ink absorber box
Ink refill ASSY
Backup battery
Head/carriage unit
Maintenance unit +
ASF drive ASSY
Upper cover
Flat cable support
CIS flat cable cover
Control panel ASSY
without touch panel
